NEW BAILEIGH PT-105HD-W-V2

BAILEIGH (NEW) MODEL PT-105HD-W-V2 CNC PLASMA
TABLE

5' X 10' CAPACITY
315 IPM TRAVEL SPEED
60" X 140" TABLE
1" MILD STEEL
220 VOLT, 1 PHASE SERVO MOTOR

WATER BATH FOR COOLER CUTTING LESS AIRBORN MESS
AUTOMATIC HEIGHT DETECTION ON THE Z AXIS
- FOR PERFECT CUTS IN CORRUGATED/UNEVEN MATERIAL

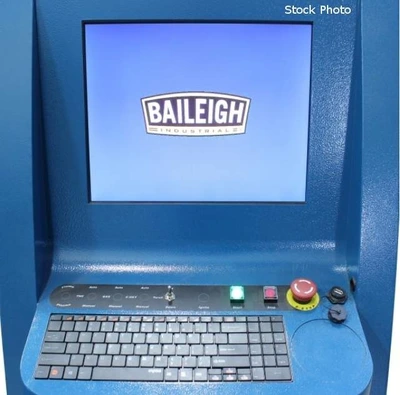

STURDY PODIUM WITH LARGE CONSOLE SCREEN AND KEYPAD
- CONTROL OF X, Y, AND Z AXIS MOVEMENT
- PRE-LOADED LIBRARY OF SHAPES (CAN RESIZE/ALTER)
EASY-TO-LEARN DESIGN SOFTWARE
- CAN BE LOADED ONTO ANY BASIC COMPUTER
PANASONIC BRUSHLESS SERVO MOTORS
INDUSTRIAL-GRADE GANTRY TRAVEL SYSTEM
GANTRY CAN MOVE OUT OF THE WAY DURING LOADING
HIGH GANTRY
AXES RIDE ON HEAVY-DUTY HIWIN SQUARE RAILS
WIPERS ON RAILS KEEP WELDING DUST OUT OF THE SLIDE
FULLY-WELDED BOXED TUBING CONSTRUCTION
STEEL FRAMEWORK
80% PRE-BUILT PLASMA TABLE
1-YEAR PARTS WARRANTY
LIFETIME TECHNICAL SUPPORT BY PHONE

PLASMA TORCH SYSTEMS SOLD SEPARATELY
Power: 220 (Single)
