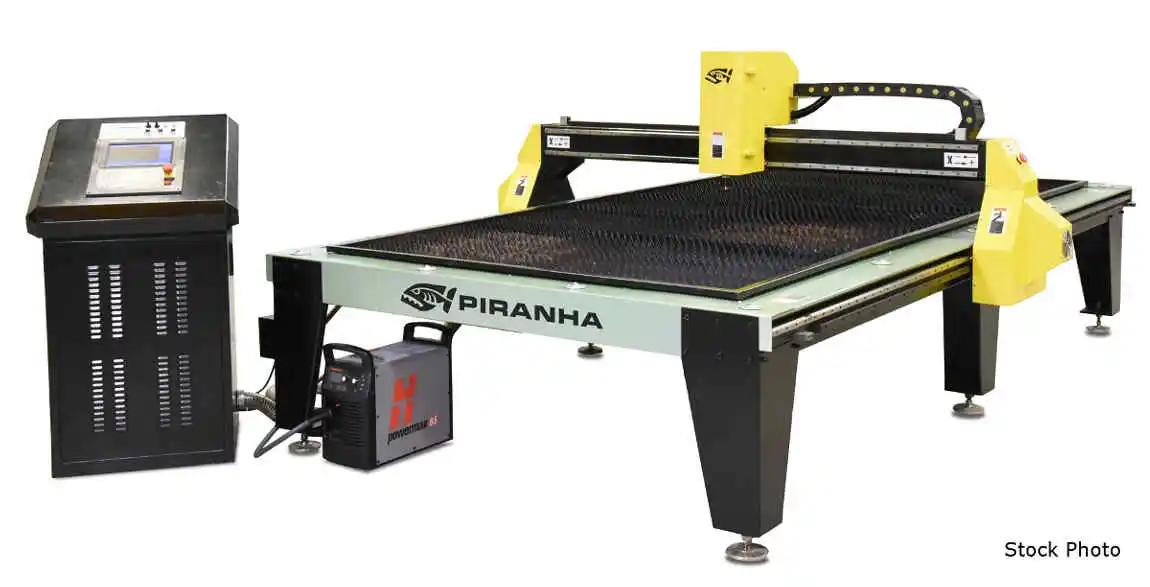

NEW PIRANHA B404

PIRANHA (NEW) MODEL B404 PLASMA TABLE WITH
HYPERTHERM POWERMAX 85 PLASMA SYSTEM

4' X 4' CUTTING AREA
314 IPM RAPID SPEED
STARFIRE CNC CONTROL
DRIVE MOTORS
- X AXIS - 2 STEPPER MOTORS
- Y AXIS - STEPPER MOTOR
- TORCH HEIGHT CONTROL - STEPPER MOTOR
DRIVE SYSTEM
- X AXIS - RACK AND PINION ON EACH SIDE
- Y AXIS - RACK AND PINION
- Z AXIS - BALL SCREW
TORCH CONTROL
- ARC VOLTAGE WITH INITIAL HEIGHT SENSING
PNEUMATIC BREAKAWAY TORCH PROTECTION
WATER TABLE

HYPERTHERM POWERMAX 85
- 24 IPM WITH 3/4" THICK MILD STEEL

PRONEST LT PROGRAMMING SYSTEM
- 2D CAD DRAWING
- DFX IMPORTING
- INTEGRATED SHAPE LIBRARY
- DRAG AND DROP NESTING

FEATURES
- RUGGED BOLTED TABLE, FACTORY ASSEMBLED
- WELDED STEEL BRIDGE
- HIGH ACCURACY LINEAR GUIDES AND BEARINGS
- DUAL SIDE DRIVE - GANTRY DRIVEN ON BOTH SIDES
- CNC CONTROL WITH 10.4" HI RES COLOR LCD MONITOR
SHAPE LIBRARY WITH 20 CONFIGURABLE SHAPES
8 MB MEMORY
USB INTERFACE
- STEPPER MOTORS AND DRIVES
STEPPER MOTORS ON X-AXIS AND Y-AXIS
8,000 MM/MINUTE MAXIMUM TRAVERSE SPEED
- WATER TABLE SLAG COLLECTION
- MICROSTEP PROGRAMMABLE TORCH HEIGHT CONTROL
- BREAKAWAY TORCH MOUNTING TO PREVENT PART
TIP-UPS

OPTIONS AVAILABLE - PRICE ON REQUEST
- PLASMA GREEN RUST INHIBITOR BOICIDE - 5 GAL.
- AIR DRYER UNIT
- 3-STAGE FILTER SYSTEM
- CONSUMABLE KITS
- ON-SITE TRAINING
- HYPERTHERM PLASMA SYSTEMS
POWERMAX 45XP
POWERMAX 65
POWERMAX 105
POWERMAX 125
- PRONEST LT OPTIONAL PACKAGES
LT ESSENTIALS
LT UNLIMITED
DESIGN2FAB6

OTHER B SERIES MODELS AVAILABLE
- B408 4' X 8'
- B510 5' X 10'
Power: 230 (Single)
