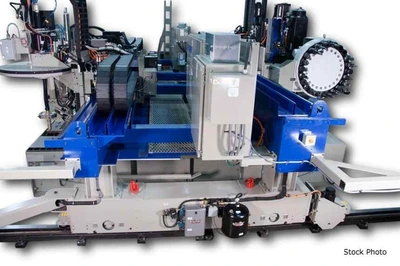

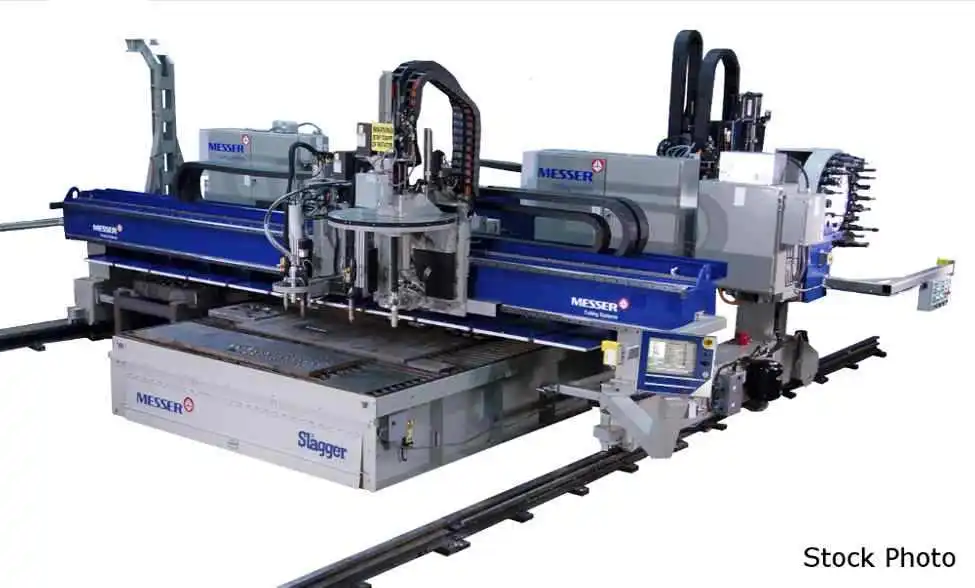

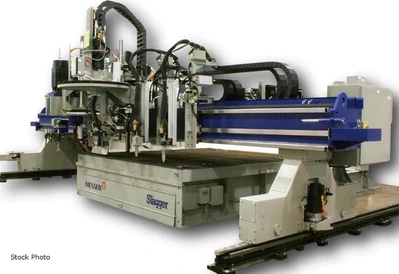

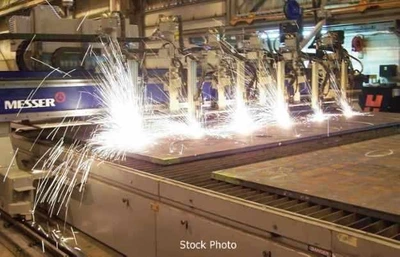

NEW MESSER TMC4500 DB

MESSER (NEW) MODEL TMC4500 DB DUAL BOX-BEAM GANTRY
CUTTING MACHINE

12'-28' CUTTING WIDTHS
UP TO 200' CUTTING LENGTHS
CUTS MATERIAL FROM 26 GA TO UP TO 12" THICK PLATE
CUTS MILD STEEL, STAINLESS STEEL, ALUMINUM
+/- 0.015" MOTION ACCURACY IN 72" TRAVEL
+/- 0.010" REPEATABILITY
1,400 IPM POSITIONING SPEED CAPACITY
115 LB/YD CRANE RAIL FOR X AXIS MOTION
0.002" TOLERANCES
MASSIVE DUAL GANTRY PROCESS BEAMS
- SUPERIOR BENDING AND TORISIONAL STRENGTH
PRECISION LINEAR Y-AXIS WAY SYSTEM
SERVICE POWER TRACK IN BOTH X AND Y AXES
SURESTOP COLLISION SENSOR
HIGH-SPEED PROGRAMMABLE LIFTERS
- 880 IPM PLASMA
- 300 IPM OXYFUEL
MADE IN USA TO MACHINE TOOL ISO 230-2 STANDARDS
UL/CUL

GLOBAL CONTROL PLUS WINDOWS INTERFACE
- WINDOWS-BASED OPERATING SYSTEM
- EASY-TO-USE OPERATOR INTERFACE
- 24" TOUCH SCREEN
- MULTIPLE PROCESS DATABASE
- CUSTOM SHAPE LIBRARY
- TRUE SHAPE NESTING
- PRODUCTIVITY MONITORING
- CONTROL SLIDE MOUNT SYSTEM
- LEFT OR RIGHT HAND MOUNTED CONTROL CONSOLE THAT
SWIVELS AND TILTS FOR OPERATOR COMFORT
- VIRTUAL SERVICE REMOTE DIAGNOSTICS/CONSULT

OPTIONS AVAILABLE - PRICE ON REQUEST
- PRECISION PLASMA UP TO 800 AMPS
- PLASMA BEVEL UNITS
INFINITY
DELTA
MANUAL PLASMA
STRIPPING BEVEL UNIT FOR THE X-AXIS
- OXYFUEL BEVEL UNITS
SINGLE POSITION
TRIPLE POSITION
CONTOUR
DAF/L
- TORCHES
TURBO FLAME
ALFA OXYFUEL
- LIFTERS
SL SERIES FOR OXYFUEL
PL-1 PLASMA LIFTER W/SURESTOP COLLISION SENSOR
SENSOMAT-PAN
- ADVANCED OXYFUEL TECHNOLOGY WITH OMNIFLOW
AUTOMATED GAS CONTROL SYSTEMS
- AUTO TORCH SPACE WITH PROGRAMMABLE TORCH
SELECTION
- FT100 TORCH IGNITOR
- AUTOMATIC HEIGHT CONTROL FOR OXYFUEL SYSTEMS
- DUAL HI-LO FOR OXYFUEL
- PLATE MARKERS
PLASMA
AIR SCRIBE
ZINC POWDER
INK-JET
TELESIS PINSTAMP
- VIDEO CAMERAS
DIGITAL AND MANUAL PLATE ALIGNMENT
- LASER POINTER
- GLOBAL REPORTER
- PROGRAMMING AND NESTING SOFTWARE

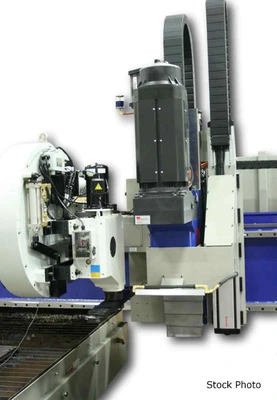

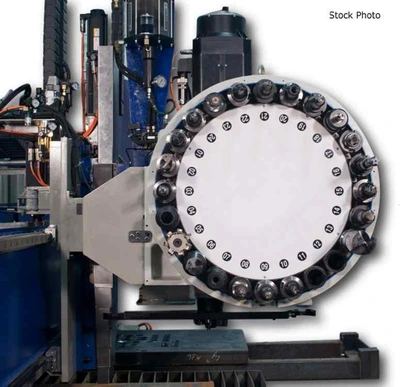

- DRILLING UP TO 4" DIAMETER
- TAPPING UP TO 1-1/2" DIAMETER
- OPERATOR GLARE CURTAIN
- PULL CORD
- PHOTO EYE E-STOPS
- PLASMA AIR BOOSTER
- ROTARY RAIL CLEANERS WITH RACK AIR PURGE
- OPERATOR RIDING PLATFORM
- ZONED AND DUCTED EXHAUST TABLES INCLUDING
SELF-CLEANING SLAGGER
- ROTARY PIPE AND TUBE CUTTING SYSTEM
- MESSER DUST COLLECTION SYSTEM
- EXHAUST DUCTING KIT
- MATERIAL HANDLING SYSTEMS
- SENTRY SERVICE PREVENTATIVE MAINTENANCE PROGRAM
- VISUAL SERVICE
ADDS SENSE OF HEIGHT TO TROUBLE SHOOTING PROCESS
