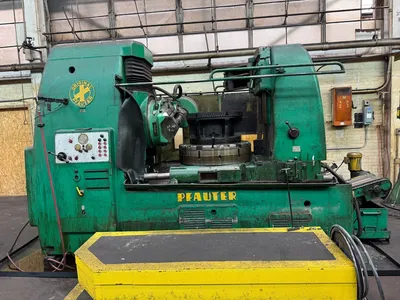

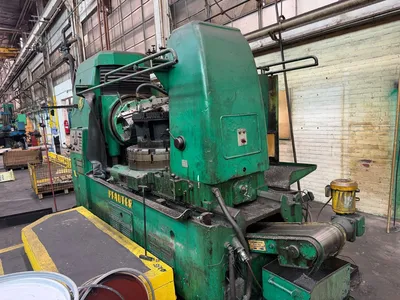

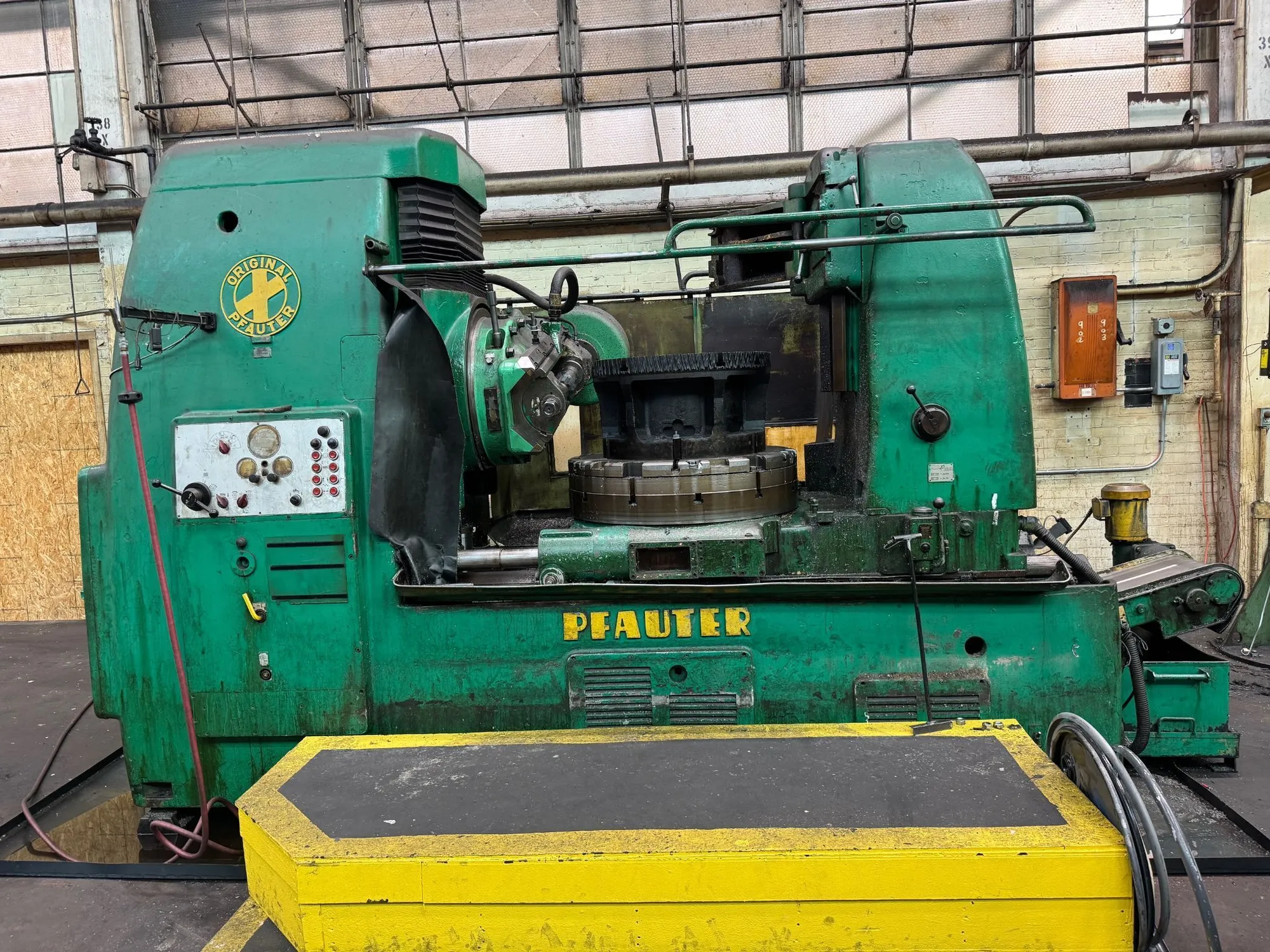

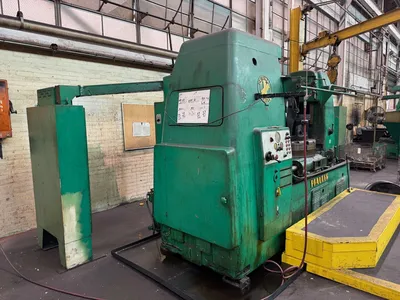

Used PFAUTER P1250 Vertical Gear Hobber available. Handles workpiece diameters up to 1,250 mm with a hob speed of 200 RPM. Equipped with a hob arbor, chip conveyor, coolant system, and more. Ideal for precise gear manufacturing. Suitable for large-scale operations.
| Maximum Workpiece Diameter | 1,250 mm | 49.213" |
| Horz/Vert | Vert | Vert |
| Maximum Diametral Pitch | 2 | 2 |
| Module | 12 | 12 |
| Axial Travel | 585 mm | 23.032" |
| Maximum Hob Diameter | 220 mm | 8.6614" |
| Hob Arbor Size | 2" | 50.8 mm |
| Hob Speed | 200 RPM | 200 RPM |
| Table Diameter | 950 mm | 37.402" |
| Control Manufacturer | Conventional | Conventional |
| Dimensions | 172" L x 71" W x 99" H | 172" L x 71" W x 99" H |
| Weight | 31,000# | 31,000# |
Specifications:
Maximum Gear Diaemter: 1250 mm
Module: 12
Hobbing Length: 585 mm
Feed Range:
-Axial: 0,30 – 6 mm/min
-Radial: 0.09 – 1.8 mm/min
-Tangential: 0.126 – 2.53 mm/min
Hob Spindle Speeds: 32 – 200 RPM
Maximum Tool Length: 260 mm
Maximum Tool Diameter: 220 mm
Minimum Number of Milling Teeth: 12
Weight: 14,000 kg

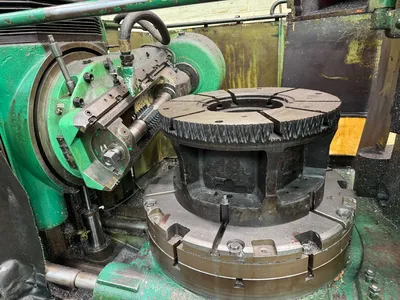

40" Table

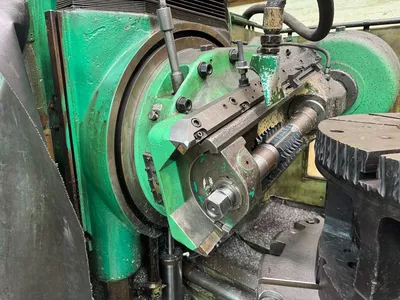

Hob Arbor
Differential
Change Gears
Risers
Swing Away Tailstock
Chip Conveyor
Coolant

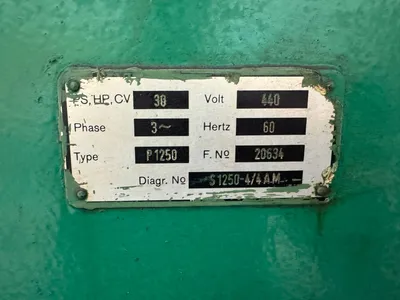

440-3-60 Electrics
Diag. - S1250 - 4 - 4 AM
