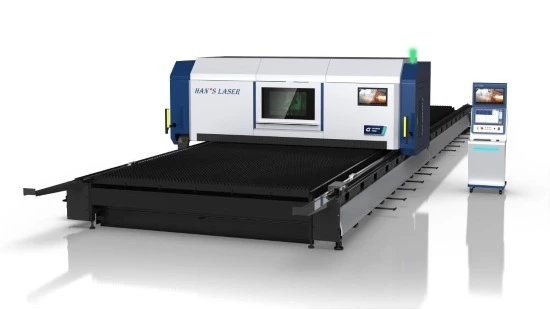

NEW HANS LASER G13030S PRO-G

HANS LASER (NEW) MODEL G13030S PRO-G FIBER LASER 40KW HANS RESONATOR

42' 11.7" X 10' 5" PROCESSING AREA
39' 4" X 6' 6" BEVEL CUTTING AREA
0 TO 45 DEGREE BEVEL A-AXIS, B-AXIS( CUTTING ANGLE
40 KW HANS FIBER RESONATOR WITH WATER CHILLER
516" X AXIS (13,100 MM)
126" Y AXIS (3200 MM)
13" Z AXIS (350 MM)
+/- 0.0019" X AND Y AXIS POSITION ACCURACY (0.05 MM)
+/- 0.0011" X AND Y AXIS REPEATABILITY (0.03 MM)
+/- 0.1 DEGREE A AND B AXIS POSITIONING ACCURACY
3149"/MINX/Y AXIS MAXIMUM POSITIONING SPEED
41,226 LBS MAXIUMUM LOAD OF WORKBENCH (18,7000KG) (2.36" WHOLE PLATE (60 MM))

FEATURES
- HIGH SPEED FIBER LASER CUTTING MACHINE - LASERSOURCE
- BEVEL CUTTING HEAD
- WATER CHILLER
- REGULATED POWER SUPPLY
- NESTING SOFTWARE
- WIRELESS HANDHELD BOX
- CNC SYSTEM
- PNEUMATIC SYSTEM
- TRANSMISSION SYSTEM
- CAPACITIVE VERTICAL TRACKING SYSTEM

OPTIONS INCLUDED
- TOPSINN 15KW DUST COLLECTOR
- POWER STABILIZER
- TRANSFORMER
- MIX-M GAS MIXER
Power: 380V (3-Phase)
