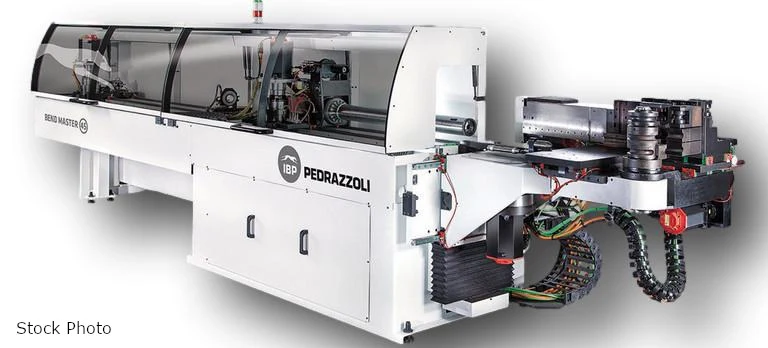

NEW PEDRAZZOLI BEND MASTER 65

PEDRAZZOLI (DEMO) MODEL BEND MASTER 65 HIGH-SPEED
ELECTRIC MANDREL BENDER

2.5" X .083 CAPACITY
CW AND CCW BENDING
9.8" MAXIMUM CLR CW
9.4" MAXIMUM CLR CW-CCW
1.87' MINIMUM INSIDE RADIUS W/STANDARD SPINDLE
VARIABLE RADIUS BENDING
187 DEGREE/183 DEGREE MAXIMUM BEND ANGLE
1.5-2 X DIAMETER MIN DISTANCE BETWEEN BENDS
6.6 SECTION MODULUS CM3
20" HORIZONTAL HEAD TRAVEL
11.8" VERTICAL HEAD TRAVEL
1 NUMBER OF BEND HEADS
PUNCHING AVAILABLE
10 + 1 OPTIONAL ELECTRICALLY CONTROLLED AXES
FANUC DRIVE CONTROLLERS
+ OR -.05 MM PRECISION OF ELECTRIC AXIS
28"/SEC CARRIAGE SPEED
99 DEGREES/SEC BEND ARM SPEED
600 DEGREES/SEC TUBE ROTATION SPEED
3+ MAXIMUM TOOL STACKS
INTELLIGENT MOTION SOFTWARE (IMS)
WEBCAM
159" MAX TUBE LENGTH ON FRONT STOP
224" MAX TUBE LENGTH ON REAR STOP
48" HEIGHT OF WORK PLANE
480 VOLT, 50kw

FEATURES
- CLOCKWISE AND COUNTER-CLOCK WISE BENDING
- VARIABLE AND MULTI-RADIUS BENDING IN THE SAME
CYCLE
- COMPACT BENDING HEAD DESIGN ACCOMMODATES MOST
APPLICATIONS
- INTUITIVE INTELLIGENT MOTION SOFTWARE (IMS)
TOUCHSCREEN CONTROL
- ELECTRIC AXIS FOR GREATER PRECISION
- FANUC DRIVE CONTROLLERS FOR IMPROVED
RELIABILITY
- INNOVATIVE TUBE STOP ALLOWS POSITIONING
FROM REAR OF CARRIAGE (OPTIONAL)
- AUTOMATIC ADJUSTMENT OF TOOLS
- BOOST FOR TIGHT RADIUS BENDING W/ SYNCHRONIZED
CONTROL OF AXIS
- TORQUE CONTROLLED POSITIONING OF CARRIAGE ON
INCLINE TOOTH PRECISION GEAR RACK
- CONTROLLED TORQUE OF CLAMP DIE AND PRESSURE DIE
- AUTOMATIC LUBRICATION WORK PIECE
- RAPID COUPLING SYSTEM FOR QUICK MANDREL ROD
INSTALLATION
- SAFETY LIGHT BARRIERS WITH PROGRAMMABLE WORK
ZONE
- CENTRAL LUBRICATION OF GUIDES AND BALL SCREWS
- INTEGRATED PART HANDLING OPTIONS AVAILABLE
Power: 480 (3-Phase)
