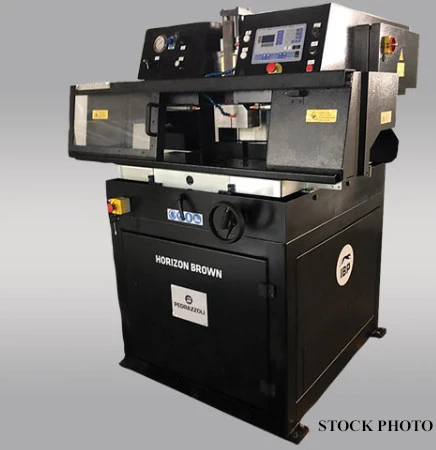

NEW PEDRAZZOLI HB 450 SA

PEDRAZZOLI (DEMO) MODEL HB 450 SA SEMIAUTOMATIC
CIRCULAR UPCUT COLD SAW

CUTTING CAPACITY AT 45 DEGREES RIGHT/LIGHT
- 5.9" ROUND
- 4.7" SQUARE
CUTTING CAPACITY AT 0 DEGREES
- 5.9" ROUND
- 5.1" SQUARE
CUTTING CAPACITY AT 60 DEGREES
- 5.5" ROUND
- 4.3" SQUARE
4.0 kW
13-77/24-144 RPM (SPECIFY WHEN ORDERING)
6.9"
450 MM SAW BLADE

FEATURES
- TABLE ADJUSTS 0-170 DEGREES W/THREE STOPS
AND LOCKS
- HEAVY-DUTY PRECISION GEAR BOX W/VARIABLE BLADE
RPM THROUGH INVERTER DRIVE
- SELF BALANCING VALVE FOR SMOOTH FORWARD
MOVEMENT OF BLADE
- DIGITAL ADJUSTMENT OF BLADE STROKE
- RPM 13 TO 77 OR 24-144 DEPENDING ON MODEL
- ACCEPTS SAW BLADES TO 450MM
- COOLANT SYSTEM TO EXTEND BLADE LIFE
- ADJUSTABLE VERTICAL CLAMPING OF MATERIAL
- SAW ANGLE ADJUSTS INSIDE OF TABLE BASE VIA
HAND WHEEL FOR MITER CUTTING
- HEAVY-DUTY METAL BASE WELDED FOR RIGID
REINFORCEMENT
- OPTIONAL IN-FEED AND EXIT SUPPORT TABLES WITH
STOCK STOP FOR SAWING REPETITIVE PARTS
Power: 240/480 (3-Phase)
