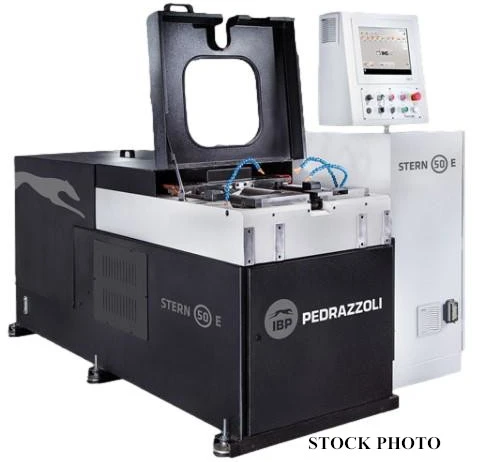

NEW PEDRAZZOLI STERN BROWN 50
Overview
Specifications
| Dimensions | 95 X 58 X 67 | 95 X 58 X 67 |
|---|---|---|
| Weight | 5,500 | 5,500 |
PEDRAZZOLI (USED) STERN BROWN 50 ELECTRO-HYDRAULIC
TUBE ENDFORMING MACHINE
2.125" MAXIMUM DIAMETER
.156" MAXIMUM WALL THICKNESS
6.7" MAXIMUM END FORM DEPTH
4 ELECTRICALLY CONTROLLED AXES
15 POWERED TOOL STATIONS
4.2"/SEC END FORM SPEED
.05 MM POSITIONING PRECISION
150 kN WORKING THRUST
12 Nm TOOL DISK ROTATION TORQUE
6.7" JAW LENGTH
11.8" MAXIMUM WORK UNIT TRAVEL
7.7" STANDARD TOOL BLOCK DIMENSION
INTELLIGENT MOTION SOFTWARE (IMS)
WEBCAM
FEATURES
- THREE AXIS WITH DIGITAL ABSOLUTE BRUSHLESS
MOTORS CONTROL TOOLING ROTATION, TURRET ROTATION
AND TOOLING ADVANCE
- WORKING MOTION DRIVEN WITH BALL SCREW AND
BEARING DESIGNED FOR HEAVY LOADS
- LINEAR FORMING AND MACHINING WITH HYDRAULIC
MOVEMENT
- UP TO FIFTEEN WORK TOOLING STATIONS
- ALL TOOLING STATIONS ARE CAPABLE OF ROTATION
FOR 360 DEGREES END FORMING
- TOOL STATIONS ROTATE TO MACHINE CENTER FOR
GREATEST EFFICIENCY AND FASTER TOOL CHANGES
- VISE FEATURE MANUAL OPENING LEVER FOR
PRE-CLAMPING OF VARIOUS PART SHAPES
- CLAMPING UNITS DESIGNED TO WORK IN TANDEM OR
INDEPENDENTLY
- WEBCAM FOR REMOTE ASSISTANCE
- USER-FRIENDLY INTELLIGENT MOTION SOFTWARE
- REQUIRES MINIMUM FLOOR SPACE
Power: 480 (3-Phase)
