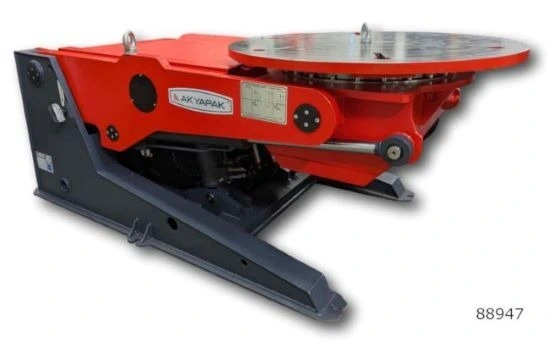

NEW AKYAPAK SRH-7000

AKYAPAK (NEW) MODEL SRH-7000 WELDING POSITIONER

15,400 LBS CARRYING CAPACITY
5.9" MAX FRONTAL LOADING CENTER
5.9" MAX SIDE LOADING CENTER
0-110 MAX TABLE TILTING
380 VOLT INPUT POWER
3 HP ROTATION MOTOR
3 HP HYDRAULIC UNIT MOTOR
0.1 RPM MIN TABLE ROTATION MOTOR
0.9 RPM MAX TABLE ROTATION MOTOR
51.2" TABLE DIAMETER
5-72# T-SLOTS
110.2" LENGTH OVERALL
40.9" MIN HORIZONTAL TABLE HEIGHT
68.5" MAX HORIZONTAL TABLE HEIGHT
33.5" HEIGHT OF HORIZONTAL ROTATION
61" WIDTH
500 AMP EARTHING
62" FROM FLOOR TO CENTER OF TABLE @ 90 DEGREES TO FLOOR

STANDARD FEATURES
- ADJUSTABLE ROTATING SPEED
- REMOTE CONTROLLER W/5 METER CABLE LENGTH
- DIGITAL SPEED INDICATOR ON THE CONTROLLER PANEL
FOR MONITORING ROTATION
- WELDING - CHASSIS MECHANISM
- MOTORS WITH BRAKE AND FORCED FAN COOLING

OPTIONS AVAILABLE - PRICE ON REQUEST
- PROGRAMMABLE AUTOMATION CONTROL
- TO RECORD THE POSITIONS AND PROGRAMMABLE MAIN
STEPS
- SYNCHRONOUS OPERATION W/COLUMN AND BOOM SYSTEMS
- WIRELESS REMOTE CONTROLLER
- SPECIAL INSULTIONS FOR WORKSITE CONDITIONS
Power: 480 (3-Phase)
