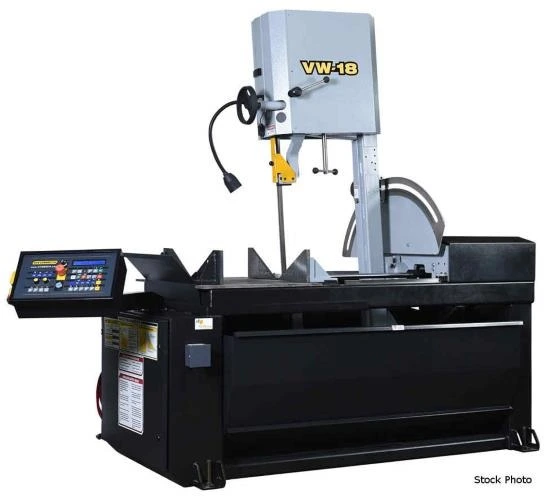

NEW HYDMECH VW-18-2

HYDMECH (NEW) MODEL VW-18-2 SEMI-AUTOMATIC
VERTICAL MITERING BANDSAW

CAPACITY AT 90 DEGREES
- 22" X 18" RECTANGLE, 12.5" ROUND
- 17.5" ROUND WITH OPTIONAL VISE INSERTS
CAPACITY AT 45 DEGREES
- 15" X 18" RECTANGLE, 12.5" ROUND
CAPACITY AT 60 DEGREES
- 10.25" X 18" RECTANGLE, 10.25" ROUND

CAPACITY AT 90 DEGREES WITH 3 DEGREE CANTED HEAD
- 20.75" X 18" RECTANGLE, 12.5" ROUND
- 17.5" ROUND WITH OPTIONAL VISE INSERTS
CAPACITY AT 45 DEGREES WITH 3 DEGREE CANTED HEAD
- 14" X 18" RECTANGLE, 12.5" ROUND
CAPACITY AT 60 DEGREES WITH 3 DEGREE CANTED HEAD
- 9.5" X 18" RECTANGLE, 9.5" ROUND

1.25" X 16' 3" BLADE
5 HP BLADE DRIVE
480 VOLTS, 3 PHASE
65 - 385 SFM BLADE SPEED
4 GALLON HYDRAULIC TANK CAPACITY
12 GALLON COOLANT TANK CAPACITY
36.5" TABLE HEIGHT
60 DEGREE LEFT TO 60 DEGREE RIGHT MITERING

STANDARD MACHINE FEATURES
- ADJUSTABLE 3 DEGREE CANTED HEAD
- DOUBLE ARTICULATING SEMI-AUTOMATIC CONTROL
- TWO FULL STROKING HYDRAULIC VISES
- MANUAL PRECISE HEAD POSITIONING
- DIGITAL ANGLE DISPLAY
- MECHANICALLY ADJUSTABLE GUIDE ARM
- ON DEMAND HYDRAULICS SAVE ENERGY
- TRUE DIRECT DRIVE- NO BELTS/PULLEYS
- HYDRAULIC POSITIVE DOWN FEED
- CAST IRON BAND WHEELS
- REPLACEABLE BLADE BRUSH
- ROBUST STEEL BASE
- EASY-ACCESS ELECTRICAL PANEL AND HYDRAULICS
- BLADE BREAKAGE SWITCH
- MECHANICAL BAND TENSIONING WITH DRO
- REPLACABLE CARBIDE GUIDE INSERTS
- 0.5 HP HYDRAULIC PUMP PROVIDES SYSTEM PRESSURE
- SAFETY DOOR INTERLOCKS
- FLOOD COOLANT WITH WASH-DOWN HOSE
- LASER LIGHT
- WORK LIGHT
- VARIABLE VISE PRESSURE

OPTIONS INCLUDED
- POWER TILT WITH PROGRAMMABLE GO TO ANGLE
- CHIP BUCKET
- MIST LUBRICATION SYSTEM
Power: 480 (3-Phase)
