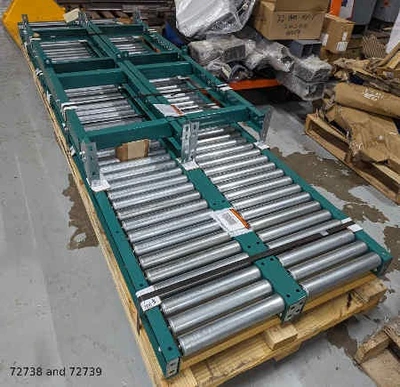

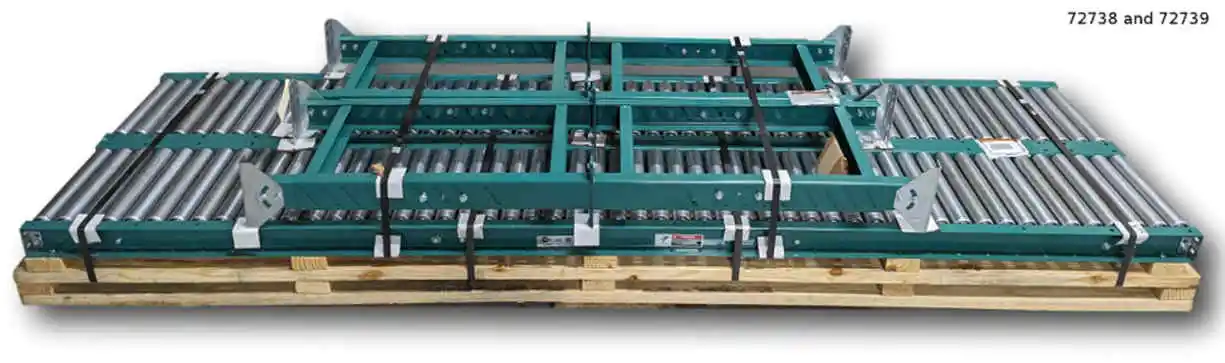

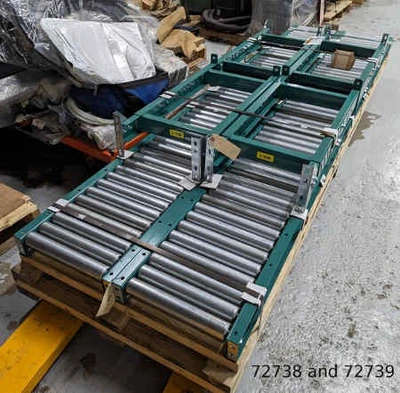

NEW AUTOMATED CONVEYOR SYSTEMS INC 190SR-13-2.25-SH

AUTOMATED CONVEYOR SYSTEMS (NEW) MODEL
190SR-13-2.25-SH GRAVITY ROLLER CONVEYOR

9' 11-1/4" LENGTH
13" BETWEEN FRAMES
16" OVERALL WIDTH
CAPACITY
- 240 LBS PER ROLLER
- 1,350 LBS DISTRIBUTED OVER 10' LENGTH

3-1/2" X 1-1/2" X 10 GAUGE FORMED STEEL FRAMES
1.9" DIAMETER X 16 GAUGE GALV. STEEL TUBE ROLLERS
7/16" HEX COLD ROLLED STEEL SHAFT
2.25" ROLLER CENTERS, SET 1/4" HIGH IN FRAME

(2) MD-7-13 FLOOR SUPPORTS
- 12 GAUGE FORMED STEEL
- 13" BETWEEN FRAMES
- 16" OVERALL WIDTH
- 38" TO 62" HEIGHT

EQUIPPED WITH
- HARDWARE
