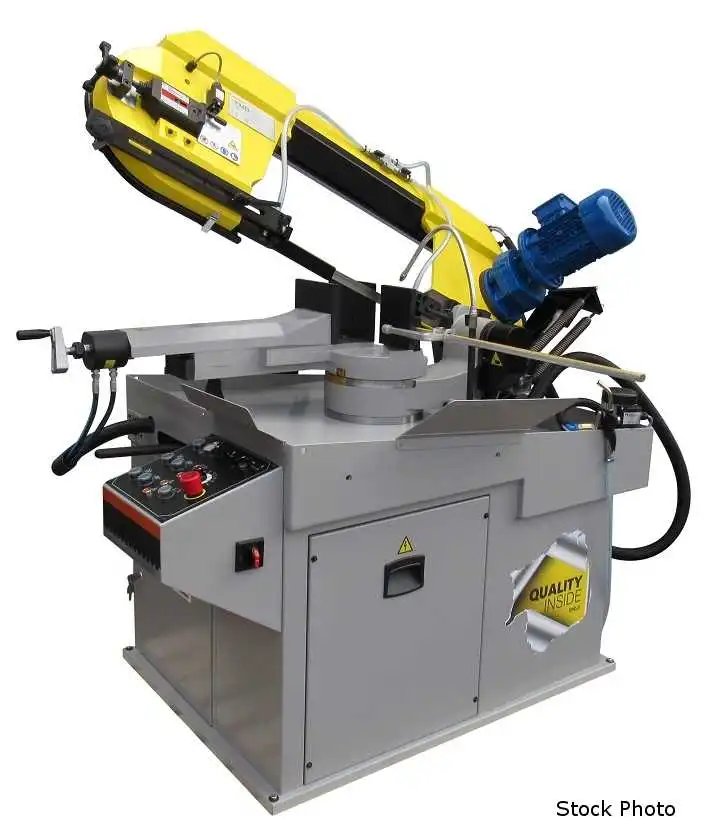

NEW PAT MOONEY FMB MAJOR

PAT MOONEY (NEW) MODEL FMB MAJOR
SEMI-AUTOMATIC BANDSAW

10' 10" X 1" X 0.035" BLADE
52-394 FPM VARIABLE BLADE SPEED
2 HP, 220 VOLT, 3 PHASE SAW MOTOR

CAPACITY AT 0 DEGREES
- 10-1/4" ROUND
- 10-1/4" X 14-1/2" RECTANGLE
- 10-1/4" X 10-1/4" SQUARE

CAPACITY AT 45 DEGREES
- 10-1/4" ROUND
- 4-3/4" X 11-1/2" RECTANGLE
- 10-1/4" X 10-1/4" SQUARE

CAPACITY AT 60 DEGREES
- 7" ROUND
- 3-1/2" X 7-1/2" RECTANGLE
- 7" X 7" SQUARE

BUNDLE CAPACITY
- 5-1/2" X 11" RECTANGLE

STANDARD FEATURES AND EQUIPMENT

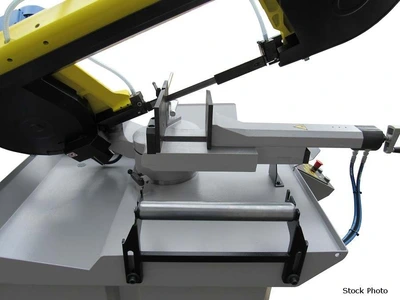

- SWIVEL SAW HEAD WITH PRECISION PROTRACTOR
- MITER FROM 0 - 60 DEGREES WITH POSITIVE STOPS AT 45 AND 60 DEGREES
- HEAVY CONSTRUCTED CAST HEAD

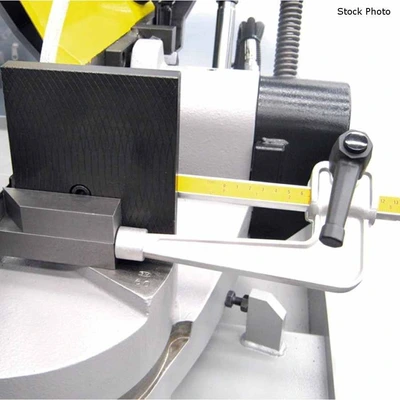

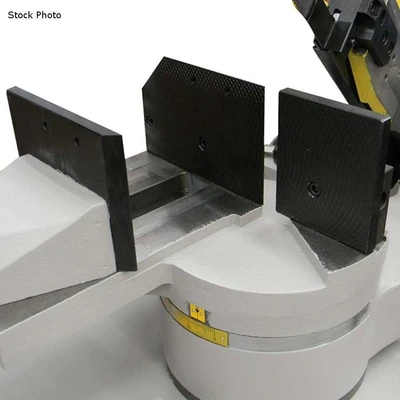

- HEAVY-DUTY SOLID CAST VISE - WITH A QUICK RELEASE CLAMP
- MECHANICAL BLADE TENSIONER WITH A BUILT-IN PRECISION INDICATOR
TO ENSURE THE CORRECT BLADE TENSION IS SET
- PRECISION SAW BLADE GUIDE SYSTEM
4 CARBIDE GUIDES WITH 4 SIDE ROLLER BEARINGS AND 2 TOP ROLLER BEARINGS
ADJUSTABLE BLADE GUIDE ARM ALLOWS THE MOVEABLE BEARING AND CARBIDE GUIDE
BLOCK TO BE SET CLOSE TO THE MATERIAL BEING CUT
- TRUE DIRECT DRIVE SAW MOTOR - GEAR BOX
REDUCTION GEAR BOX WITH CASE HARDENED AND PRECISION GROUND
HELICAL GEAR LUBRICATED WITH A LONG-LASTING GREASE
- HEAVY-DUTY MACHINE BASE WITH THE ERGONOMICALLY
PLACE CONTROL PANEL
- HEAVY-DUTY MACHINE BASE WITH THE ERGONOMICALLY PLACED CONTROL PANEL

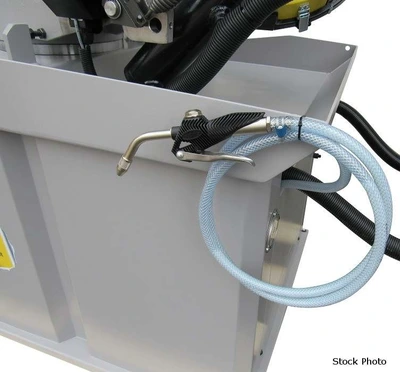

- FLOOD COOLANT SYSTEM
7.9 GALLON COOLANT TANK WITH RECIRCULATING PUMP
SAW TABLE IS AT AN ERGONOMICAL HEIGHT TO MAKE FOR
EASY OPERATION
- TRUE-SEMI-AUTOMATIC OPERATION - HYDRAULIC CLAMPING AND HYDRAULIC
SAW HEAD DOWN/RETURN
CYCLE START BUTTON ACTIVATES THE SAW CYCLE - CLAMP AND SAW HEAD DESCENT
POSITIVE HYDRAULIC CUTTING PRESSURE
SAW HEAD AUTOMATICALLY RETURNS TO THE HEIGHT SET BY THE OPERATOR
- FULLY HYDRAULIC FEED RATE - FULL CONTROL AND ADJUSTABITY OF THE FEED RATE
- INFINTELY VARIABLE SAW BLADE SPEED 52 TO 394 FPM
INVERTER CONTROLLED
THE SAW BLADE SPEED IS ADJUSTED AT THE CONTROL PANEL. WITH THE INFINITELY
VARIABLE BLADE SPEED THE PROPER SAW BLADE SPEED CAN BE DIALED IN BASED
ON THE MATERIAL GRADE.

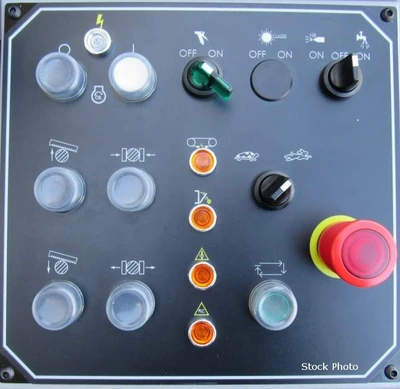

- PLC CONTROLLED OPERATION
- 24 V CONTROL VOLTAGE
Power: 220 (3-Phase)
