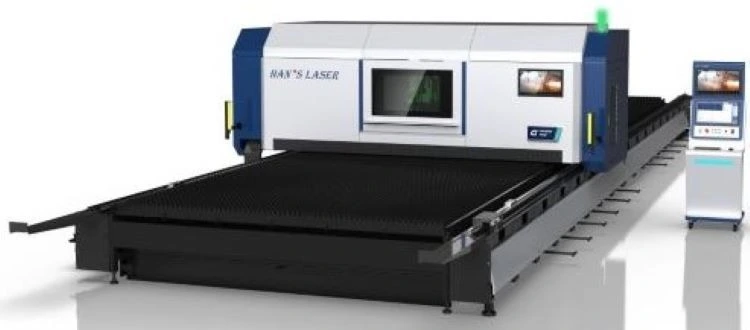

NEW HANS LASER G40040S-PRO-G

HANS LASER (NEW) MODEL G40040S-PRO-G
LASER 30 KW HANS

131' 2" X 13' 1" SHEET SIZE
30 KW HANS FIBER RESONATOR WITH WATER CHILLER
1614" X AXIS (41000 MM)
161" Y AXIS (4100 MM)
13" Z AXIS (350 MM)
+/- 0.0019" X AND Y AXIS POSTIONING ACCURACY (.05 MM)
+/- 0.0019" X AND Y AXIS REPEATABILITY (0.05 MM)
+/- 0.1 DEGREE A AND B AXIS POSITIONING ACCURACY
3149" X/Y AXIS MAXIMUM POSITIONING ACCURACY
160,000 LB MAXIUMUM LOAD OF WORKBENCH/TABLE
2.36" MAX PLATE THICKNESS (60 MM)

FEATURES
- HIGH SPEED FIBER LASER
CUTTING MACHINE HANS LASERSOURCE
- BEVEL CUTTING HEAD (PRO-G)
- HAN'S GAS MIXER
- NESTING SOFTWARE
- WIRELESS 32-KEY HANDHELD CONTROL
- 5-AXIS CNC SYSTEM
- PNEUMATIC SYSTEM
- TRANSMISSION SYSTEM
- CAPACITIVE VERTICAL TRACKING SYSTEM
- DONALDSON DUST COLLECTOR (QTY X2)
- 480-380V TRANSFORMER+VOLTAGE STABILIZER
Power: (3-Phase)
