ALM POSITIONER (NEW) MODEL 15-2920A ELEVATING HEADSTOCK MOBILE TAILSTOCK

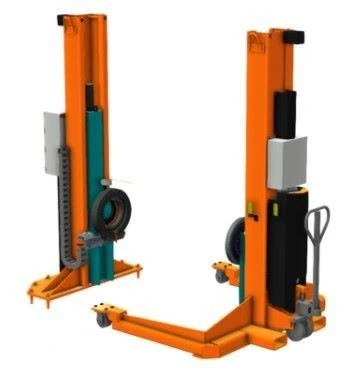

15K ELEVATING HEADSTOCK MOBILE TAILSTOCK POSITIONER OVERVIEW
- SPECIFICALLY ENGINEERED FOR VARIABLE LENGTH PARTS, UTILIZING ELEVATING HEADSTOCK
AND MOBILE PALLET JACK STYLE TAILSTOCK CONFIGURATION
- STANDARD HEIGHT POSITIONER WITH 68.5" OF VERTICAL TRAVEL
- STANDARD (NON-PROGRAMMABLE) CONTROLS FOR MOTION
- OPERATOR INITIATES POSITIONER MOTION VIA CABLED PENDANT

POSITIONER SPECS
- 15,000 LBS CAPACITY ELEVATING FIXED HEADSTOCK AND MOBILE TAILSTOCK, WITH FORK
TRUCK POCKETS
- HYDRAULICALLY CONTROLLED ELEVATION AND ROTATION
AXIS 1 - LIFT
- 68.5" OF VERTICAL TRAVEL
- GRAVITY DOWN SYSTEM
- AUTOMATICALLY ENGAGING MECHANICAL SAFETY LOCK WITH ELECTRONIC RELEASE
AXIS 2 - TILT ROTATION 360 DEGREE
- 14" ROTATION WITH 74,000 IN/LBS OF TORQUE
- ROTATION SPEED 1.0 RPM
480 VOLT 3 PHASE 20 AMP SINGLE DROP FOR POSITIONER POWER
65 FT POWER AND COMMUNICATION CABLES WITH QUICK DISCONNECTS, BETWEEN HEADSTOCK
TAILSTOCK ARE SUPPLIED BY ALM
CUTOMER RESPONSIBLE FOR ELECTRIC POWER SUPPLY AND HOOK UP
CUSTOMER MUST SUPPLY CENTERLINE HEIGHT BETWEEN 15" - 30" WITH ORDER
PLACEMENT

CONTROLS SPECS
- NON-PROGRAMMABLE
- E-STOP SAFETY SHUT-OFF BUTTON CONVENIENTLY LOCATED ON EACH HEADSTOCK
AND TAILSTOCK COLUMN
- PUSH-BUTTON HYDRAULIC POSITIONING FOR ELEVATING, TILTING, AND ROTATING YOR PART
- WIRED 6-BUTTON OPERATOR PENDANT WITH 25 FT CABLE MAKES IT POSSIBLE TO OPERATE FROM
VARIOUS LOCATIONS AROUND THE PART
