NEW HANS LASER PL3T0906-H12000

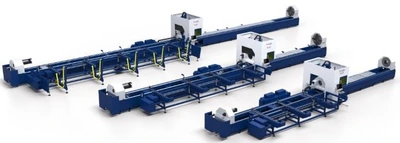

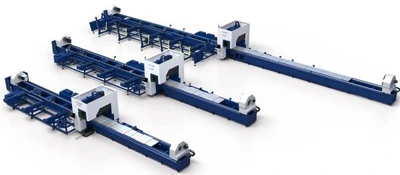

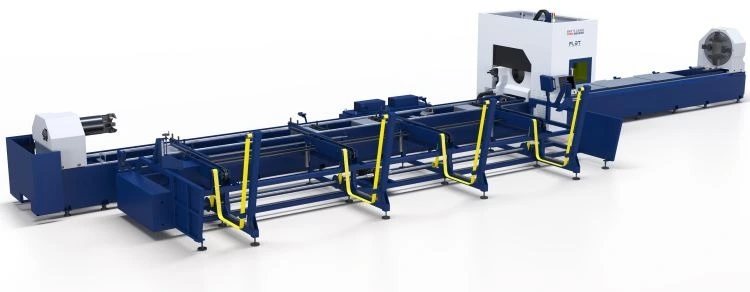

HANS LASER (NEW) MODEL PL3T0906-H12000 LASER TUBE CUTTING MACHINE

1" TO 14" SQUARE CUTTING CAPACITY
1" TO 13-3/4" ROUND CUTTING CAPACITY

12000W LASER SOURCE POWER
29' 6" X-AXIS TRAVEL
=14' 2" Y-AXIS TRAVEL
=13' 9" Z-AXIS TRAVEL
80 RPM MAXIMUM POSITIONING SPEED OF A, B, C
±0.020" X, Y , AXIS REPEATED POSITIONING ACCURACY
132 LBS MAX WEIGHT OF SINGLE TUBE FEEDING LENGTH
=0 TAIL LENGTH
19'-20' 4"/28' 8"-30' 2" LOADING LENGTH
0-19' 8" UNLOADING TUBE LENGTH (CUSTOM)
80M/MIN POSITIONING SPEED
65' 7" (L) X 11' 9" X (W) X 10' 9" (H) HOST DIMENSIONS

FEATURES
HAN'S CUTTING HEAD
- CUTTING HEAD ADOPTS CAPACITIVE SENSOR, WHICH HAS HIGH SENSING ACCURACY
SENSTITIVE RESPONSE STABLE AND RELIABLE PERFORMANCE
- X,Y,Z LINEAR AXIS AND A, B ROTARY AXIS ALL ADOPT HIGH RESOLUTION HIGH PRECISION
LARGE TORQUE SERVO MOTOR, WHICH HAS HIGH PRECISION HIGH SPEED, LARGE TORQUE, LARGE
INERTIA, STABLE AND DURABLE PERFORMANCE, ENSURING THE HIGH SPEED AND ACCELERATION
OF THE WHOLE MACHINE.
HAN'S FIBER LASER SOURCE
- LARGE HEAT DISSIPATION AREA, GOOD BEAM QUALITY, SMALL SIZE
FOUR-JAW SELF-CENTERING PNEUMATIC CHUCK
- FEEDING CHUCK SEAT AND FIXED CHUCK SEAT ARE OF PLATE WELDING STRUCTURE
- HIGH TEMPERATURE ANNEALING, ROUGH MACHINING, VIBRATION AGING AND HIGH-PRECISION MACHINING
THE CHUCK HAS GOOD RIGIDITY LIGHT WEIGHT AND GOOD DYNAMIC PERFORMANCE
NEGATIVE PRESSURE DEDUCTING IN THE PIPE
- PIPE INTERIOR AND CUTTING AREA ADOPT NEGATIVE PRESSURE SUCTION DUST REMOVAL WHICH HAS
GOOD DUST REMOVAL EFFECT AND IS CLEAN AND ENVIRONMENTALLY FRIENDLY
PROFESSIONAL NESTING SOFTWARE
- PROVIDE A SERIES OF CUTTING MODULES INCLUDING INTERSECTING LINE CUTTING, VARIOUS GROOVE
HOLE AND PATTERN CUTTING AND VARIOUS CUTTING WHICH ARE SIMPLE AND PRACTICAL
- OUTPUT CAM FILES AND CNC CUTTING PROGRAMS FOR CUTTING ROUND TUBES AND VARIOUS
SQUARE TUBES
- SUPPORT MULTIPLE TYPES OF NUMERICAL CONTROL LASER CUTTING MACHINES WITH MULTIPLE AXES
- SUPPORT WINDOWS 98/2000/NT/VISTA OPERATING SYSTEM
INTELLIGENT REMOTE CONTROL DEVICE
- PROVIDES SERIES CUTTING MODULES SAVE TIME MATERIAL AND NO WORRY IN PIPE CUTTING
- THE KEYS ARE SIMPLE AND CLEAR
- EASY TO OPERATE
- ONE TOUCH CONTROL
- EFFICIENT PRODUCTION

OPTIONS INCLUDED
- HIGH PRESSURE AIR CUTTING COMPRESSOR
- DONALDSON DUST COLLECTOR
- POWER STABILIZER
- TRANSFORMER (SPECIFY VOLTAGE)
