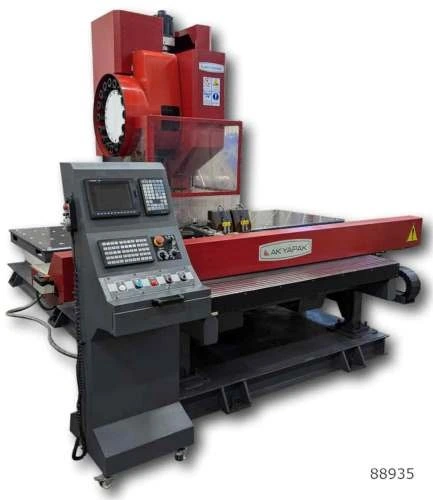

NEW AKYAPAK AFD 10 CNC FLANGE/PLATE DRILL
Overview
Specifications
| Weight | 16,000 | 16,000 |
|---|
AKYAPAK (NEW) MODEL AFD 10 CNC FLANGE AND PLATE DRILLING MACHINE
DRILLING, TAPPING, MILLING AND SCRIBE MARKING
VERTICAL DRILLING UNIT
- 10-3,000 RPM
- BT 40 CONICAL TOOL
- 30 HP, 103 LB FT MOTOR
- 206 LB FT SPINDLE TORQUE
PLATE DIMENSIONS
- 4" X 4" X 1/4" MINIMUM
- 40" X 60" X 2-1/2" MAXIMUM
- 40" X 48" X 3-1/8" MAXIMUM
- 24" X 60" X 3-1/8" MAXIMUM
CAPACITY
- 1/4" X 3-1/8" PLATE THICKNESS
- 1,700 MATERIAL WEIGHT
- 1-5/8" DRILLING
- M10 TO M24 TAPPING
- 65'/MINUTE X AXIS SPEED
- 65'/MINUTE Y AXIS SPEED
- 50'/MINUTE Z AXIS SPEED
MITSUBISHI CONTROL PANEL
16 UNITS - AUTOMATIC TOOL CHANGING
AUTO LUBRICATION SYSTEM
INTERNAL AND EXTERNAL MIST COOLING SYSTEM
CHIP CONVEYOR
COOLING FOR ELECTRIC PANEL WITH AC
OPTION AVAILABLE - PRICE ON REQUEST
- TOOL MEASUREMENT DEVICE
- HUB CONNECTION SYSTEM
