NEW DURMA AD-EB 30135

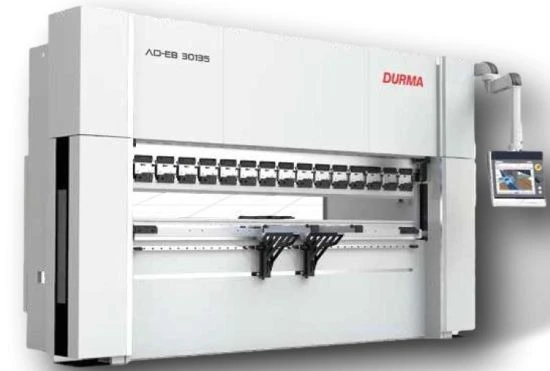

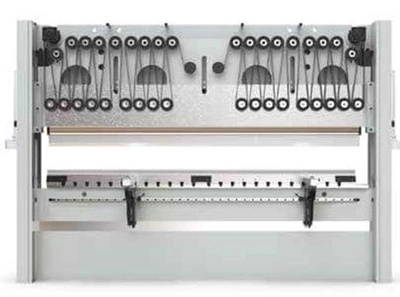

DURMA (NEW) MODEL AD-EB 30135 ELECTRICAL PRESS BRAKE

148 US TONS
10' BENDING LENGTH
10' 11.5" BETWEEN COLUMNS
12.5" STROKE
19.7" DAYLIGHT
42.7" WORKING HEIGHT
236"/MINUTE APPROACH SPEED
23.6"/MINUTE BENDING SPEED (47"MIN.W/ROBOT)
236"/MINUTE RETURN SPEED
25.6" BACKGAUGE (X-AXIS) WORKING DISTANCE
9.8" BACKGAUGE (R-AXIS) WORKING DISTANCE

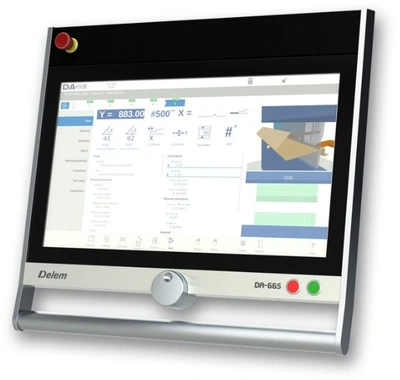

DELEM DA-66S CONTROL UNIT
- 2D GRAPHIC TOUCH SCREEN PROGRAMMING MODE
- 3D VISUALIZATION IN SIMULATION PRODUCTION
- 24" HIGH-RESOLUTION COLOR TFT
- DELEM MODUSYS COMPATIBILITY
- USB PERIPHERAL INTERFACING
- USER SPECIFIC APPLICATION SUPPORT
- SENSOR BENDING AND CORRECTION INTERFACE
- PROFILE-S2D OFFLINE SOFTWARE

STANDARD FEATURES
- 4 AXIS CNC Y1, Y2, X, R
- F.AKAS LC 5 SAFETY SYTEM
- SERVO DRIVEN BACKGAUGE SYSTEM (X-AXIS)
LINEAR GUIDE AND BALLSCREW DESIGN
- UNIVERSAL WEDGE-STYLE PUNCH CLAMP
(FOR AMERICAN OR EUROPEAN STYLE PUNCHES)
- BOTTOM DIE RAIL ADAPTER
(FOR AMERICAN AND EUROPEAN STYLE DIES)
- PRECISION HARDENED GROUND PUNCH/4-WAY DIE
TOP TOOL - ROLLERI P97.75.R08
BOTTOM TOOL - ROLLERI M.460R.85
- 2 BACKGAUGE FINGER BLOCKS
- CNC CONTROLLED MOTORIZED CROWNING
- 2 SLIDING FRONT SUPPORT ARMS WITH T-SLOT,
TILTING STOP AND FULL LENGTH LINEAR GUIDE
- QUICK-RELEASE CLAMPING SYSTEM

OPTIONS AVAILABLE - PRICE ON REQUEST
- DELEM DA-69S CNC CONTROL PROFILE T3D SOFTWARE
- DBEND 3D OFFLINE SOFTWARE PACKAGE
CAD/CAM IMPORTING AND SIMULATION PROGRAM
- FIESSLER LASER FINGER SAFETY-MOTORIZED HEIGHT
ADJUSTMENT
- 4-AXIS BACKGAUGE UPGRADE
X = 25.5" X, R, Z1, Z2
- 4 + 1 AXIS BACKGAUGE UPGRADE
X = 25.5" X, R, Z1, Z2, DELTA X +/- 4.9"
- LASER ANGLE MEASUREMENT SYSTEM
ADJUSTS PARAMETERS THROUGH BEND CYCLE
EXACT BENDING WITHOUT OPERATOR'S INTERVENTION
PROVIDES THE TARGET ANGLE WITH A SINGLE BEND
PREVENTS MATERIAL AND TIME LOSS
- WILA HYDRAULIC AND PNEUMATIC TOOL CLAMPS
- TOOLING FOR HYDRAULIC CLAMPING SYSTEMS
TOP TOOL - ROLLERI TPR200.86.R1
BOTTOM TOOL - ROLLERI TMR100.12.86
- PNEUMATIC SHEET SUPPORT TABLE
- CENTRAL LUBRICATION SYSTEMS (MANUAL/MOTORIZED)
- ADDITIONAL BACKGAUGE FINGERS
- ADDITIONAL SLIDING FRONT SUPPORT ARMS

HYDRAULIC OIL REQUIRED
