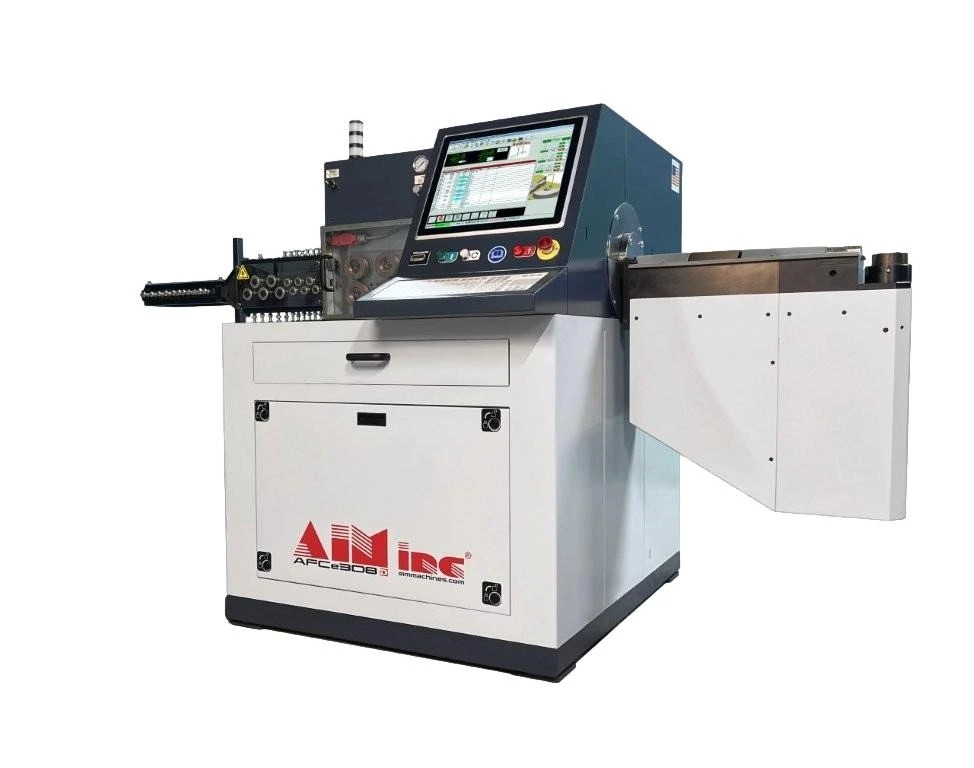

NEW AUTOMATED INDUSTRIAL MACHINERY INC AFME-3D8

ACCUFORM (NEW) MODEL AFCE-3D8
PERFORMANCE IN CNC WIRE BENDING

2MM - 8MM WIRE DIAMETER RANGE (MILLMETERS)
0.080" - 0.313" WIRE DIAMETER RANGE (INCHES)
550 N/mm² MAX WIRE TENSILE AT MAX WIRE DIAMETER
80 kPSI

PERFORMANCE SPECIFICATIONS
FEEDER AXIS #1
- 0.0001mm WIRE FEED RESOLUTION (MILLMETERS)
- 0.00001" WIRE FEED RESOLUTION (INCHES)
- 70M/MIN MAX WIRE FEED SPEED (METERS)
- 230' f/min MAX WIRE FEED SPEED (FEET)

BENDER AXIS #2
- 0.0001 BENDER RESOLUTION
- 1200/SEC MAX BENDER SPEED
- UNLIMITED MAX BENDER ANGLE

Z-AXIS #3
- 0.0001 Z-AXIS RESOLUTION
- 330/SEC MAX Z-AXIS SPEED
- UNLIMITED MAX Z-AXIS ROTATION

SET-UP TIME
- 2 MINUTE SAME WIRE DIAMETER
- 15 MINUTES CHANGE BENDING TOOLS

POWER CONSUMPTION, ELECTRICAL AND AIR REQUIREMENTS
- 1.9 AVERAGE POWER CONSUMPTION (KW/h)**
- 50/60 Hz, 400 VOLT OR 480 VOLT, 3 PHASE
- 22.14 KVA INSTALLED POWER
- 100 PSI@ 2 SCFM

**POWER CONSUMPTION DATA IS MEASURED AN AVERAGE PRODUCTION

FEATURES
- 8 MM MAXIMUM WIRE DIAMETER
- AIM'S EXCEPTIONAL STANDARD MACHINE CONSTRUCTION
- HIGH END DIGITAL CONTROLLERS BY YASKAWA
- P270-5 5 HP PAYOFF UNIT
- TWO PLANE WIRE STRAIGHTENERS
- ONE SET OF WIRE SPECIFIC TOOLING (INCLUDES CUTTERS, BENDING PIN AND TOOL CLUSTER)
- STANDARD FEEDER RESOLUTION OF 0.0002" FOR OUTSTANDING PRECISION
- STANDARD FEEDER MAXIMUM VELOCITY OF 230 F/MINUTES (70M/MIN)
- BELT DRIVEN YASKAWA SERVO BENDER, FOR EASY MAINTENACE AND LOWER COST OF OWNERSHIP
- DESIGNED WITH READILY AVAILABLE REPLACEMENT PARTS AVAILABLE IN LOCAL MARKETS
- EXTREME OPERATING SPEEDS WITH 360 DEGREES UNLIMITED Z-AXIS ROTATION
- 19" TOUCHSCREEN LCD COLOR MONITOR, INDUSTRIAL SEALED KEYBOARD WITH INTEGRATED POINTING DEVICE
- OUR STANDARD SMARTEDITOR PROPRIERTARY PROGRAMMING SOFTWARE
- BEDING SIMULATION WITH ANIMATION FUNCTION ALLOWS USER TO SEE BENDS BEFORE PRODUCTION
- DIAL-A-SERVICE ALLOWS AIM TECHNICAL SUPPORT REMOTE SACESS TO YOUR MACHINE ANYWHERE IN THE WORLD,
THIS WILL ALLOW DIAGNOSTIC HELP WITH MINUTES.
