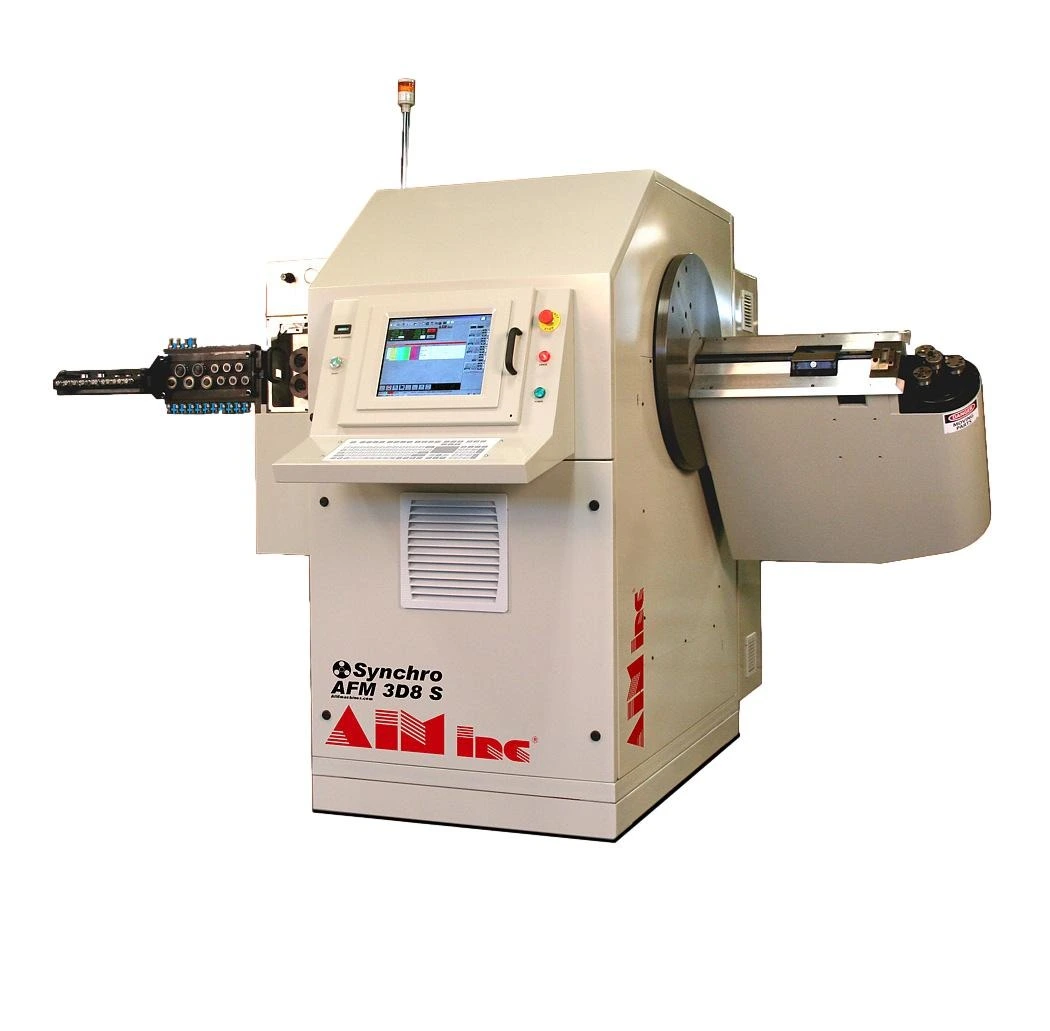

NEW AUTOMATED INDUSTRIAL MACHINERY INC AFM 3D8 S

ACCUFORM SYNCHRO (NEW) MODEL AFM-3D8 S
PERFORMANCE IN CNC WIRE BENDING

2MM - 8MM WIRE DIAMETER RANGE (MILLMETERS)
0.080" - 0.315" WIRE DIAMETER RANGE (INCHES)
550 N/mm² MAX WIRE TENSILE AT MAX WIRE DIAMETER
80 kPSI MAX WIRE TENSILE AT MAX WIRE DIAMETER

PERFORMANCE SPECIFICATIONS
FEEDER AXIS #1
- 0.0001MM WIRE FEED RESOLUTION (MILLMETERS)
- 0.00001" WIRE FEED RESOLUTION (INCHES)
- 152M/MIN MAX WIRE FEED SPEED (METERS)
- 506' F/MIN MAX WIRE FEED SPEED (FEET)

BENDER AXIS #2
- 0.0001 BENDER RESOLUTION
- 720/SEC MAX BENDER SPEED
- UNLIMITED MAX BENDER ANGLE

Z-AXIS #3
- 0.0001 Z-AXIS RESOLUTION
- 720/SEC Z-AXIS SPEED
- UNLIMITED MAXIMUM Z-AXIS ROTATION

TURRET AXIS #4
- 250 mSEC TURRET AXIS TOOLCHANGE TIME

BENDER MANDREL AXIS #5
- 0.0001" MANDREL AXIS RESOLUTION
- 2700/SEC MANDREL AXIS SPEED
- UNLIMITED MAXIMUM MANDREL AXIS ROTATION

SET-UP TIME
- 2 MINUTE SAME WIRE DIAMETER
- 15 MINUTES CHANGE FEEDER ROLLERS AND BENDING TOOLS

POWER CONSUMPTION, ELECTRICAL AND AIR REQUIREMENTS
- 4 AVERAGE POWER CONSUMPTION (KW/h)**
- 50/60 Hz, 480 VOLT, 3 PHASE
- 50KVA INSTALLED POWER
- 100 PSI@ 2 SCFM

VERSATILITY
- 10 TOTAL BENDING TOOLS (POSTIVE AND NEGATIVE)
- 3 TOTAL BENDING MANDRELS

**POWER CONSUMPTION DATA IS MEASURED AN AVERAGE PRODUCTION. ACTUAL VALUES MIGHT VARY AND ARE PART
SPECIFIC

FEATURES
- CONCURRENT OPERATIONS: DUAL PROCESSOR ALLOWS PROGRAMMING A PART WHILE RUNNING PRODUCTION
- PRODUCTION STATISTICS FOR COST ESTIMATING AND SCHEDULING
- XYZ, DXF AND OPLIONAL SOLID MODELING STEP AND IGES FILE IMPORT
- ANIMATION/GRAPHIC SIMULATION ALLOWS YOU TO SEE PROGRAMMED MOVES BEFORE RUNNING PRODUCTION
- REMOTE, OFF-LINE PROGRAMMING WITH STAND-ALONE SOFTWARE OR THROUGH INSTALLED NETWORK CARD
- COLOR LCD TOUCH SCREEN MONITOR AND INDUSTRIAL GRADE SEALED KEYBOARD FOR DATA ENTRY
- SIMPLE PROGRAMMING WITH MICROSOFT WINDOWS BASED OPERATING SYSTEM
- EXCEPTIONAL ACCURACY AND REPEATABILITY
- SEALED, OVERSIZE BEARINGS FOR LOW MAINTENANCE OPERATION
- ULTRA OPTIONS FOR EVEN FASTER FEED AND BENDING SPEEDS
- DOUBLE ACTING CUTTING SYSTEM FOR HIGH TENSILE WIRE PROVIDES THE STRONGEST CUT IN THE MARKET
- ONE KEYSTROKE TRANSITION BETWEEN METRIC AND ENGLISH UNITS OF MEASURE
- VIDEO CAMERA FOR REMOTE MACHINE MONITORING OR VIDEO CONFERENCE
- GROUP INDIVIDUAL PART PROGRAM FOR PRODUCTION OF COMPLETE ASSEMBLIES OR PROGRAM TO MAKE
ALTERNATING PARTS
- PROGRAMMABLE DELAY OR HOLD FUNCTIONS TO MATCH DOWNSTREAM OPERATIONS IN WORK CELLS
- SPIRAL SOFTWARE FUNCTION ALLOWS USER TO DEFINE ANY SPIRAL WITH JUST THREE NUMBERS. (O.R., I.R.
AND DISTANCE BETWEEN SPIRALS
- EASILY ACCESSIBLE TOOLING FOR MINIMAL SETUP AND CHANGEOVER TIME
- HARDENED AND PRECISION GROUND TOOL STEEL MOVING PARTS FOR EXCEPTIONAL WEAR AND TOOL LIFE
- SPARE I/O's FOR INTERCONNECTION OF AUXILLARY EQUIPMENT SUCH AS ROBITICS, THREADING UNITS, AND
INSPECTION DEVICES
- HIGHEST OVERALL PRODUCTION SPEEDS IN THE INDUSTRY
- NETWORK READY FOR (DIAL-A-SERVICE)
- SERIAL, ETHERNET AND USB PARTS
- ROBUST SAFELY BARRIER WITH SAFETY INTERLOCK DOOR INCLUDED
- UNLIMITED ROTATION OF BENDING ARM, TURRET, BENDER AND MANDREL BENDERS FOR MAXIMUM EFFICIENCY AND
RELIABILITY
- FULL AUTOMATED PAYOFF UNTIL INCLUDED: 5HP, 2000 Kgr (4500LBS) CAPACITY
- TEMPERATURE CONTROLLED ELECTRONICS CABINETS WITH WASHABLE FILTERS
- OPTIONAL INTERGRATION WITH COORDINATE MEASURING MACHINES AVAILABLE
