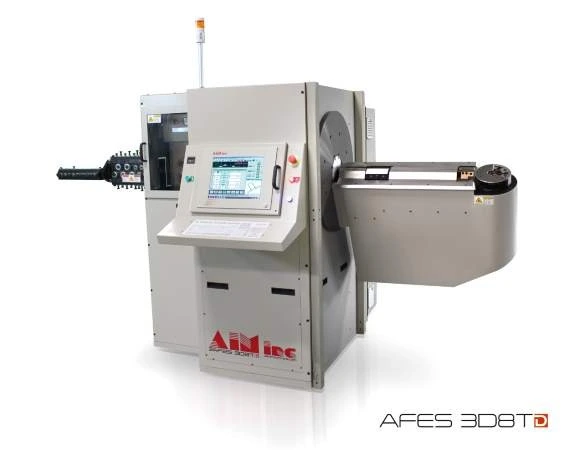

NEW AUTOMATED INDUSTRIAL MACHINERY INC AFM-3D8T

ACCUFORM MODULAR (NEW) MODEL AFES-3D8T
PERFORMANCE IN CNC WIRE BENDING

2MM - 8MM WIRE DIAMETER RANGE (MILLMETERS)
0.080" - 0.313" WIRE DIAMETER RANGE (INCHES)
620 N/mm² MAX WIRE TENSILE AT MAX WIRE DIAMETER
90 kPSI

PERFORMANCE SPECIFICATIONS
FEEDER AXIS #1
- 0.0001MM WIRE FEED RESOLUTION (MILLMETERS)
- 0.00001" WIRE FEED RESOLUTION (INCHES)
- 149M/MIN MAX WIRE FEED SPEED (METERS)
- 486' F/MIN MAX WIRE FEED SPEED (FEET)

BENDER AXIS #2
- 0.0001 BENDER RESOLUTION
- 1200/SEC MAX BENDER SPEED
- UNLIMITED MAX BENDER ANGLE

Z-AXIS #3
- 0.0001 Z-AXIS RESOLUTION
- 400/SEC Z-AXIS SPEED
- +/- 190 MAX Z-AXIS ROTATION

TURRET AXIS #4
- 250 mSEC TURRET AXIS TOOLCHANGE TIME

SERVO CUTTER AXIS AXIS #5
- 200 mSEC SERVO CUT TIME

SET-UP TIME
- 1 MINUTE SAME WIRE DIAMETER
- 8 MINUTES CHANGE FEEDER ROLLERS AND BENDING TOOLS

POWER CONSUMPTION, ELECTRICAL AND AIR REQUIREMENTS
- 2 AVERAGE POWER CONSUMPTION (KW/h)**
- 50/60 Hz, 400 VOLT OR 460 VOLT, 3 PHASE
- 49KVA INSTALLED POWER
- 100 PSI@ 2 SCFM

**POWER CONSUMPTION DATA IS MEASURED AN AVERAGE PRODUCTION

FEATURES
- CONCURRENT OPERATIONS: DUAL PROCESSOR ALLOWS PROGRAMMING A PART WHILE RUNNING PRODUCTION
- PRODUCTION STATISTICS FOR COST ESTIMATING AND SCHEDULING
- 2D/3D DXF FILE TRANSFER AND OPTIONAL 3D SLEP FILE IMPORT
- ANIMATION/BENDING SIMULATION ALLOWS YOU TO SEE PROGRAMMED MOVES BEFORE RUNNING PRODUCTION
- REMOTE, OFF-LINE PROGRAMMING WITH STAND-ALONE SOFTWARE OR THROUGH INSTALLED NETWORK CARD
- COLOR TOUCH SCREEN MONITOR AND INDUSTRIAL GRADE SEALED KEYBOARD FOR DATA ENTRY
- SIMPLE PROGRAMMING WITH WINDOWS PRO BASED OPERATING SYSTEM
- EXCEPTIONAL ACCURACY AND REPEATABILITY
- SEALED, OVERSIZE BEARINGS FOR LOW MAINTENANCE OPERATION
- WIRE FEED DIRECTLY FROM COIL
- A VARIETY OF SERVO DRIVE OPTIONS FOR COMBINATIONS OF FASTER FEED AND BENDING SPEEDS
- HIGH-SPEED SERVO CUTTING SYSTEM, THE FASTEST CUT IN THE CNC MARKET
- ONE KEYSTROKE TRANSITION BETWEEN METRIC AND ENGLISH UNITS OF MEASURE
- MERGED INDIVIDUAL PART PROGRAMS FOR PRODUCTION OF COMPLETE ASSEMBLIES OR PROGRAM TO MAKE
ALTERNATING PARTS
- PROGRAMMABLE DELAY OR HOLD FUNCTIONS TO MATCH DOWNSTREAM OPERATIONS IN WORK CELLS
- SPIRAL SOFTWARE FUNCTION ALLOWS USER TO DEFINE ANY SPIRAL WITH JUST THREE NUMBERS.
- EASILY ACCESSIBLE TOOLING FOR MINIMAL SETUP AND CHANGEOVER TIME
- HARDENED AND GROUND TOOL STEEL MOVING PARTS FOR EXCEPTIONAL WEAR AND TOOL LIFE
- I/O's FOR INTERCONNECTION OF AUXILLARY EQUIPMENT SUCH AS ROBITICS, THREADERS, AND INSPECTION
DEVICES
- HIGHEST OVERALL PRODUCTION SPEEDS IN THE INDUSTRY
- NETWORK READY FOR (DIAL-A-SERVICE)
- SERIAL, ETHERNET AND USB PARTS
- SAFETY GATE WITH SAFETY INTERLOCK SWITCH ON THE ACCESS DOOR IS INCLUED
- +/- 190 DEGREES ROTATION LIMITS
- TEMPERATURE CONTROLLED ELECTRONICS CABINETS WITH WASHABLE FILTERS
- OPTIONAL INTERGRATION WITH COORDINATE MEASURING MACHINES AVAILABLE
