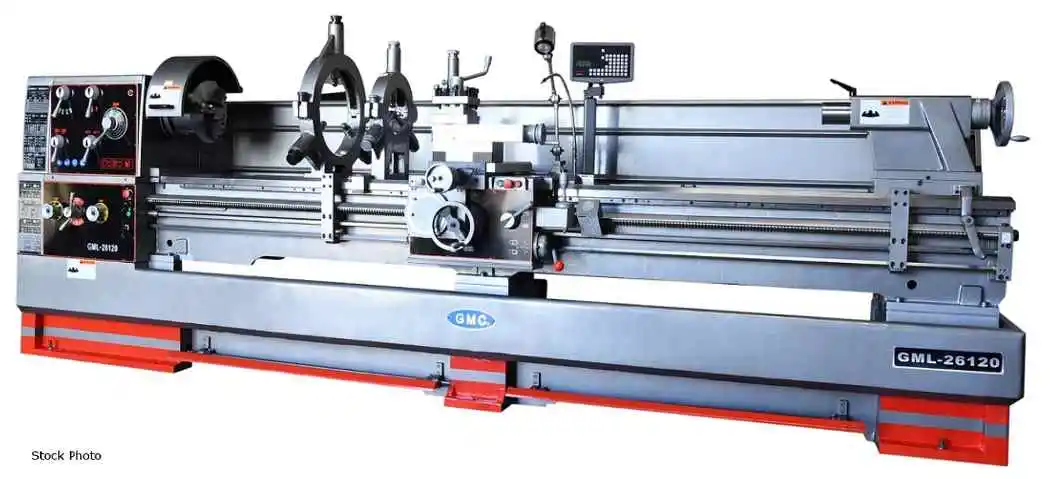

NEW GMC MACHINE TOOLS GML-26120

GMC (NEW) MODEL GML- 26120 HEAVY-DUTY PRECISION
GAP BED LATHE

26" SWING OVER BED
120" WORK PIECE
17-1/4" SWING OVER CROSS SLIDE
35-3/8" SWING IN GAP
16" BED
9" GAP TO SPINDLE
4-1/2" GAP TO CHUCK JAWS
4-1/8" SPINDLE BORE, D1-8
MT #5 SPINDLE CENTER TAPER
16 SPINDLE SPEEDS 25 - 1,600 RPM
25 LONGITUDINAL FEEDS 0.0016 - 0.055 IPR
25 CROSS FEEDS 0.0008 - 0.027 IPR
54 INCH THREADS 80-7/16 TPI
54 METRIC THREADS 0.45 - 120 MM
46 MODULE THREADS 0.25 - 60 MM
42 DIAMETRAL PITCH THREADS 7/8 - 160 DP
9" TOP SLIDE TRAVEL
14-1/2" CROSS SLIDE TRAVEL
20-1/2" SPINDLE LENGTH WITHOUT CHUCK
1-1/4" LEADSCREW LENGTH X 4 TPI
3-1/2" TAILSTOCK QUILL DIAMETER
9-1/4" TAILSTOCK QUILL TRAVEL
MT #5 TAILSTOCK QUILL CENTER TAPER

220 OR 440 VOLT, 3-PHASE MOTORS
- 15 HP MAIN
- 1 HP RAPID TRAVERSE
- 1/8 HP COOLANT PUMP

FEATURES
- 4-18" SPINDLE BORE
- D1-8 HEAVY-DUTY SPINDLE
- 16" HEAVY-DUTY GUIDEWAY
- THREADING FEEDING RATE CHANGE W/O GEAR CHANGE
- BALANCED, HARDENED AND PRECISION-GROUND SPINDLE
- HARDENED AND PRECISION-GROUND GEARS AND SHAFTS
- INDUCTION HARDENED PRECISION-GROUND GUIDEWAYS
- AUTO LUBRICATION SYSTEM IN HEADSTOCK FEED BOX
- 1- YEAR PARTS WARRANTY
- ISO 9001 CERTIFIED

STANDARD EQUIPMENT
- TAPER TURNING ATTACHMENT
- SINO DRO
- 4-WAY RAPID TRAVERSE ON CARRIAGE
- CARRIAGE STOP
- 12" 3-JAW CHUCK W/REVERSIBLE TOP JAWS
- 16" 4-JAW CHUCK, DIRECT MOUNT
- 18" FACE PLATE
- 7-1/2" STEADY REST WITH ROLLER JAWS
- 7/8" to 5-1/8" FOLLOW REST
- REMOVABLE GAP
- 4-WAY TOOL POST
- FOOT BRAKE
- HALOGEN WORK LIGHT
- FULL LENGTH SPLASH GUARD
- DEAD CENTERS
- THREAD CHASING DIAL
- REDUCING SLEEVE MT7/MT5 FOR SPINDLE
- TOOL BOX AND LEVELING PADS

OPTIONS AVAILABLE - PRICE ON REQUEST
- ALORIS TYPE QC TOOL POST SET, 6 PIECES
- 15" STEADY REST WITH ROLLER JAWS
- LIVE CENTER # 900-5005
- EXTRA 7-1/2" STEADY REST WITH ROLLER JAWS
- CHUCK GUARD WITH SAFETY SHUT OFF
Power: 220/440 (3-Phase)
