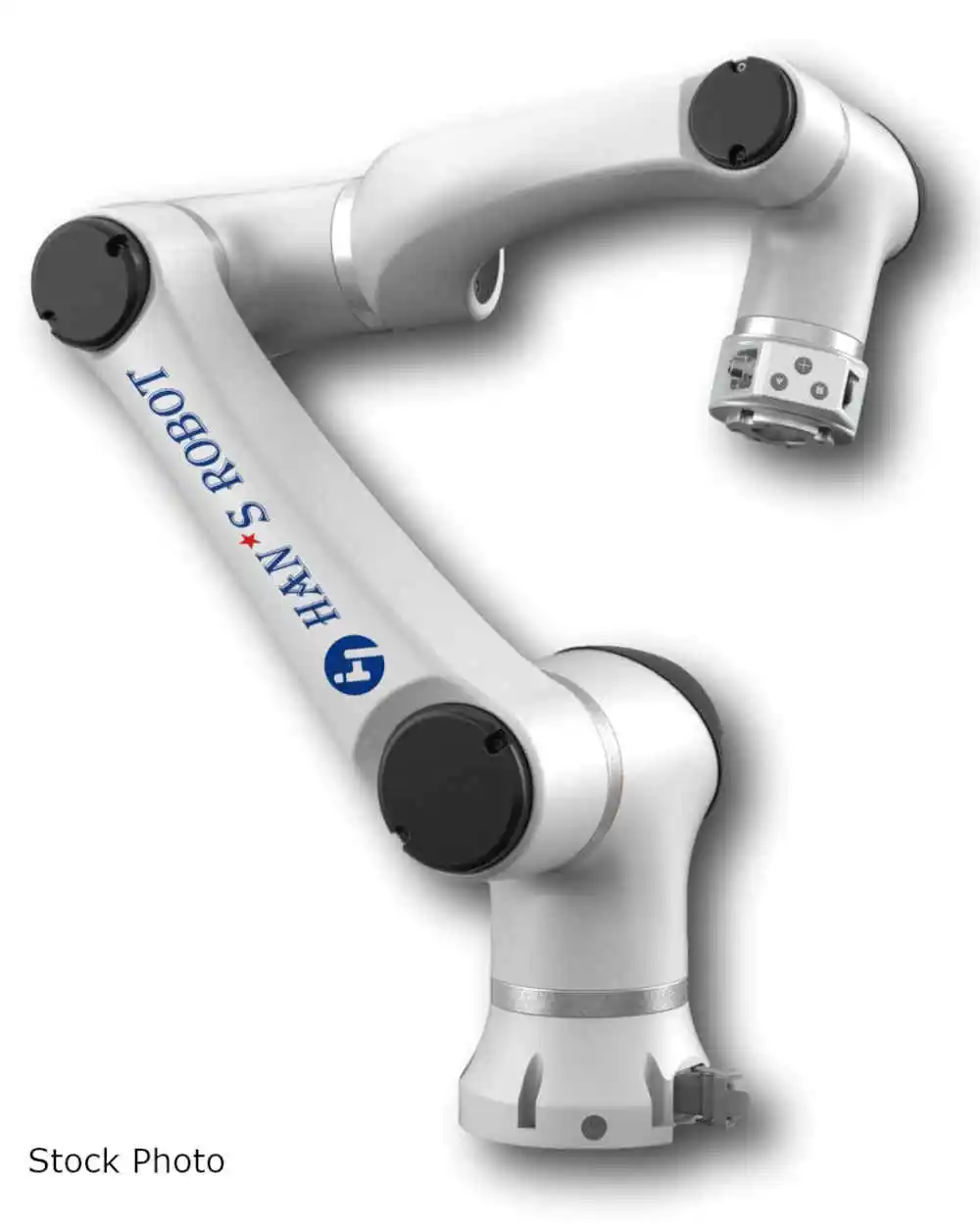

NEW HANS LASER E10

HANS LASER (NEW) MODEL ELFIN E10 ROBOT

95 LBS WEIGHT
22 LBS PAYLOAD
39" REACH
350 W TYPICAL APPLICATION POWER CONSUMPTION
JOINT SPEED
- 100 DEGREES/S J1- J2
- 150 DEGREES/S JE - J4
- 180 DEGREES/S J5- J6
2M/S TOTAL SPEEDS
+/- 0.03MM
6 DEGREES OF FREEDOM
21"X 18" X 13" CONTROL BOX SIZE
ENDI/O PORT
- 3 DIGITAL INPUTS
- 3 DIGITAL OUTPUTS
- 2 ANALONG INPUTS
CONTROL BOX/ I/O PORT
- 16 DIGITAL INPUTS
- 16 DIGITAL OUTPUTS
- 2 ANALOG INPUTS
- 2 ANALOG OUTPUTS
24V/2A I/O SOURCE
TCP/IP AND MODBUS COMMUNICATION
GRAPHICAL PROGRAMMING REMOTE CELL INTERFACE
1P54 IP RATING
COLLABORATIVE OPERATION
- 10 ADVANCED SECURITY CONFIGURATION FUNCTIONS
ALUMINUM ALLOY MAIN MATERIAL
0.-50 DEGREE C WORKING TEMPERATURE
200-240 VOLT AC, 50-60 HZ POWER INPUT
16" CABLE TO THE CONTROL BOX
16" CABLE TO TEACH PENDANT

STANDARD FEATURES
- OPTIMIZED SINGULARITY
- FIST DUAL-JOINT MODULE DESIGN
- HIGHLY FLEXIBLE 6-DOF COLLORATIVE ROBOT
- MODULARITY
