NEW IPG PHOTONICS COBOT

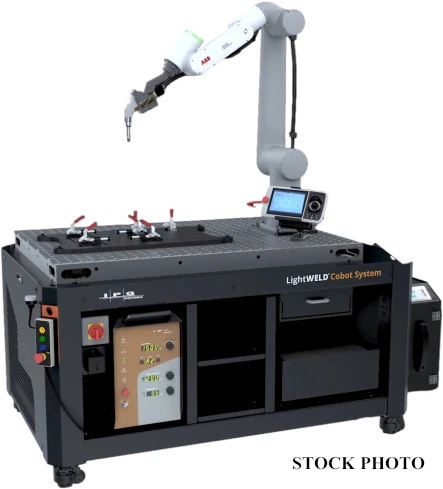

IPG (NEW) LIGHTWELD COBOT SYSTEM

INDUSTRIAL TOUCH SCREEN W/DEAD MAN SWITCH ESTOP
INTUITIVE GRAPHICAL OPERATOR INTERFACE
TOOL CENTER POINT SPEEDS UP TO 80 IN/SEC
PROCESS SPEEDS UP TO 8 IN/SEC
26 LB CAPACITY
REPEATABILITY OF +/-0.020MM ON TARGET
54" REACH (FROM FLANGE)
IP67 INGRESS PROTECTION
MAINTENANCE FREE FOR YEARS UNDER NORMAL USE
120 VOLT

SOFTWARE FEATURES
BLOCK BASED SYSTEM PROGRAMMING
- NO CODING REQUIRED
MANUAL ROBOT MANIPULATION TEACH POINT TRAINING
- ROBOT MOUNTED PUSH BUTTON OR PENDANT INTERFACE
LASER WELD WIZARD PROGRAM
- LASER ARC START AND END POSITIONS
- LINEAR AND CIRCULAR MOVE PROFILES
- TACK WELD INTERFACE
- CLEANING MODE INTERFACE
SELECTION OF WELD PARAMETERS
- SELECT STANDARD PARAMETERS
- CREATE CUSTOM WELD PARAMETERS ON PENDENT
ACCESS LIGHTWELD SOFTWARE DIRECTLY FROM PENDENT

MECHANICAL FEATURES
40' X 60" TABLE SIZE
- FITS THROUGHT STANDARD COMMERICAL DOUBLE DOORS
16 MM HOLES ON 50 MM CENTERS
- COMPATIBLE WITH BLUCO FIXTURES
- ZINC PHOSPHATE COATED
- HEAVY DUTY MOBILE CASTERS
DRAWER AND CUBBY FOR TOOL STORAGE
REMOVABLE DEBRIS TRAYS FOR EASY CLEANING
ADJUSTABLE TEACH PEDENT STAND AND MAGNETIC BASE
MOBILE OPERATOR STATION
- E-STOP
- CYCLE START/STOP
- LASER ENABLE/DISABLE (DRY RUN)

STANDARD FEATURES - COBOT BASE MODEL
- ABB GOFA COBOT CRB-1500/12
- ROBOT PENDANT CONTROLLER
- LIGHTWELD CORE SOFTWARE INTERFACE
- PORTABLE WELDING TABLE
- OPERATOR STATION WITH E-STOP
