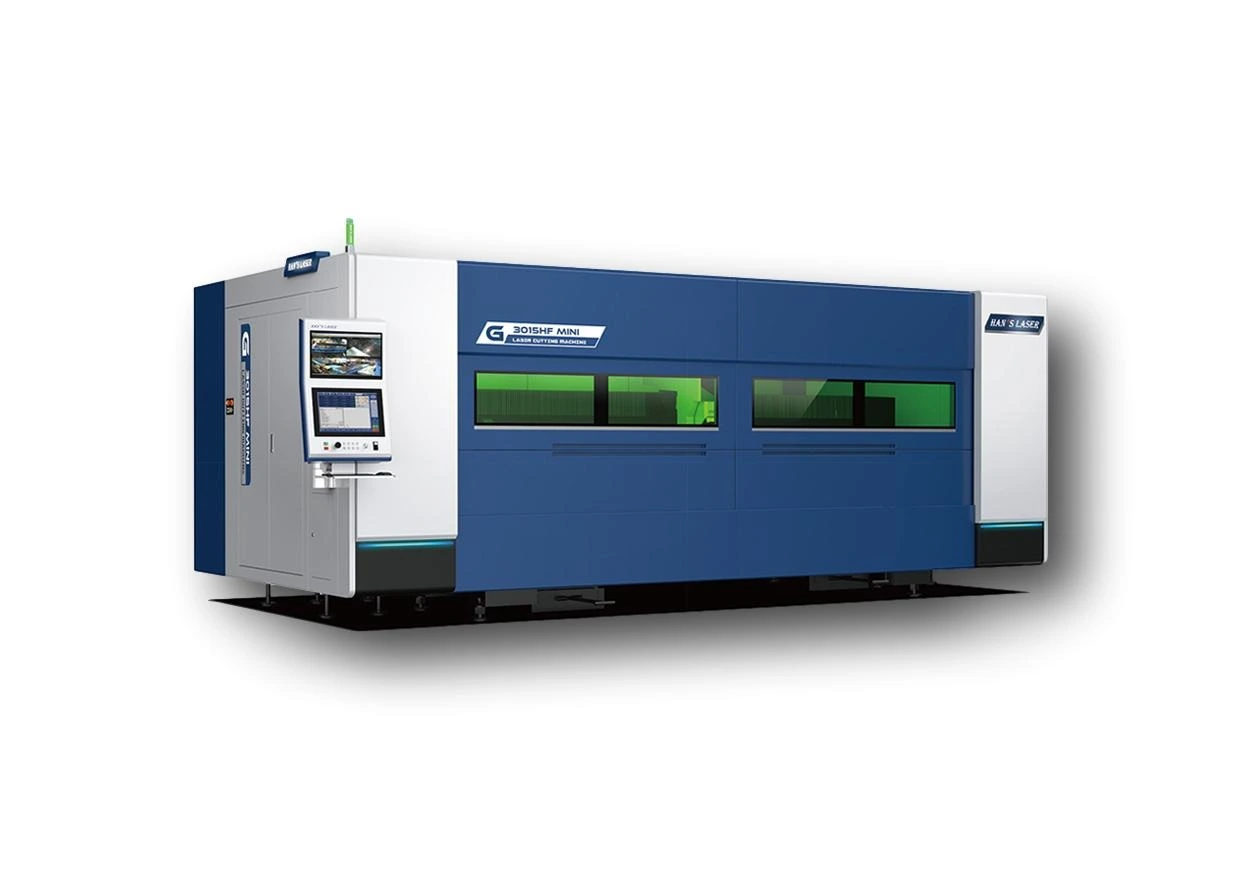

NEW HANS LASER G3015MINI -S

HANS LASER (NEW) MODEL G3015HF MINI 12KW FIBER LASER

10' X 5.1' SHEET (3100 MM X 1550 MM)
HAN'S LASER AUTO-FOCUS CUTTING HEAD
12KW HANS FIBER RESONATOR W/ CHILLER
140 MINUTE MAXIMUM SPEED
1.7 G ACCELERATION
0.05 MM PRECISION
0.03 MM REPETITIVENESS
4,739 LB WEIGHT CAPACITY (2150 KG)
122" X AXIS (3100 MM)
63" Y AXIS (1600 MM)
16" Z AXIS (400 MM)
AIR COMPRESSOR
TWIN PALLET SYSTEM
BOSCH REXROTH GUIDES
HANS 1001 DIGITAL CONTROL - 17" TOUCHSCREEN
METALIX CNC KAD PROGRAMMING AND NESTING SOFTWARE
- 1 SEAT
CLASS 1 FDA CERTIFIED
2 YEAR WARRANTY - PARTS LABOR

STANDARD FEATURES
STRONGER EXCHANGE TABLE DESIGN
-- ENSURE GOOD CUTTING QUALITY
-- ERGONOMICALLY LOADING AND INLOADING FOR SMALL PIECES
25% SPACE SAVING - COMPACT DESIGN WITH MAINTENACE-FRIENDLY ACCESS
-- ULTRA-HIGH POWER SUITABLE - AVOID THE RISK OF HIGH POWER LASERS
HEAT DEFORMATION, HIGHER POWER LEADS TO HIGHER PRODUCTIVITY
- BOSCH REXROTH INDRAMAT DRIVE AND SERVO SYSTEM
- ATLANTA RACK-PINION HELICAL GEAR
- VIDEO MONITOR
1 CAMERA INSIDE THE MACHINE ENCLOSURE
1 CAMERA OVERLOOKING THE PALLET SYSTEM
ALLOWS REMOTE VIEWING VIA TEAMVIEWER SOFTWARE
- AUTO LUBRICATION SYSTEM
- STRESS-RELIEVED FRAMES MACHINED AS ONE UNIT

OPTIONS AVAILABLE - PRICE ON REQUEST
- 6, 12 AND 20 KW IPG FIBER RESONATORS
- AIR CUTTING COMPRESSOR SYSTEM UPGRADE
- DONALDSON DUST COLLECTOR - 4 FILTERS
- GAS MIXER FOR ALUMINUM CUTTING
- AUTO LOAD-UNLOAD SYSTEMS - OVER/UNDER CARTS
GANTRY SYSTEM
5 SHELF/8 SHELF/10-SHELF TOWER
- WORK LIFTERS UNDER PALLET
- ADDITIONAL METALIX SOFTWARE SEAT
- METALIX SOFTWARE TRAINING
- TV CAMERA PACKAGE
- UL LISTED TRANSFORMER
- UL LISTING CERTIFICATE FOR AUTOMATION
- UL LISTING CERTIFICATE FOR LASER
Power: 380 (3-Phase)
