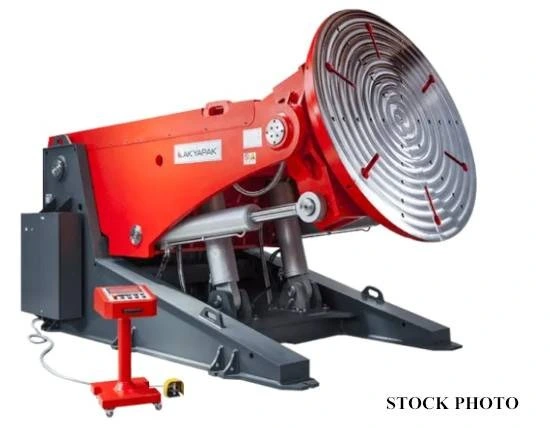

NEW AKYAPAK SHR-7000

AKYAPAK (NEW) MODEL SRH-7000 WELDING POSITIONER

15,400 LBS CARRYING CAPACITY
5.9" MAX FRONTAL LOADING CENTER
5.9" MAX SIDE LOADING CENTER
0-110 MAX TABLE TILTING
380 VOLT INPUT POWER
3 HP ROTATION MOTOR
3 HP HYDRAULIC UNIT MOTOR
0.1 RPM MIN TABLE ROTATION MOTOR
0.9 RPM MAX TABLE ROTATION MOTOR
51.2" TABLE DIAMETER
5-72# T-SLOTS
110.2" LENGTH OVERALL
40.9" MIN HORIZONTAL TABLE HEIGHT
68.5" MAX HORIZONTAL TABLE HEIGHT
33.5" HEIGHT OF HORIZONTAL ROTATION
61" WIDTH
500 AMP EARTHING

STANDARD FEATURES
- ADJUSTABLE ROTATING SPEED
- REMOTE CONTROLLER W/5 METER CABLE LENGTH
- DIGITAL SPEED INDICATOR ON THE CONTROLLER PANEL
FOR MONITORING ROTATION
- WELDING - CHASSIS MECHANISM
- MOTORS WITH BRAKE AND FORCED FAN COOLING

OPTIONS AVAILABLE - PRICE ON REQUEST
- PROGRAMMABLE AUTOMATION CONTROL
- TO RECORD THE POSITIONS AND PROGRAMMABLE MAIN
STEPS
- SYNCHRONOUS OPERATION W/COLUMN AND BOOM SYSTEMS
- WIRELESS REMOTE CONTROLLER
- SPECIAL INSULTIONS FOR WORKSITE CONDITIONS
