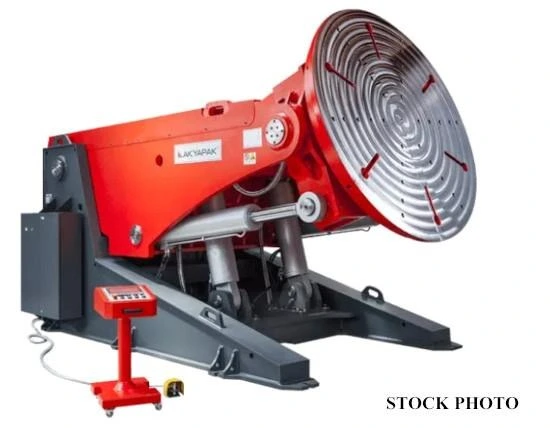

AKYAPAK (NEW) MODEL SRH-3500 WELDING POSITIONER
7,700 LBS CARRYING CAPACITY
5.9" MAX FRONTAL LOADING CENTER
5.9" MAX SIDE LOADING CENTER
0-110 MAX TABLE TILTING
380 VOLT INPUT POWER
1.5 HP ROTATION MOTOR
2 HP HYDRAULIC UNIT MOTOR
0.1 RPM MIN TABLE ROTATION MOTOR
0.9 RPM MAX TABLE ROTATION MOTOR
38" TABLE DIAMETER
6-60 # T-SLOTS
92" LENGTH OVERALL
42" MIN HORIZONTAL TABLE HEIGHT
71" MAX HORIZONTAL TABLE HEIGHT
33" HEIGHT OF HORIZONTAL ROTATION
53" WIDTH
500 AMP EARTHING
STANDARD FEATURES
- ADJUSTABLE ROTATING SPEED
- REMOTE CONTROLLER W/5 METER CABLE LENGTH
- DIGITAL SPEED INDICATOR ON THE CONTROLLER PANEL
FOR MONITORING ROTATION
- WELDING - CHASSIS MECHANISM
- MOTORS WITH BRAKE AND FORCED FAN COOLING
OPTIONS AVAILABLE - PRICE ON REQUEST
- PROGRAMMABLE AUTOMATION CONTROL
- TO RECORD THE POSITIONS AND PROGRAMMABLE MAIN
STEPS
- SYNCHRONOUS OPERATION W/COLUMN AND BOOM SYSTEMS
- WIRELESS REMOTE CONTROLLER
- SPECIAL INSULTIONS FOR WORKSITE CONDITIONS
