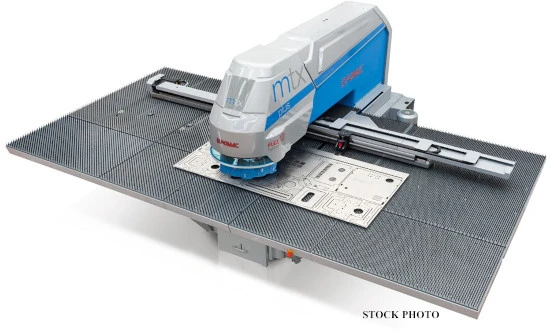

NEW EUROMAC MTX FLEX 6 1250/30-2500

EUROMAC (NEW) MODEL MTX FLEX12 1500/22-2500 TURRET
PUNCH

33 TONS MAXIMUM PUNCHING FORCE
Y-AXIS WITH MULTITOOL/SINGLE
50"-51" - 1250 Y-AXIS W/SINGLE TOOL
100" - 2500 X-AXIS
UP TO 32' AUTOMATIC REPOSITIONING IN X
+/- 0.1 TO 31 NUMERICALLY CONTROL STROKE DEPTH
STANDARD HYDRAULIC SERVOMOTOR-CONTROLLED SYSTEM
+/- 0.002 POSITION ACCURACY
+/- 0.005" PRECISION IN FORMING REPEATABILITY
3 BIDIRECTIONAL AUTOINDEX STATIONS
.433" OPENING OF CLAMPS
2 AUTOMATIC POSITIONING CLAMPS

1/MIN MAX HIT RATE
375 PUNCHING W/1" PITCH
1000 NIBBLING W/.039" PITCH
2000 MARKING
0.23" - .250" THICKNESS RANGE
330 LBS MAX WEIGHT AT REDUCED AXIS SPEED
6 USB PORT
8.5 (kW) INSTALLED POWER
4.5 (kW/h) AVERAGE CONSULPTION
21,570 LBS APPROX WEIGHT X=2500
193" X 143" OVERALL DIMENSIONS X =2500

3 AUTOMINDEXED "D" STATIONS CAPABLE OF ROTATING
0.01 INCREMENTS CABLE TO HOLD
- 1 SINGLE STATION A, B, C, OR D (NOT INCLUDED)
- 6 AUTOINDEX TOOLS UP TO .936" IN FMTE6
(NOT INCLUDED)
- 4 AUTOINDEX TOOLS UP TO 1.25" IN FMTE4
(NOT INCLUDED)
- 10 AUTOINDEX TOOLS 2 UP TO .936" - 8 UP TO .500
IN FMTE10 (NOT INCLUDED)
- 3 FIXED NO ROTATIONAL STATIONS CAPABLE TO HOLD
MULTITOOLS OR SINGLE TOOLS UP TO D SIZE
- RIDIG MONO-BLOCK C-FRAME (NO WELDING POINTS)
WITH 3 OPEN SIDES TO HELP LOADING ALL TYPE OF
SHEET FORMATS AND ALLOW SHEET FLIP OR ROTATIONS
- FLEX: HYDRAULIC SERVOMOTOR-CONTROLLED SYSTEM
- PROGRAMMABLE ADJUSTMENT OF STROKE LENGTH, SPEED
ACCELERATION AND DWELL TIME
- AUTOMATIC HYDRAULIC CLAMP POSITIONING
PROGRAMMED BY CNC (CLAMP OPENING .433")
- NR.2 HYDRAULIC CLAMPS (50 BAR)
- AUTOMATIC LUBRICATION SYSTEM FOR TOP DRILLED
SINGLE PUNCHES AND MULTITOOLS
- STANDALONE MACHINE CONTROL
- TABLES W/BRUSHES
- FRONT OVERTURNING TABLE EXTENSIONS L. 32.67"
- EXTERNAL COOLING SYSTEM
- UPS SYSTEM: PROTECTS THE CONSOLE-PC FROM
VOLTAGE DROPS AND GRANTS THE POWER SUPPLY UP TO
30 MINUTES IN CASE OF ELECTRICAL INTERRUPTION
- DIE HOLDERS: 2 D TYPE, 1C TYPE, 2B TYPE, 1 B/A
REDUCTION
- PUNCH REDUCTIONS: n 1D/C, n.2 D/B, N. 1 B/A
- SET OF KEYS (3-4-6-8 MM SOCKET HEAD SCREWS,
GREASER)
- PRESSURE GAUGE
- INSTRUCTION MANUAL (PAPER ELECTRONIC FORMAT)
- PREDISPOSITION FOR TELE SERVCIE (INTERNET
CONNECTION REQUIRED)
- USB MEMORY STICK
- ELECTRICAL PREDISPOSITION FOR LOADING/
UNLOADING SYSTEM

OPTIONS AVAILABLE - PRICE ON REQUEST
- SOFTWARE METALIX
- THICK TURRET TORQUE STAND FIXTURE
- DYNAMOMETRIC KEY FOR MULTITOOL
- MULTITOOL FMTE10
- MULTITOOL FMTE4
- COMBINED BRUSHES AND BALL TABLES
