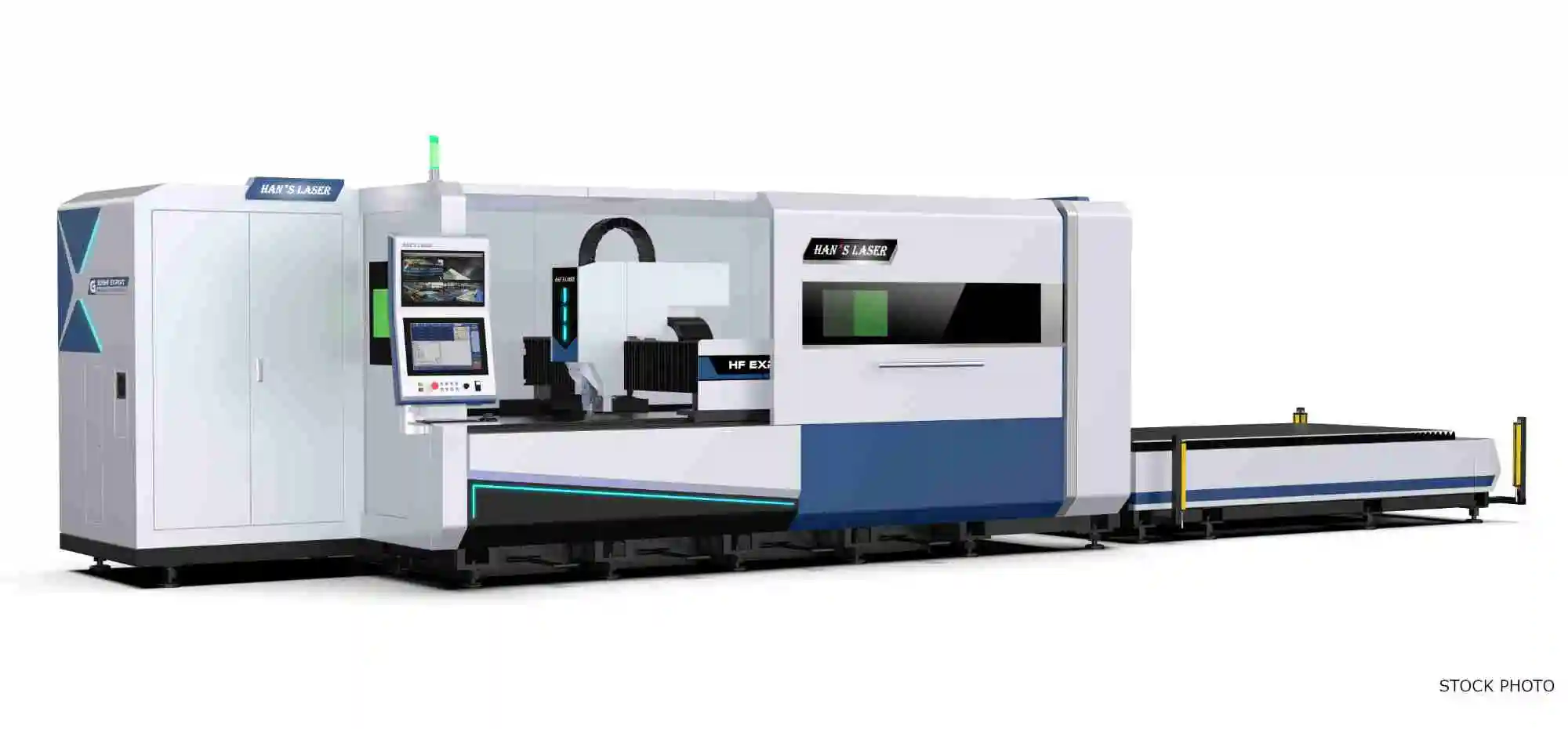

NEW HANS LASER 4020HF EXPERT

HANS LASER (NEW) MODEL 4020HF EXPERT FIBER LASER
20 KW HANS FIBER RESONATOR

13' X 6' 6" SHEET (4100MM X 2100MM)
20 KW HANS FIBER RESONATOR WITH WATER CHILLER
3G FORCE
919 FPM MAX X Y AXIS POSITIONING SPEED (280 M/M)
161" X AXIS (4100 MM)
83" Y AXIS (2100 MM)
6" Z AXIS (150 MM)
+/- 0.0012 X AND Y AXIS POSITION ACCURACY (.03 MM)
+/- 0.0002 X AND Y AXIS POSITION ACCURACY (.02 MM)
8,448 LB WEIGHT CAPACITY (3840 KG)
TABLES - TWIN PALLET SYSTEM

STANDARD FEATURES
- GUDEL RACK-PINION HELICAL GEAR
- BOSCH REXROTH SERVO DRIVE
- HANS 1001 DIGITAL CONTROL - 17" TOUCHSCREEN
- METALIX CNC KAD PROGRAMMING NESTING SOFTWARE
1 SEAT OF SOFTWARE INCLUDED
- VIDEO MONITOR
1 CAMERA INSIDE MACHINE ENCLOSURE
1 CAMERA OVERLOOKING THE PALLET SYSTEM
CAN BE USED FOR REMOTE MONITORING DIAGNOSTICS
- AUTO LUBRICATION SYSTEM
- STRESS-RELIEVED FRAMES MACHINED AS ONE UNIT
- CLASS 1 FDA CERTIFIED
- 2 YEAR WARRANTY - PARTS LABOR

OPTIONS AVAILABLE - PRICE ON REQUEST
- 12, 30 AND 40 KW HANS FIBER RESONATORS
- NITROGEN GENERATION SYSTEM
- AIR CUTTING COMPRESSOR SYSTEM UPGRADE
- DONALDSON DUST COLLECTOR - 6 FILTERS
- GAS MIXER FOR ALUMINUM CUTTING
- AUTOMATION SYSTEMS
- WORK LIFTERS UNDER PALLET (ANTI-SCRATCH)
- ADDITIONAL METALIX SOFTWARE SEAT
- METALIX ON-SITE SOFTWARE TRAINING
- UL LISTED TRANSFORMER
- UL LISTING CERTIFICATE FOR AUTOMATION
- UL LISTING CERTIFICATE FOR LASER
- MEZZANINE
