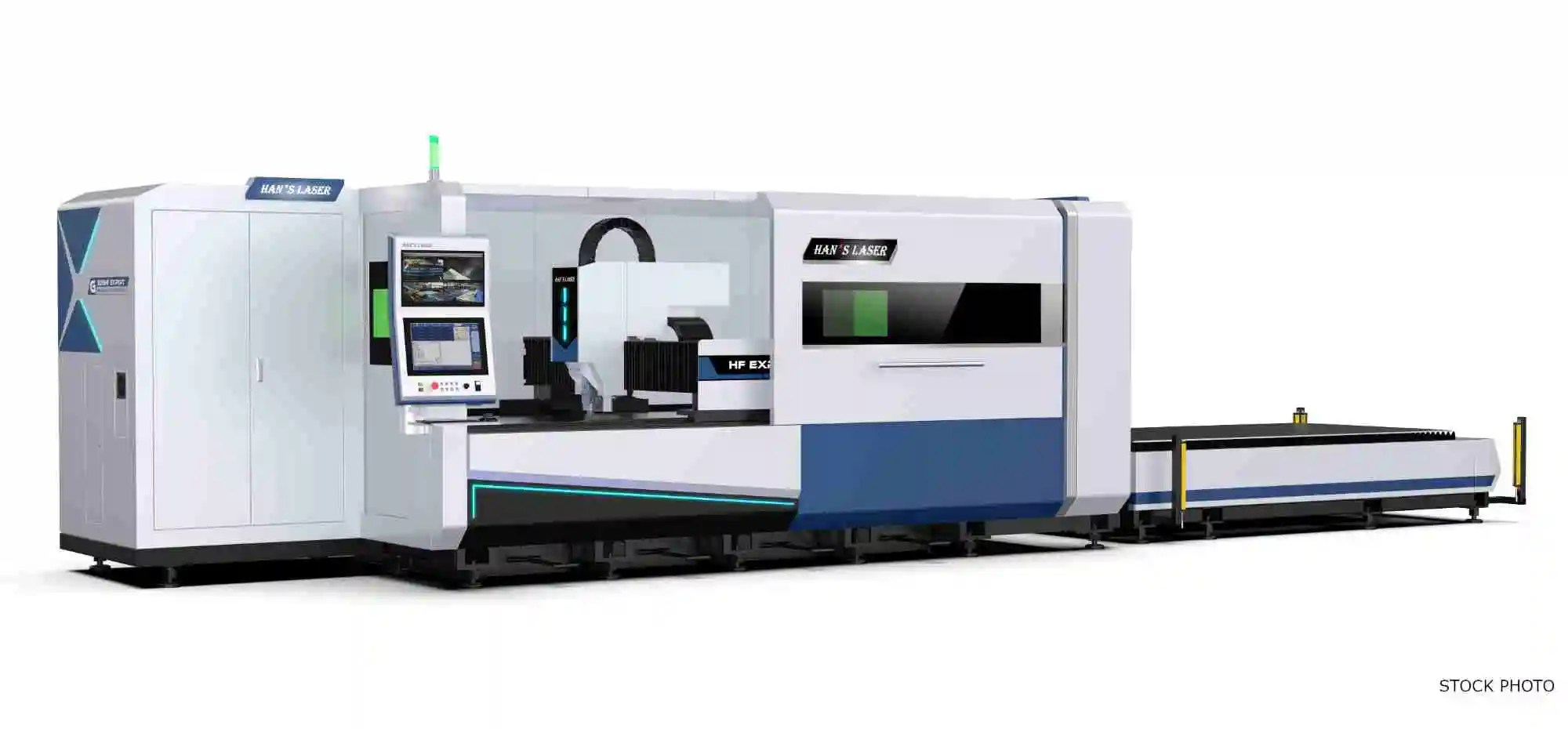

NEW HANS LASER 3015HF EXPERT

HANS LASER (NEW) MODEL 3015HF EXPERT FIBER LASER
30 KW HANS RESONATOR

5' X 10' SHEET (3100 MM X 1600 MM)
30 KW HANS FIBER RESONATOR WITH WATER CHILLER
HAN'S LASER AUTO-FOCUS CUTTING HEAD
3G FORCE
919 FPM MAX X Y AXIS POSITIONING SPEED (280 M/M)
122" X AXIS (3100 MM)
63" Y AXIS (1600 MM)
6" Z AXIS (150 MM)
+/- 0.0012 X AND Y AXIS POSITION ACCURACY (.03 MM)
+/- 0.0002 X AND Y AXIS POSITION ACCURACY (.02 MM)
4,730 LB WEIGHT CAPACITY (2150 KG)
TABLES - TWIN PALLET SYSTEM

STANDARD FEATURES
- GUDEL RACK-PINION HELICAL GEAR
- BOSCH REXROTH INDRAMAT DRIVE AND SERVO SYSTEM
- HAN'S 1001 DIGITAL CONTROL - 17" TOUCHSCREEN
- METALIX CNC KAD PROGRAMMING AND NESTING SOFTWARE
1 SEAT OF SOFTWARE INCLUDED
- VIDEO MONITOR
1 CAMERA INSIDE THE MACHINE ENCLOSURE
1 CAMERA OVERLOOKING THE PALLET SYSTEM
CAN BE USED FOR REMOTE MONITORING DIAGNOSTICS
- AUTO LUBRICATION SYSTEM
- STRESS-RELIEVED FRAMES MACHINED AS ONE UNIT
- CLASS 1 FDA CERTIFIED
- 2 YEAR WARRANTY - PARTS LABOR

OPTIONS AVAILABLE - PRICE ON REQUEST
- 12 AND 20 KW HANS FIBER RESONATORS
- NITROGEN GENERATION SYSTEM
- AIR CUTTING COMPRESSOR SYSTEM UPGRADE
- DONALDSON DUST COLLECTOR - 4 FILTERS
- GAS MIXER FOR ALUMINUM CUTTING
- AUTOMATION SYSTEMS
- WORK LIFTERS UNDER PALLET (ANTI-SCRATCH)
- ADDITIONAL METALIX SOFTWARE SEAT
- METALIX ON-SITE SOFTWARE TRAINING
- UL LISTED TRANSFORMER
- UL LISTING CERTIFICATE FOR AUTOMATION
- UL LISTING CERTIFICATE FOR LASER
- MEZZANINE
Power: 380 (3-Phase)
