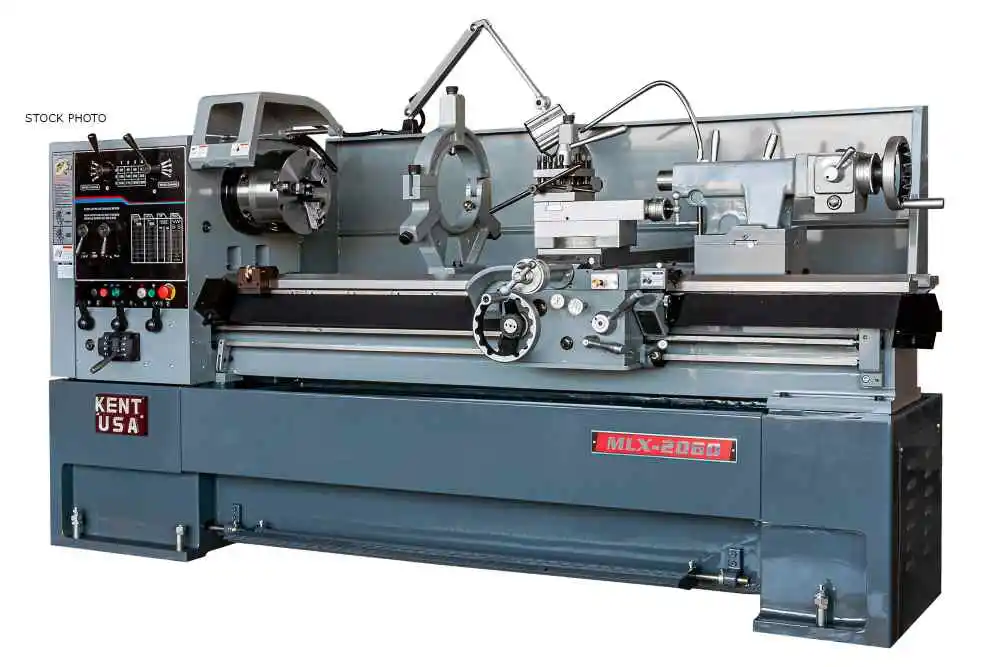

NEW KENT USA MLX-1740T

KENT USA (NEW) MODEL MLX-1740T ENGINE LATHE

CAPACITY
- 17" SWING OVER BED
- 10.875" SWING OVER CROSS SLIDE
- 24.5" SWING OVER GAP
- 8" GAP LENGTH (W/ FACE PLATE)
- 12" BED WIDTH
- 44" BETWEEN CENTERS

HEADSTOCK
- 3.125" SPINDLE BORE
- D1-8 SPINDLE HOLE CAMLOCK
- 85MM 1/19.18 - MT#5 SPINDLE TO SLEEVE TAPER
- 12 STEPS, 26-1500 RPM SPINDLE SPEED

CARRIAGE
- 17.3" BEARING LENGTH ON WAYS
- 7.25" CROSS SLIDE WIDTH
- 10.6" CROSS SLIDE TRAVEL
- 4.75" TOP SLIDE (COMPOUND) TRAVEL

FEED BOX
- 45 INCH THREADS (2-72 TPI)
- 39 METRIC THREADS (0.2-14 MM)
- 18 MODULAR THREADS RANGE (0.3 -3.5 M)
- 21 DIAMETRAL PITCH RANGE (8-44 DP)
- 0.0015 - 0.04 IPR LONGITUDINAL FEEDS
- 0.00075 - 0.02 IPR CROSS FEEDS

TAILSTOCK
- 2.3" QUILL DIAMETER W/TANG
- 5" QUILL TRAVEL
- MT#4 QUILL TAPER

POWER
- 10 HP MAIN MOTOR
- 115V CONTROL CIRCUIT VOLTAGE
- 230 VOLT, 3 PHASE, 60 HZ, 40 AMP
- 1/8 HP COOLANT PUMP MOTOR

FEATURES
- SOLID FULL-LENGTH CASTING BASE
- FRONT LOADING CHIP TRAY
- ADJUSTABLE OVER-LOAD FEED CLUTCHES
- QUICK-REVERSAL FEED FROM APRON
- FULL-LENGTH SAFETY FOOT BRAKE
- SPINDLE JOG BUTTON CONTROL
- ONE-SHOT LUBE FOR APRON, CARRIAGE BED WAYS
- DUAL INCH/METRIC CALIBRATED TAILSTOCK QUILL
WITH KNOCKOUT TANG
- HEAVY-DUTY 2-SPEED TAILSTOCK
- DUAL INCH/METRIC DIALS WITH QUICK-CHANGE SLEEVE
- INTERLOCK BREAKER SWITCH ON ELECTRICAL CABINET

STANDARD EQUIPMENT
- 3-JAW CHUCK (10")
- STEADY REST
- FOLLOW REST
- COOLANT SYSTEM
- FULL-LENGTH SPLASH GUARD
- ELECTRIC CABINET INTERLOCK SWITCH
- HALOGEN WORK LIGHT
- CHUCK COVER WITH INTERLOCK
- THREAD CHASING DIAL
- MAIN LEADSCREW COVER
- 4 POSITION TOOL POST
- BED MOUNT CARRIAGE STOP

OPTION AVAILABLE - PRICE ON REQUEST
- ACU-RITE 200 DRO (2-AXIS, X=0.0001"/Z=0.0002)
- DRO INSTALLATION CHARGE
- ALORIS CA #4-SET - TOOL POST + 6 HOLDERS
- 4-JAW INDEPENDENT CHUCK (12" D1-8)
- FACE PLATE (12" D1-8)
- ROYAL SPINDLE-TYPE LIVE CENTER (MT #4)
- TAPER TURING ATTACHMENT
- COOLANT ONE GALLON
- MICROMETER CARRIAGE STOP
- 5C FRONT MOUNT HAND WHEEL STYLE COLLET CLOSER
(D1-8)
- 5C LEVER STYLE COLLECT CLOSER
- UPGRADE TO ZERO-SET 3-JAW CHUCK/BACK PLATE
(10" D1-8)
- 460 VOLTS, 3 PHASE, 60 HZ, 20 AMP
Power: (3-Phase)
