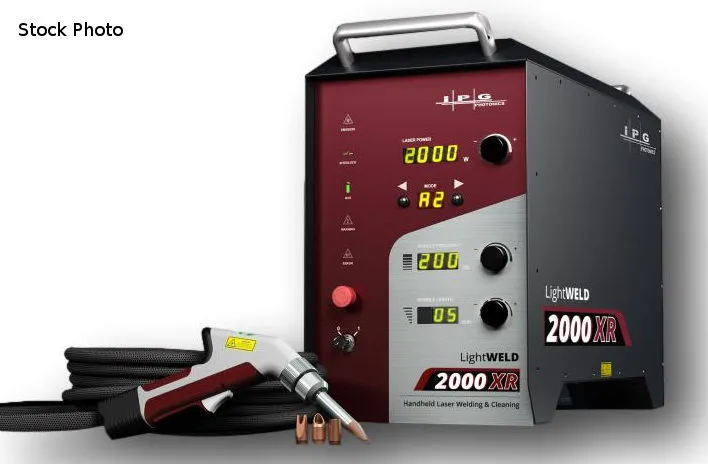

NEW IPG PHOTONICS LIGHTWELD XR 2000

IPG (NEW) MODEL LIGHTWELD XR (EXTENDED RANGE)
2000 HAND-HELD LASER WELDING CLEANING SYSTEM

2000 W LASER POWER
3000 W PEAK PULSE CLEANING POWER

WELDING CAPABILITY
- 8 MM (0.315") STEEL- STAINLESS, GALV., MILD
- 8 MM (0.315") ALUMINUM 3 5 SERIES
- 6.5 MM (0.250") ALUMINUM 6 SERIES
- 7 MM (0.275") TITANIUM NICKEL ALLOYS
- 3 MM (0.120") COPPER
- 15 MM (0.591") WIDTH FOR PRE AND POST WELD
- 100 MODE STORAGE CAPACITY
- 5 MM (0.197") WOBBLE LENGTH
- 300 HZ WOBBLE FREQUENCY

INCLUDES
- IPG LASER WELDING GUN WITH 32' CABLE
- WORKPIECE CLAMP WITH 32' CABLE
- WELDING HELMET WITH IR SHIELD
- (3) CLEANING NOZZLES
- (4) WELDING NOZZLES
- LASER SAFETY GLASSES OD 7+
CHOOSE STANDARD, LARGE FIT OVER OR ADJUSTABLE
- 10' CAT 6 ETHERNET CALBE
- 5 COVER SLIDES
- USER'S GUIDE

FEATURES
- HIGH SPEED, FAST WELDING
- HIGHER QUALITY/MORE CONSISTENT THAN MIG OR TIG
NO DISTORTION, UNDERCUT OR BURN THROUGH
- MINIMAL HEAT-AFFECTED ZONE
- EASY TO SET UP AND EASY TO USE
- REMOVES OILS, RUST AND COATINGS BEFORE WELDING
- REMOVES DEBRIS AND DISCOLORATION AFTER WELDING
- ENHANCED MATERIAL CAPABILITY - CAN PROCESS
METALS WITH DISSIMILAR THICKNESSES AND LOW OR HIGH
ELECTRICAL CONDUCTIVITY

220 VOLT, SINGLE PHASE

CLASS IV SAFETY FEATURES
- KEY SWITCH CONTROL OF LASER SOURCE
- EMERGENCY STOP BUTTON
- FIBER LASER INTERLOCK
- 2-STEP TRIGGER (ENABLE FIRE)
- INTERLOCK TURNS OFF POWER IF THE GUN IS NOT IN
CONTACT WITH THE PARTS

OPTIONS AVAILABLE - PRICE ON REQUEST
- WELDING CABINET
- WIRE FEEDER PACKAGE
Power: 220 (Single)
