NEW HANS LASER TX12036T

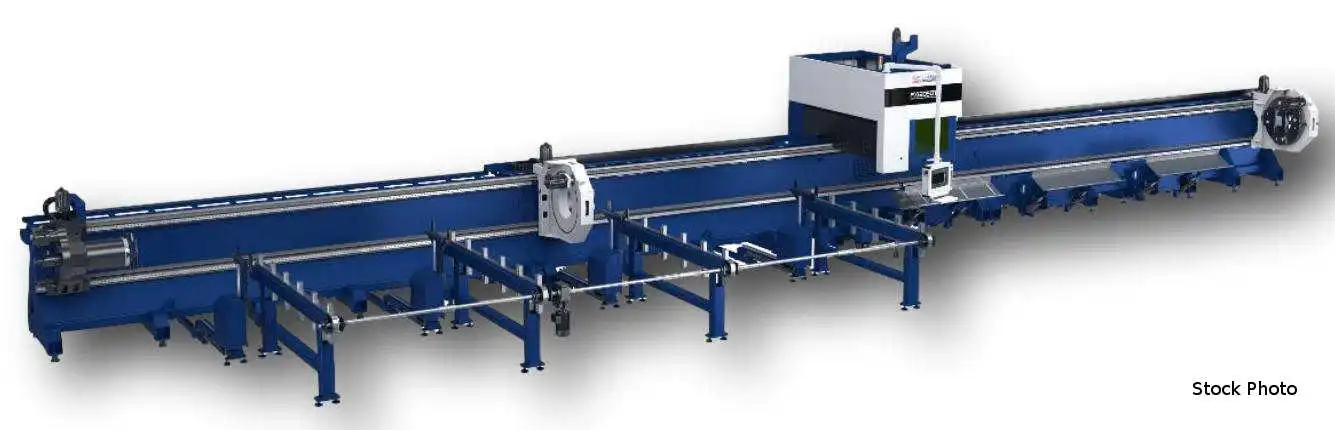

HANS LASER (NEW) MODEL TX12036T FIBER TUBE LASER CUTTING SYSTEM - 12KW HANS

COMPONENTS
- TX12036T TUBE CUTTER
- 903 CONTROL
- 12,000 WATT HANS FIBER RESONATOR
- BEVEL CUTTING HEAD
- LANTEK 5-AXIS PIPE CUTTING SOFTWARE
- WATER CHILLER
- POWER SUPPLY
- 39' MULTI-TUBE FEEDING SYSTEM
- 39' FLOATING UNLOADING SYSTEM
- PROFILE CUTTING FUNCTION PACKAGE

CAN PROCESS PIPES
- 39' 4" LONG
- 1.575" TO 14" DIAMETER
- 41' X AXIS STROKE
- 15.7" Y AXIS STROKE
- INFINITE ROTATION OF A, B, AND C AXIS STROKE
- 13.7" Z AXIS TRAVEL
- +/- 0.00039 X/Y AXIS REPEATABILITY
- 197 FT/MIN X/Y SINGLE-AXIS POSITIONING SPEED
- 40 RPM A/B/C AXIS POSITIONING SPEED
- 45 DEGREE BEVEL CUTTING
- 19' 8" TO 39' 4" FEEDING LENGTH
- 39' 4" UNLOADING LENGTH
- 3/8" END CUT
- 380 VOLTS, 3 PHASE
- IP54 POWER SUPPLY PROTECTION
Power: 380 (3-Phase)
