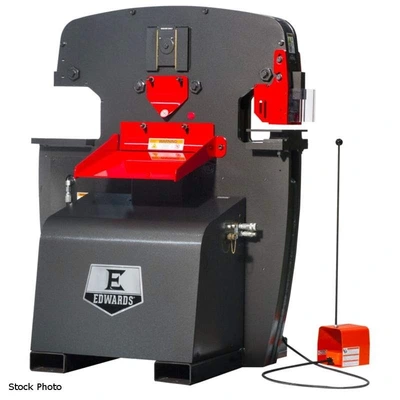

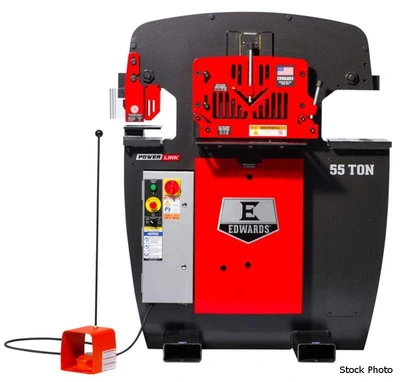

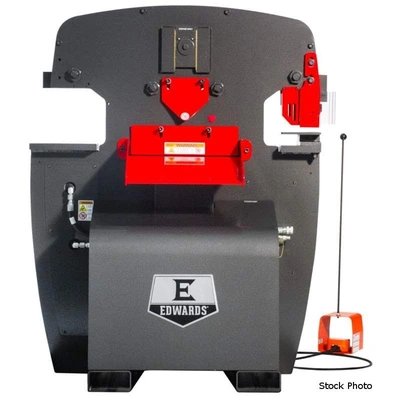

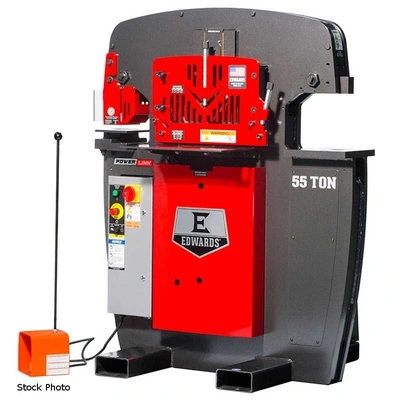

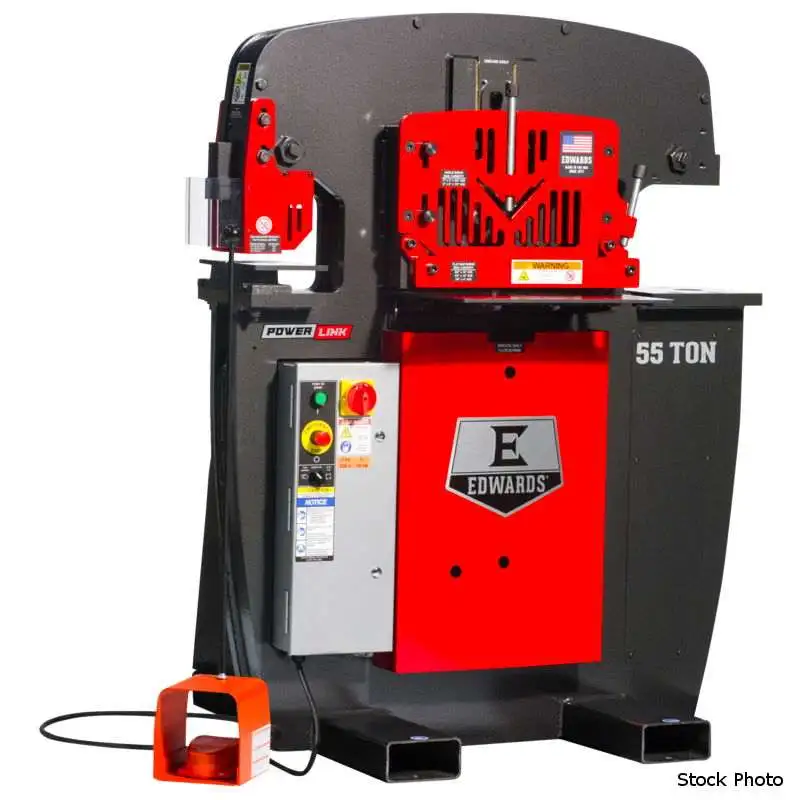

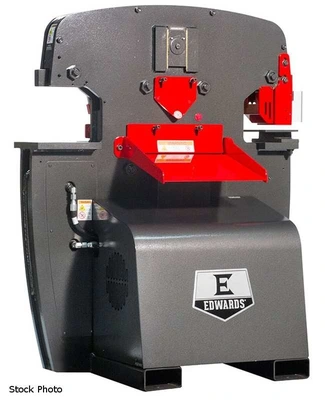

NEW EDWARDS IW55-3P460 55-TON

EDWARDS (NEW) MODEL IW55-3P460 55-TON IRONWORKER
WITH 4 STATIONS

PUNCH
- 55 TON RATED CAPACITY
- 1-1/16" DIAMETER IN 5/8" A36 MAXIMUM CAPACITY
- 1-1/4" STROKE
- 7-1/2" THROAT DEPTH
- 8-1/8" OPEN HEIGHT
- 6-7/8" SHUT HEIGHT
- 39-9/16" WORK HEIGHT

FLAT BAR SHEAR
- 3/8" X 14" /1/2" X 12" / 3/4" X 4" MAX CAPACITY
- 7/8" MAXIMUM ROUND
- 7/8" MAXIMUM SQUARE
- 34-1/2" WORK HEIGHT

ANGLE SHEAR
- 3" X 3" X 3/8" / 4" X 4" X 1/4" MAX CAPACITY
- 39-7/8" WORK HEIGHT

OPEN STATION
- 11-3/16" THROAT DEPTH
- 8-1/8" OPEN HEIGHT
- 6-7/8" SHUT HEIGHT
- 1-1/4" STROKE
- 34-1/2" WORK HEIGHT

GENERAL SPECIFICATONS
- POWERLINK
- 5 HP, 460 VOLTS, 3 PHASE, 14 AMPS
- 1725 RPM
- 3-1/2 GPM - 1 STAGE HYDRAULIC PUMP
- 2,500 PSI VALVE PRESSURE
- 7 GALLON RESERVOIR
- 2-1/2" RAM CYLINDER

OPTIONS AVAILABLE - PRICE ON REQUEST
- 3 PHASE, 575 VOLTS, 6 AMPS
- 1 PHASE, 230 VOLTS, 23 AMPS
- BRAKES WITH 4-WAY DIE - 7", 8", 10"
- PRESS BRAKE BACK GAUGE
- 48" AUTO CUT
- 48" BACK GAUGE
- FABRICATOR'S PROTRACTOR
- ACCESSORY LIGHT
- ANGLE NOTCHER
- COPER NOTCHER 2-1/2" X 4" X 5/16" CAPACITY
- PIPE NOTCHER
- TURRET PIPE NOTCHER
- NOTCHER BLADES
- PEDESTAL DIE TABLE
- 241 PUNCH ASSEMBLY
- OVERSIZE PUNCH ASSEMBLY
- STRIPPER REDUCER PLATE
- URETHANE STRIPPER
- QUICK CHANGE PUNCH ASSEMBLY
- GAUGING TABLE KIT
- MULTI SHEAR
- ROD SHEAR
Power: 460 (3-Phase)
