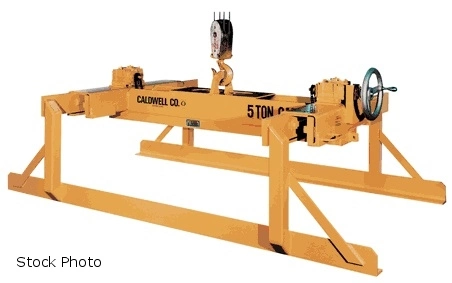

NEW CALDWELL 60-10-72

CALDWELL (NEW) MODEL 60-10-72
HEAVY DUTY SHEET LIFTER

20,000 LBS CAPACITY
SINGLE LIFTING BALL WITH 4" X 7" HOOK OPENING
16" BUNDLE WIDTH MINIMUM
72" BUNDLE WIDTH MAXIMUM
16" BUNDLE HEIGHT MAXIMUM
30" ESTIMATED HEADROOM
96" GRABSHOE LENGTH
3.5" GRABSHOE WIDTH

FEATURES
- VERSATILE HANDLING OF BUNDLED, SHEETS, PLATE
AND OTHER MATERIAL STACKED HORIZONTALY
- LOW HEADROOM DESIGN FOR OPTIMUM LIFTING
CAPABILITIES
- ONE PERSON OPERATION MINIMIZES HANDLING COST
- SELF-LOCKING WORM-GEAR FOR LEG ADJUSTMENT
DRIVE IS STANDARD
- EASY ADJUSTMENT FOR DIFFERENT SHEET WIDTHS
- RACK AND PINION LEG DRIVE
- DESIGNED FOR EASE OF MAINTENANCE
- DESIGNED FOR GREATER SHEET WIDTH RANGE
- DESIGNED AND MANUFACTURED TO ASME B30.20

OPTIONS AVAILABLE - PRICE ON REQUEST
- HAND WHEEL LOCKOUT
- MOTORIZED LEG ADJUSTMENT WITH PENDANT CONTROLS
- BATTERY POWERED MOTORIZATION
- CHAIN-WHEEL LEG ADJUSTMENT
- EXTENDED LENGTH HAND WHEEL LEG ADJUSTMENT
- END CHAINS WITH PLATE HOOKS (RECOMMENDED FOR
ALL WIDTHS 72" AND GREATER)
- EXTENDED GRAB SHOE LENGTHS AVAILABLE
- ADDITIONAL BUNDLE CLEARANCE AVAILABLE
(LONGER LEGS)
