NEW CIDAN EVO DUO 41

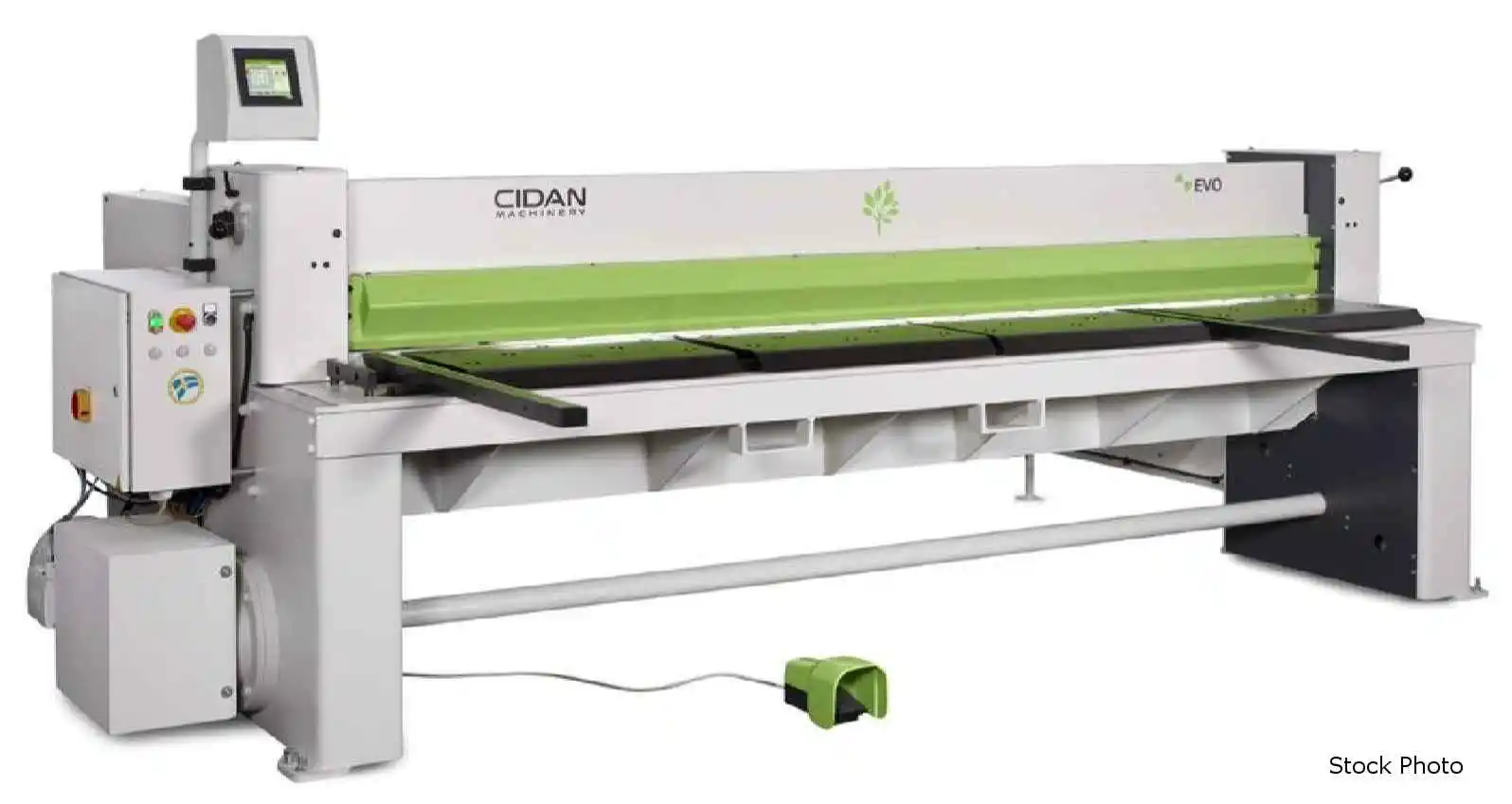

CIDAN (NEW) MODEL EVO DUO 41 MECHANICAL GUILLOTINE
SQUARING SHEAR

161" CUTTING LENGTH
13 GAUGE MILD STEEL
0.145" ALUMINUM
16 GAUGE STAINLESS STEEL
0.002" - 0.014" BLADE GAP
1.6 DEGREE RAKE
28 CUTS PER MINUTE
8 HP

CNC BACKGAUGE WITH CUTLINK TOUCHSCREEN CONTROL
- 0 TO 39.5"
- SAVE UP TO 50 PROGRAMS
- UP TO 99 DIMENSIONS PER PROGRAM
- 999 CUTS PER PROGRAM

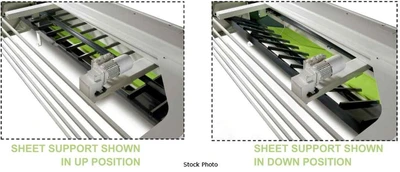

REAR SHEET SUPPORT
- PNEUMATICALLY OPERATED FOR MAXIMUM CONTROL
- CAN ADJUST SPEED BASED ON MATERIAL TYPE
- DROPS MATERIAL TO A RETURN PLATE AT FRONT
SAFETY BARS AT REAR OF SHEAR TO BLOCK CONTACT

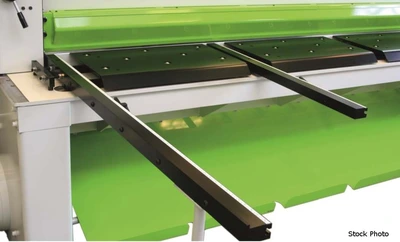

59" SQUARING ARM WITH TILTING GAUGE STOP
(2) 39.3" SUPPORT ARMS
PNUEMATIC HOLD DOWN
- AVOIDS MARKING ON SOFT MATERIAL
- ALLOWS MATERIAL 1.75" FROM SHEAR EDGE
BLADE GAP ADJUSTMENT
- CLEAN CUT FROM 29 GAUGE TO MAX CAPACITY
LED CUTTING LIGHT
DUAL MOTORS

OPTIONS AVAILABLE - PRICE ON REQUEST
- INSTALLATION AND TRAINING

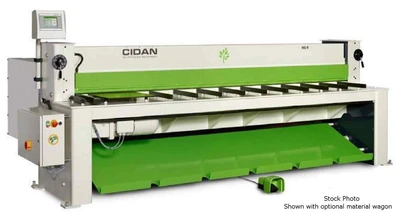

- 161" MATERIAL WAGON
- 29.5" CNC BACK GAUGE WITH CUTLINK CONTROL
IN LIEU OF 39.4"
- PNEUMATIC REAR DROP (IN LIEU OF FRONT RETURN)
- 78.7" SQUARING ARM
- 118.1" SQUARING ARM
- 39.4" SUPPORT ARM
- 59" SUPPORT ARM AND SUPPORT LEGS
- T-GROOVE AND TILTING STOP
- PROTRACTOR SQUARING ARM
- BALLCASTERS ON FRONT TABLE
- EXTRA SET OF SHEAR BLADES
Power: 208/230/460/480 (3-Phase)
