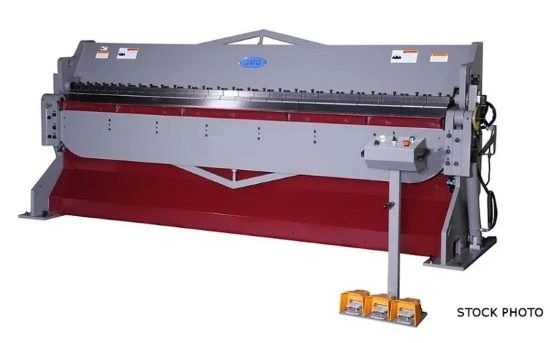

NEW GMC MACHINE TOOLS HBB-1010

GMC (NEW) MODEL HBB-1010 HYDRAULIC BOX PAN BRAKE

10 GAUGE - MILD STEEL CAPACITY
12 GAUGE - STAINLESS STEEL CAPACITY
24 GAUGE MAXIMUM HEMMING THICKNESS
10'1" FINGER LENGTH
135 DEGREE BENDING ANGLE
6" MAXIMUM BOX AND PAN DEPTH
3" LARGE BEAM OPENING
26" MANUAL BACK GAUGE
10 HP, 220V/440V, 3HP
32 GALLON OIL TANK CAPACITY
- SHELL #68 HYDRAULIC OIL
STANDARD EQUIPMENT
- ASSORTED FINGERS
- 26" MANUAL BACK GAUGE WITH ONE SIDE HANDWHEEL
OPERATION
- ANGLE SET UP DIAL
- HYDRAULIC CLAMPING SYSTEM
- FOOT PEDAL CONTROL FOR HYDRAULIC
CLAMPING AND AUTO MODE

OPTION AVAILABLE - PRICE ON REQUEST
- ONE PIECE STRAIGHT FINGER INSTEAD OF ASSORTED
FINGERS
- SAFETY FENCE FOR ENCLOSURE OF THE FRONT SIDE OF
THE MACHINE
- SAFETY LIGHT CURTAIN
- 3" REPLACEMENT FINGER
- 4" REPLACEMENT FINGER
- 5" REPLACEMENT FINGER
- 6" REPLACEMENT FINGER
Power: 220/440 (3-Phase)
