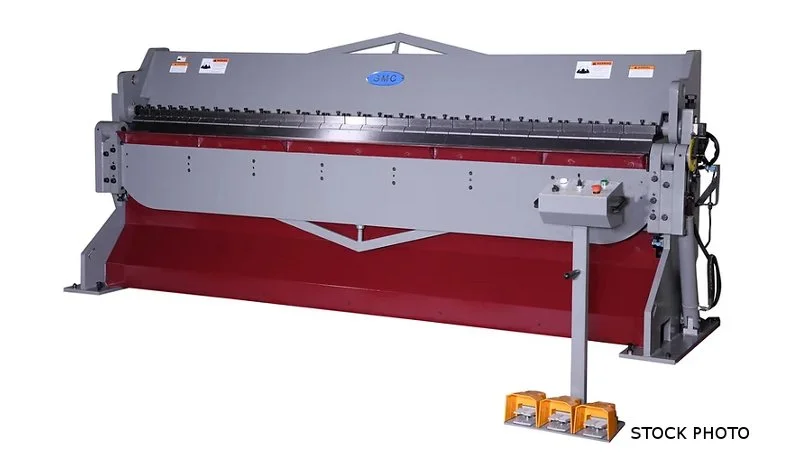

NEW GMC MACHINE TOOLS HBB-1014

GMC (NEW) MODEL HBB-1014 HYDRAULIC BOX PAN BRAKE

10' X 14 GAUGE MILD STEEL CAPACITY (60,000 PSI)
10' X 16 GAUGE STAINLESS STEEL CAPACITY
(85,000 PSI)
10' X 10 GAUGE SOFT ALUMINIUM CAPACITY
(28,000 PSI)
28 GAUGE MAXIMUM HEMMING THICKNESS
10' 1" FINGER LENGTH
135 DEGREE BENDING ANGLE
6" MAXIMUM BOX AND PAN DEPTH
3" LARGE BEAM OPENING
26" MANUAL BACK GAUGE
5HP, 220V/440V, 3HP
17 GALLON OIL TANK CAPACITY
- SHELL #68 HYDRAULIC OIL
STANDARD FEATURES
- HYDRAULIC ADJUSTMENT FOR OPENING
- HYDRAULIC POWER CLAMPING FOR WORKPIECE
- 26" MANUAL BACK GAUGE WITH HANDWHEEL
- 1" MANUAL BEAM ADJUSTMENT - FRONT BANK
- MIN REVERSE BEND IS 3/4" (20mm)
- HEAVY WELDED ALL STEEL CONSTRUCTION FOR
MAXIMUM RIGIDITY
- HYDRAULIC LOGIC SYSTEM CENTRALLY LOCATED
AND QUIET
- WIDE GUIDEBODY ENSURES STRONG, STABLE, SMOOTH
AND ACCURATE MOVEMENT
- TOTAL PIECES FINGER ASSORTMENT - 3"/6PCS,
4"/4PCS, 5"/10PCS, 6"/6PCS
- CENTRAL CONTROL PANELS ON EACH SIDE FOR
CONVENIENT OPERATION
- JOG AND AUTO OPERATIONS MODES
- OVERLOAD PROTECTION AND DISCONNECT SWITCH
STANDARD EQUIPMENT
- ASSORTED FINGERS
- 26" MANUAL BACK GAUGE WITH ONE SIDE HANDWHEEL
OPERATION
- ANGLE SET UP DIAL
- HYDRAULIC CLAMPING SYSTEM
- FOOT PEDAL CONTROL FOR HYDRAULIC
CLAMPING AND AUTO MODE

OPTIONS AVAILABLE - PRICE ON REQUEST
- ONE PIECE STRAIGHT FINGER INSTEAD OF ASSORTED
FINGERS
- SAFETY FENCE FOR ENCLOSURE OF THE FRONT SIDE OF
THE MACHINE
- SAFETY LIGHT CURTAIN
- 3" REPLACEMENT FINGER
- 4" REPLACEMENT FINGER
- 5" REPLACEMENT FINGER
- 6" REPLACEMENT FINGER
Power: 220/440 (3-Phase)
