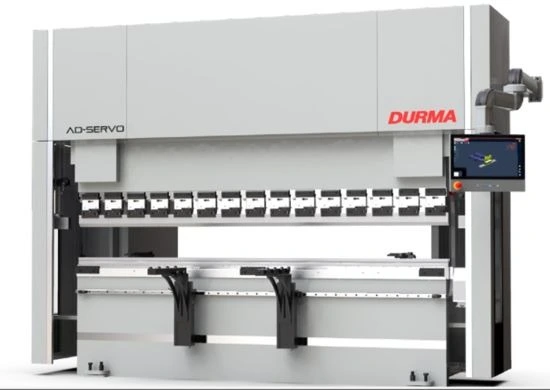

NEW DURMA AD-SERVO 40220

DURMA (NEW) MODEL AD-SERVO 40220 CNC HYDRAULIC
PRESS BRAKE

242 US TONS BENDING FORCE
13' 3" BENDING LENGTH
11' 9" BETWEEN COLUMNS
10.43" STROKE
20.86" DAYLIGHT
17.7" THROAT DEPTH
35.43" TABLE HEIGHT
104" TABLE WIDTH
475"/MIN Y-RAPID SPEED
12"/MIN Y-WORKING SPEED
425"/MIN Y-RETURN SPEED
.0004" Y-AXIS PRECISION
1180"/MIN X-AXIS WORKING SPEED
25.6" X-AXIS DISTANCE
.0019" X-AXIS PRECISION
826.7"/MIN R-AXIS WORKING SPEED
9.8" R-AXIS WORKING DISTANCE
.0039" R-AXIS PRECISION
2362 IN/MIN Z-AXIS WORKING SPEED
114.56" Z-AXIS WORKING DISTANCE
14.75 HP x 2 MOTOR POWER
21 GALLONS x 2 OIL TANK CAPACITY

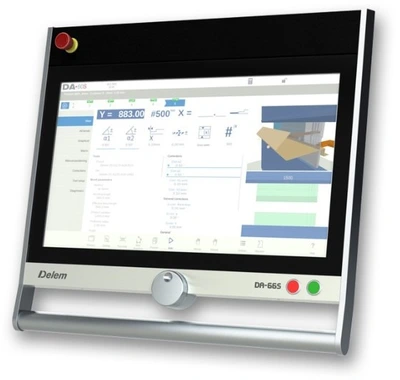

DELEM DA-66S CNC CONTROL
- 2D GRAPHICAL TOUCH SCREEN PROGRAMMING MODE
- 3D VISUALIZATION IN SIMULATION PRODUCTION
- 24" HIGH RESOLUTION COLOR TFT
- DELEM MODUSYS COMPATIBILITY
- USB PERIPHERAL INTERFACING
- USER SPECIFIC APPLICATION SUPPORT
- SENSOR BENDING AND CORRECTION INTERFACE
- PROFILE-S2D OFFLINE SOFTWARE

STANDARD EQUIPMENT
- 4 AXES CNC Y1, Y2, X AND R
- FIESSLER LC5 LASER FINGER SAFETY- MAN HT ADJ
- SERVO DRIVEN BACKGAUGE SYSTEM (X-AXIS)
LINEAR GUIDE AND BALLSCREW DESIGN
- UNIVERSAL WEDGE STYLE PUNCH CLAMP
(FOR AMERICAN OR EUROPEAN STYLE PUNCHES)
- BOTTOM DIE RAIL ADAPTER
(FOR AMERICAN EUROPEAN STYLE DIES)

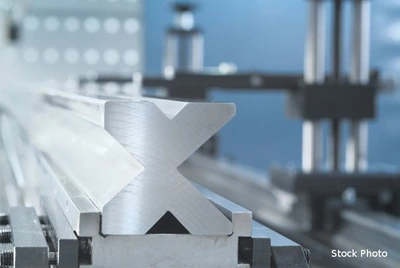

- PRECISION HARDENED GROUND PUNCH/4-WAY DIE
TOP TOOL - ROLLERI P135.75.R08
BOTTOM TOOL - ROLLERI M.460R.85
- 2 SLIDING FRONT SUPPORT ARMS WITH T-SLOT,
TILTING STOP AND FULL LENGTH LINEAR GUIDE
- CNC CONTROLLED MOTORIZED CROWNING

OPTIONS AVAILABLE - PRICE ON REQUEST
- DELEM DA-69S CNC CONTROL
- DBEND 3D OFFLINE SOFTWARE PACKAGE
CAD/CAM IMPORTING AND SIMULATION
- FIESSLER AKAS-3P MOTORIZED HT ADJ LASER SAFETY
- 29.5" THROAT UPGRADE
- LASER ANGLE MEASUREMENT SYSTEM
ADJUSTS PARAMETERS THROUGH BEND CYCLE
EXACT BENDING WITHOUT OPERATOR'S INTERVENTION
PROVIDES THE TARGET ANGLE WITH A SINGLE BEND
PREVENTS MATERIAL AND TIME LOSS
QUICK-RELEASE CLAMPING SYSTEM
- HYDRAULIC PNEUMATIC TOOL CLAMPING SYSTEMS
- MOTORIZED BOTTOM TOOL POSITIONING SYSTEM
- CENTRAL LUBRICATION SYSTEMS (MANUAL/MOTORIZED)
- AIR CONDITIONING FOR ELECTRICAL CABINET
- OIL COOLER/OIL HEATER
- SECOND FOOT PEDAL
- LASER BENDING LINE
- SLIDING SIDE DOORS
- ADDITIONAL BACK GAUGE FINGERS AND
SLIDING FRONT SUPPORT ARMS
- PARKING AREA FOR SUPPORT ARMS
- TANDEM PREPARATION
- SLIDING SIDE DOORS
- CONTROL PANEL ON OPPOSITE SIDE
- 29.5" THROAT

HYDRAULIC OIL ADDITIONAL
