NEW EDWARDS HAT 9000 110-TON
Overview
Specifications
| Dimensions | 64 X 48 X 88 | 64 X 48 X 88 |
|---|---|---|
| Weight | 2,690 | 2,690 |

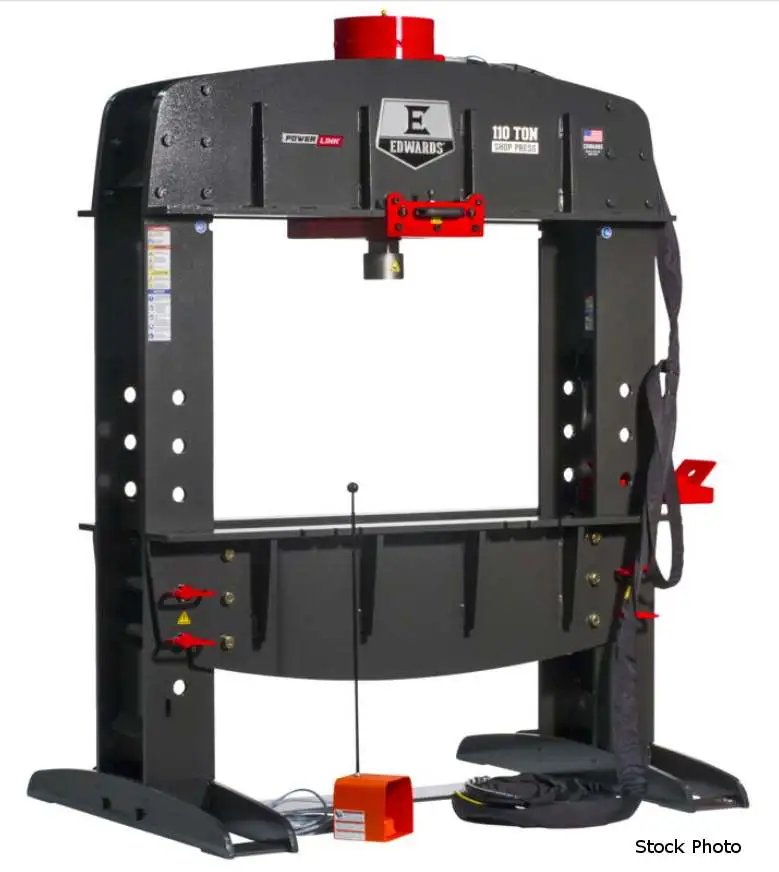

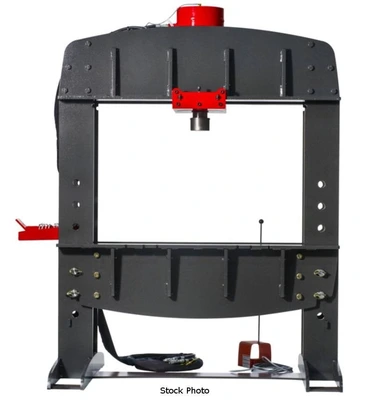

EDWARDS (NEW) MODEL HAT 9000 110-TON SHOP PRESS
110 TON CAPACITY
4" RAM CYLINDER
12-1/4" STROKE
0.186"/SECOND MINIMUM RAM SPEED
0.220"/SECOND MINIMUM RETURN SPEED
3/4" STEEL FRAME THICKNESS
37-7/16" X 48" WORKING AREA
5 HP, 3 PHASE, 208 OR 230 VOLTS, 1725 RPM 14 A
FEATURES
- ROLLING CYLINDER FOR MAXIMUM ADAPTABILITY
- OPEN-SIDED DESIGN ALLOWS MATERIAL TO PASS
THROUGH THE FRAME
- ACCEPTS A VARIETY OF STANDARD CUSTOM TOOLING
- ELECTRIC FOOT PEDAL WITH INTEGRATED JOG CONTROL
- 20' QUICK-CONNECT HOSE FOR PLUG AND PLAY
OPERATION
- HYDRAULIC-ASSIST ADJUSTABLE WORK TABLE HEIGHTS
VIA LIFT CHAINS AND BRACKET
- PRESSURE GAUGE PROVIDES ACCURATE MEASUREMENTS
AND ALLOWS FOR EASY REPEAT PARTS PRODUCTION
CAN BE POWERED BY
- AN EDWARDS IRONWORKER WITH A POWERLINK SYSTEM
- OPTIONAL POWERLINK SYSTEM (INSTALLED)
- OPTIONAL PORTABLE POWER UNIT
OPTIONS AVAILABLE - PRICE ON REQUEST
- 5 HP, 3 PHASE, 460 VOLT, MOTOR, 1725 RPM 7 A
- 5 HP, 1 PHASE, 230 VOLT, MOTOR, 1725 RPM 23 A
- 6 PIECE PRESS TOOLING SET
- PRESS BRAKE TOOLING - 12", 18", 24" OR 32"
- PRESS BRAKE BACK GAUGE
- PRESS BRAKE MOUNTING KIT
- V-BLOCK BASE
Power: (3-Phase)
