NEW QUANTUM MACHINERY GROUP PP200

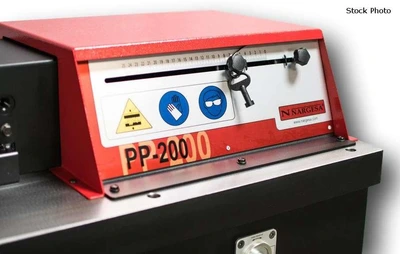

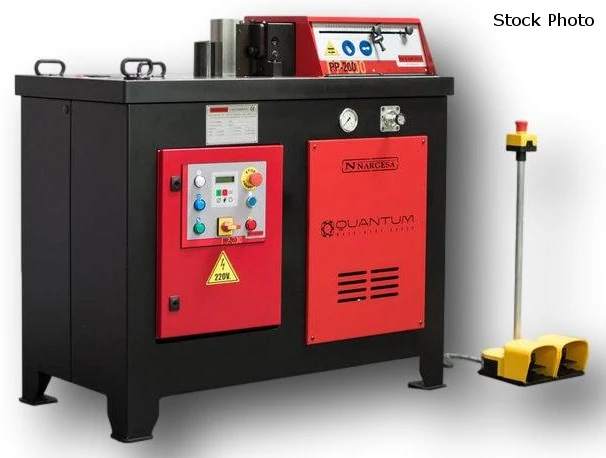

QUANTUM (NEW) MODEL PP200 HORIZONTAL PRESS BRAKE

FUNCTIONS
- BEND
- FOLD
- CUT AND SHAPE IN COLD
- STRETCH AND REDUCE
- INLAY
- NOTCH
- ASSEMBLE

20 TON
0.39" / SECOND WORKING SPEED
1.37" / SECOND RETURN SPEED
9.8" MAXIMUM DISPLACEMENT
0.001" REPEATIVITY

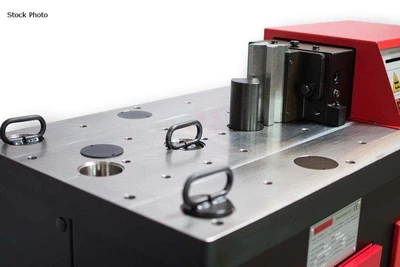

23.6" X 46" TOOLING SUPPORT TABLE W/CLAMPING HOLES
2.9 HP

ELECTRICAL OPTIONS
- 220 VOLT, 3 PHASE, 60 HZ
- 480 VOLT, 3 PHASE, 60 HZ
- 220 VOLT, 1 PHASE, 60 HZ

4-WAY FOLDING/BENDING DIE (METRIC SPECS)
- V16 MM - 1-3 MM SHEET
- V22 MM - 2-4 MM SHEET
- V35 MM - 3-6 MM SHEET
- V50 MM - 4-8 MM SHEET
- 100 MM MAXIMUM FOLDING LENGTH
- 8 MM MAXIMUM FOLDING THICKNESS

4-WAY FOLDING/BENDING DIE (USA SPECS)
- V16 0.630" - 0.039"-0.118" SHEET
- V22 0.866" - 0.790"-0.157" SHEET
- V35 1.378" - 0.118"-0.236" SHEET
- V50 1.969" - 0.157"-0.315" SHEET
- 3.937" MAXIMUM FOLDING LENGTH
- 0.315" MAXIMUM FOLDING THICKNESS

OPTIONS AVAILABLE - PRICE ON REQUEST
- UPGRADE TO CNC VERSION
- PUNCHING DIE
- TWISTED BARS FORMING DIE
- FLAT BAR CUTTING TOOL
- BAR CLAMPS FORMING DIE
- DIE TO STRAIGHTEN OUT PROFILES
- FORMING DIE ADAPTER
- BALUSTER FORMING DIES (1, 4, 8, 9, 10, 11, 20)
- BENDING TOOL FOR LARGE RADIUS
- PROMECAM PUNCH HOLDER
- CLAMP FORMING DIES
- FOLDING PUNCHES (D22, D40, D70)
- PROMECAM PUNCHES
- FOLDING DIES
