NEW GEKA USA BENDICROP 50

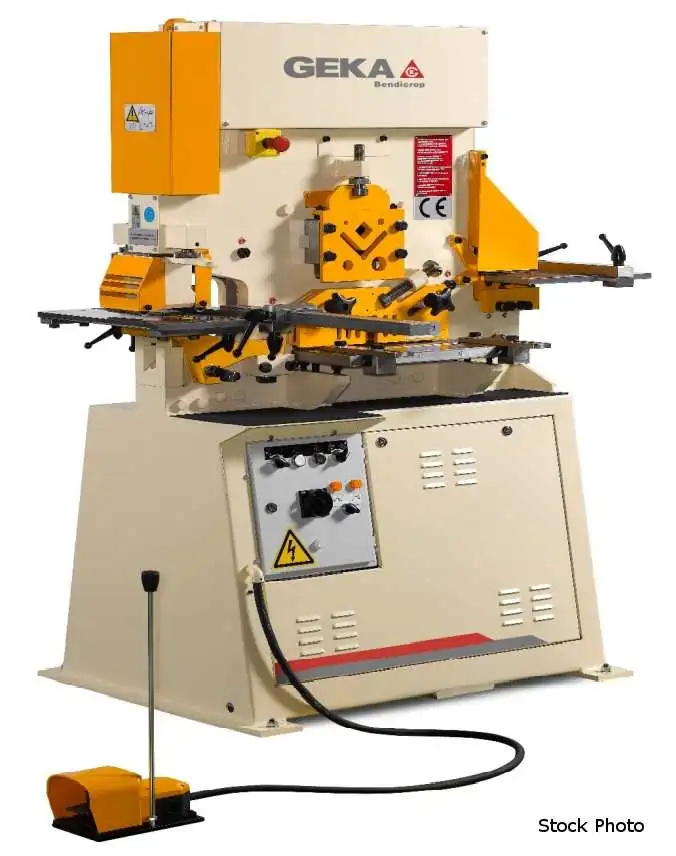

GEKA (NEW) MODEL BENDICROP 50 UNIVERSAL IRONWORKER
WITH 5 WORK STATIONS

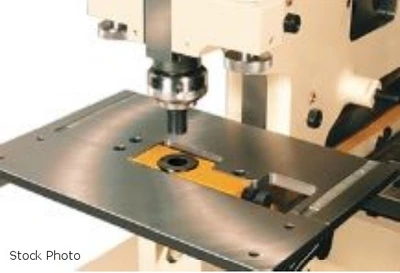

PUNCHING STATION
- 55 TON CAPACITY
- 1-1/16" DIAMETER IN 1/2"
- 1-1/4" DIAMETER ROUND PUNCH
- 6-7/8" THROAT
- 37-3/16" WORKING HEIGHT
- SINGLE STAGE FOOT PEDAL
- STEEL GUARDS WITH SLOTS AND ROLLERS
- EMERGENCY STOP
- PUNCHES
8/31 FOR UP TO 1-3/16" DIAMETER
8/32 FOR UP TO 1-1/4" DIAMETER
- DIES
NO 5 FOR UP TO 1-1/4" DIAMETER
- WHEN PUNCHING LARGE U, I AND T PROFILES
CAN REMOVE GOOSE NECK DIE BLOCK WITH SUPPORTS
CAPACITY IS REDUCED TO 30 TONS
- GAUGING TABLE WITH INLAID INCH SCALES
- FRONT TO BACK MOVEMENT ON ROLLERS
- FULL STROKE OR JOG MODE FOR INCHING OF THE TOOL
W/AUTO RETURN WHEN LOWER LIMIT SWITCH IS TRIGGERED
- QUICK-CHANGE PUNCH HOLDER

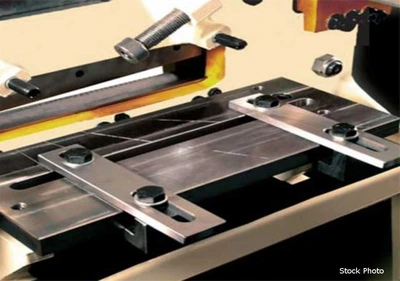

FLAT SHEARING STATION
- 34" WORKING HEIGHT
- 14" BLADE
- 14" X 3/8" AT 2 DEGREE RAKE ANGLE
- 14" X 9/16" AT 4 DEGREE RAKE ANGLE
- MITERING GRADUATIONS INSCRIBED IN THE TABLE
- 2 ADJUSTABLE GUIDE BARS
- MANUAL HOLD DOWN WITH ACCESS FOR SHEARING LEGS
OF ANGLES
- ANTI-TWIST DEVICE FOR FLATTER SHEARED PIECES

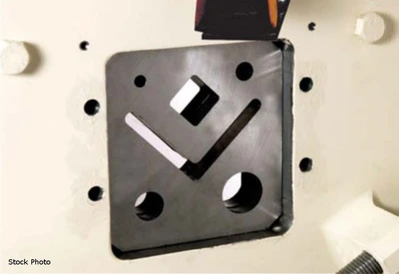

ANGLE AND SECTIONS SHEARING STATION
- 55 TON CAPACITY
- 42-5/8" WORKING HEIGHT
- 3" X 3" X 5/16" CAPACITY
- OPENINGS FOR 3/8", 9/16", 7/8" 1-3/8" ROUND
- OPENING FOR 1-1/8" SQUARE
- CAN SHEAR BOTH LEGS OF ANGLE AT THE SAME TIME
- "NON-DEFORM CUT" WITH NO MATERIAL LOSS

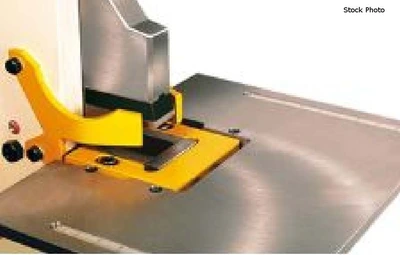

NOTCHING STATION - RECTANGULAR
- 1-9/16" WIDE
- 3-1/2" DEEP
- 3/8" THICK
- 40-1/4" WORKING HEIGHT
- GAUGING TABLE WITH INLAID INCH SCALES
- FRONT TO BACK MOVEMENT ON ROLLERS
- SECTION IS PROTECTED WITH A HINGED GUARD
- EMERGENCY STOP

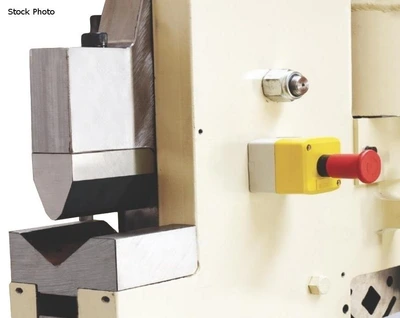

BENDING STATION
- 51-1/4" WORKING HEIGHT
- 3/8" THICKNESS CAPACITY
- 4" DEPTH
- 1-5/8" AND 2-3/4" VEE DIES
- EASY CHANGE OF LOWER DIE (WITH NO TOOLS)
- MICROMETER FINE ADJUSTMENT OF STROKE DEPTH
- FOOT PEDAL WITH SAFETY SYSTEM
- SECTION IS PROTECTED WITH A HINGED GUARD

FEATURES
- 40" AUTOMATIC CUT-TO-LENGTH STOP
- 10 SETS (YOU CHOOSE) FROM 1/8" TO 1-1/4" ROUND
WITH 1/32" CLEARANCE
- TOOL KIT WITH OPEN-END WRENCH, SPANNER WRENCH,
HEX KEYS, GREASE GUN AND PUNCH HOLDERS
- MANUAL AND PARTS LIST

7.5 HP, SINGLE PHASE
220 VOLTS
Power: 220 (Single)
