| Dimensions | 71 X 30 X 60 | 71 X 30 X 60 |
| Weight | 1,212 | 1,212 |

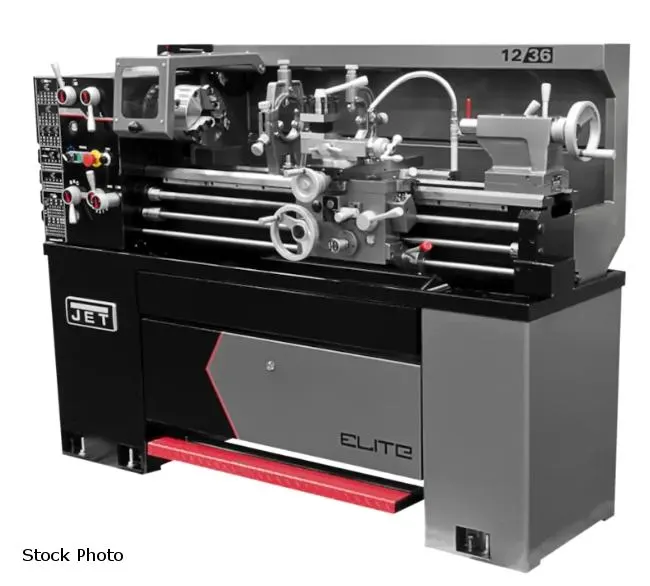

JET (NEW) MODEL E-1236VS ELITE 12 X 36 EVS LATHE
WITH COLLET CLOSER
12" SWING OVER BED
7-5/16" SWING OVER CROSS SLIDE
17-1/2" SWING THROUGH GAP
9-1/2" GAP
36" BETWEEN CENTERS
1-9/16" SPINDLE BORE
D1-4 SPINDLE MOUNT
MT5 SPINDLE TAPER WITH SLEEVE
0 - 2,000 RPM SPINDLE SPEEDS
50 LONGITUDINAL AND CROSS FEEDS
0.0016-0.046 IPR LONGITUDINAL FEEDS
0.0005-0.015 IPR CROSS FEEDS
34 INCH THREADS
2-56 TPI INCH THREADS
33 METRIC THREADS
0.5 TO 12 METRIC THREADS
1/2" X 1/2" MAXIMUM TOOL SIZE
3-1/2" COMPOUND SLIDE TRAVEL
4" TAILSTOCK SPINDLE TRAVEL
MT3 TAILSTOCK SPINDLE TAPER

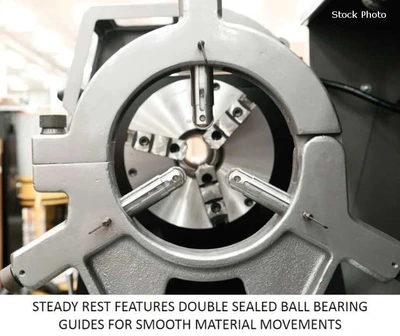

1/4" TO 2-1/2" STEADY REST
7-1/2" BED WIDTH
EVS DRIVE
NEWALL DP700 DRO
2 HP, 230 VOLT MOTOR - 3 PHASE
FEATURES
- CHUCK GUARD
- 4-POSITION CARRIAGE STOP
- INVERTER DRIVE SYSTEM FOR INF. VARIABLE SPEEDS
- FRONT-FACING CHIP PAN
- 2-SPEED GEARBOX

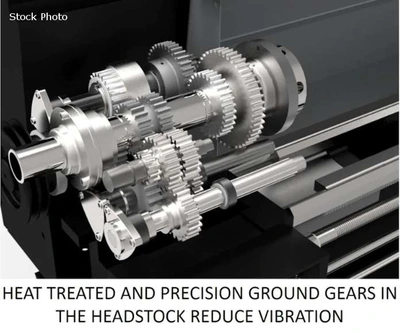

- HARDENED AND GROUND GEARS IN HEADSTOCK
- INTEGRATED LOCKING TOOL CABINET IN STAND
- LED RPM READOUT FOR PRECISE TURNING SPEEDS
- COLLET CLOSER
Power: 230 (3-Phase)
