NEW HANS LASER P12026D - 6000W HANS

HANS LASER (NEW) MODEL P12026D FIBER TUBE LASER 6 KW HANS

40' TUBE
6 KW HANS FIBER RESONATOR WITH WATER CHILLER
0.787" - 10.2" TUBE OD OR SQUARE
511.81" X AXIS
10.63" Y AXIS
7.87" Z AXIS
+/- 0.0012 X-Y AXIS POSITION ACCURACY
+/- 0.0012 X-Y AXIS REPEATABILITY
157" UNLOADING LENGTH
1,100 LB LOADING WEIGHT
3937 IPM X/Y POSITIONING SPEED
1.0 G FORCE ACCELERATION
AUTOMATIC TUBE LOADER
IP54 POWER PROTECTION
HANS 701P CONTROLLER
17" TOUCHSCREEN
LANTEK ROTARY PROGRAM SOFTWARE - 1 SEAT
SIEMENS DRIVE AND SERVO SYSTEM

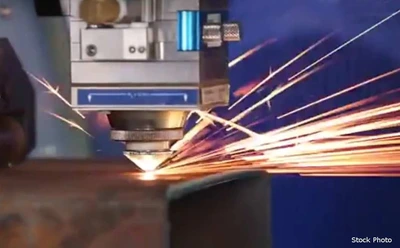

HANS LASER AUTO-FOCUS CUTTING HEAD
AUTO LUBRICATION SYSTEM
STRESS-RELIEVED FRAMES MACHINED AS 1 UNIT
VOLTAGE STABILIZER AND TRANSFORMER AS REQUIRED
DONALDSON DUST COLLECTOR - 6 FILTERS
AIR COMPRESSOR

CLASS 1 FDA CERTIFIED
2 YEARS PARTS AND LABOR WARRANTY

OPTIONS AVAILABLE - PRICE ON REQUEST
- AIR COMPRESSOR SYSTEM UPGRADE
- SMALL TUBE OPTION
- SEMI-AUTOMATIC LOAD SYSTEM
- ADDITIONAL LANTEK SOFTWARE SEAT
- LANTEK SOFTWARE TRAINING
- UL LISTING CERTIFICATE FOR LASER
Power: 380 (3-Phase)
