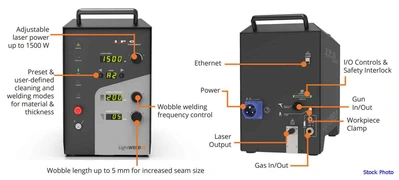

NEW IPG PHOTONICS LIGHTWELD XC 1500

IPG (NEW) MODEL LIGHTWELD XC (EXTRA CLEANING)
1500 HAND-HELD LASER WELDING CLEANING SYSTEM

1500 W LASER POWER
2500 W HIGH PEAK POWER

SINGLE-SIDED WELD THICKNESS
- 4 MM (5/32") STEEL- STAINLESS, GALVANIZED, MILD
- 4 MM (5/32") ALUMINUM
- 1 MM (3/64") COPPER

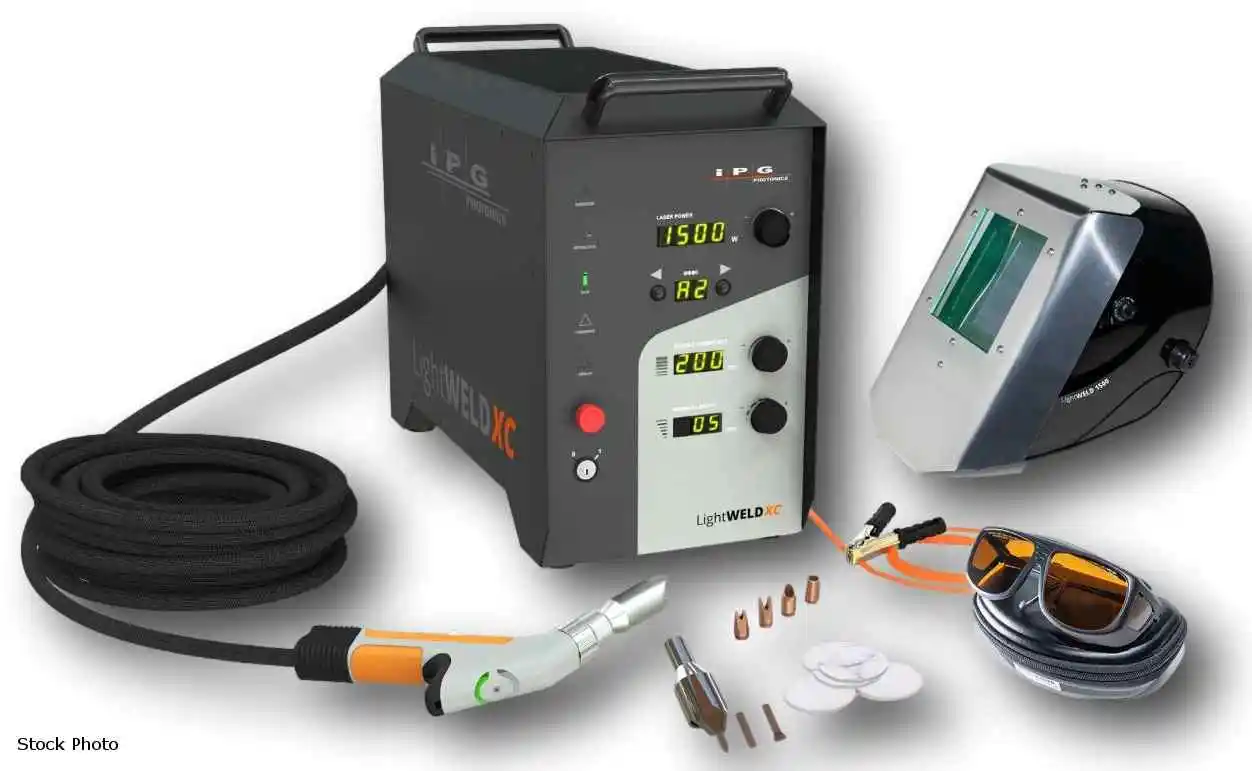

INCLUDES
- AIR-COOLED, COMPACT, PORTABLE UNIT
- IPG LASER WELDING GUN WITH 32' CABLE
- GROUNDING WORKPIECE CLAMP WITH 16' CABLE
- WELDING HELMET WITH IR SHIELD
- 2 CLEANING NOZZLES
- 3 CLEANING NOZZLE INSERTS
- 4 WELDING NOZZLE TIPS
- LASER SAFETY GLASSES OD 7+
CHOOSE STANDARD, LARGE FIT OVER OR ADJUSTABLE
- 10' CAT 6 ETHERNET CABLE
- 5 COVER SLIDES
- USER'S GUIDE

FEATURES
- HIGH SPEED, FAST WELDING
- HIGHER QUALITY/MORE CONSISTENT THAN MIG OR TIG
NO DISTORTION, UNDERCUT OR BURN THROUGH
- MINIMAL HEAT-AFFECTED ZONE
- EASY TO SET UP AND EASY TO USE
- ENHANCED MATERIAL CAPABILITY - CAN PROCESS
METALS WITH DISSIMILAR THICKNESSES AND LOW OR HIGH
ELECTRICAL CONDUCTIVITY
- RESULTS IN LESS GRINDING, POLISHING SCRAP
- CONTROL PANEL WITH 74 STORED PRESET AND USER-
DEFINED PROCESS PARAMETERS
- HANDHELD GUN
COMPACT, LIGHT-WEIGHT, ERGONOMIC, AND BALANCED
- CW, PULSED AND WOBBLE OPERATING MODES

220 VOLT, SINGLE PHASE

CLASS IV SAFETY FEATURES
- KEY SWITCH CONTROL OF LASER SOURCE
- EMERGENCY STOP BUTTON
- FIBER LASER INTERLOCK
- 2-STEP TRIGGER (ENABLE FIRE)
- INTERLOCK TURNS OFF POWER IF WELDING HEAD IS
NOT IN CONTACT WITH WELDED PARTS

XC FEATURES
- 2500 W PEAK POWER IN CLEANING MODE
- SET OF 3 NOZZLES FOR WIDE-ANGLE SCANNING
- ADJUSTABLE CLEANING SCAN LENGTH UP TO 15 MM
- PRE-WELD CLEAN OR POST-WELD CLEAN WITHOUT THE
USE OF ABRASIVES OR CHEMICALS
- REMOVE OXIDES, RUST, OIL, GREASE, SOOT AND
WELD-RELATED DEBRIS
- POLISH AWAY HEAT DISCOLORATION

OPTIONS AVAILABLE - PRICE ON REQUEST

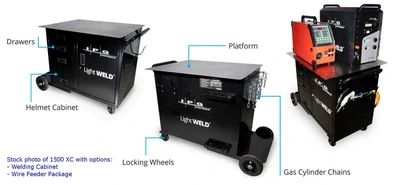

- WELDING CABINET
- WIRE FEEDER PACKAGE
Power: 220 (Single)
