NEW IPG PHOTONICS LIGHTWELD 1500

IPG (NEW) MODEL LIGHTWELD 1500 HAND-HELD LASER
WELDING SYSTEM

1500 W LASER POWER
2500 W HIGH PEAK POWER
SINGLE-SIDED WELD THICKNESS
- 4 MM (5/32") STEEL- STAINLESS, GALVANIZED, MILD
- 4 MM (5/32") ALUMINUM
- 1 MM (3/64") COPPER

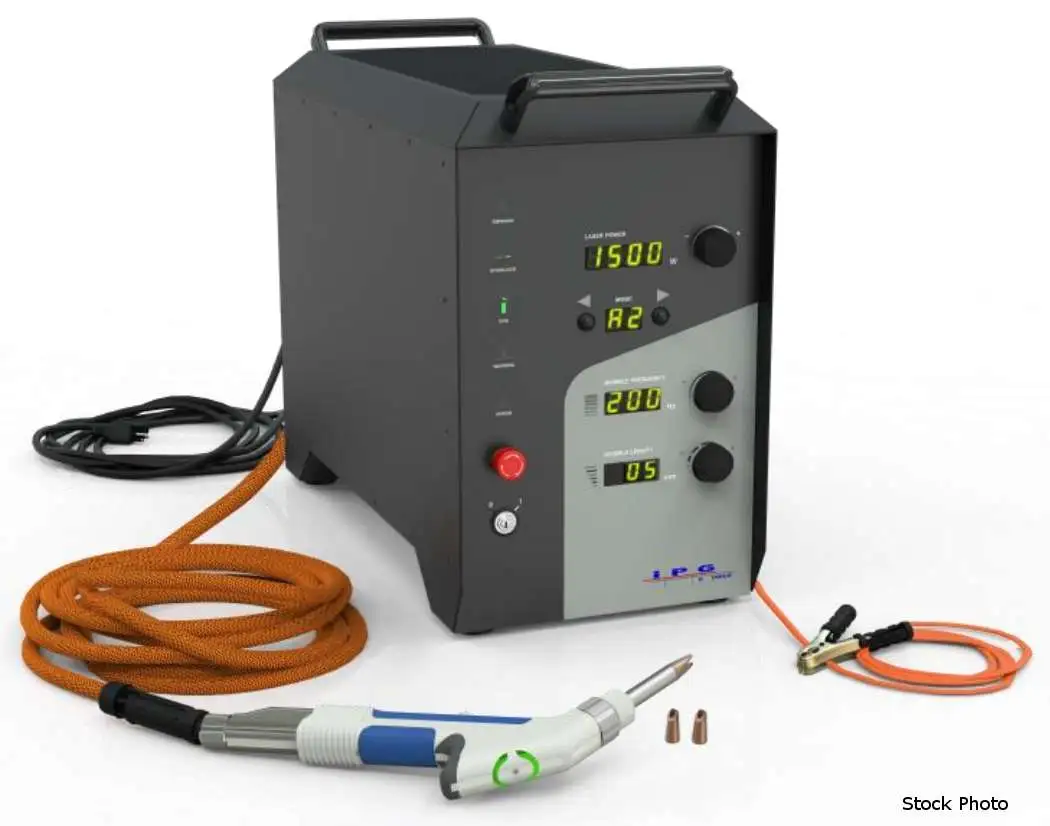

INCLUDES

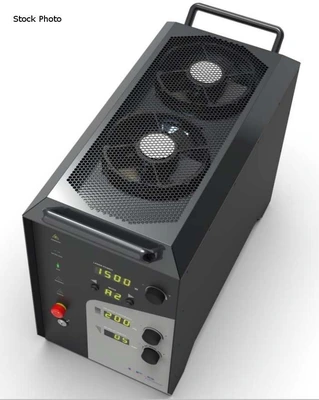

- AIR-COOLED, COMPACT, PORTABLE UNIT
- IPG LASER WELDING GUN WITH 32' CABLE
- GROUNDING WORKPIECE CLAMP WITH 16' CABLE
- 4 WELDING NOZZLE TIPS
- USER'S GUIDE

220 VOLT, SINGLE PHASE

FEATURES
- HIGH SPEED, FAST WELDING
- HIGHER QUALITY/MORE CONSISTENT THAN MIG OR TIG
NO DISTORTION, UNDERCUT OR BURN THROUGH
- MINIMAL HEAT-AFFECTED ZONE
- EASY TO SET UP AND EASY TO USE
- ENHANCED MATERIAL CAPABILITY - CAN PROCESS
METALS WITH DISSIMILAR THICKNESSES AND LOW OR HIGH
ELECTRICAL CONDUCTIVITY
- RESULTS IN LESS GRINDING, POLISHING SCRAP

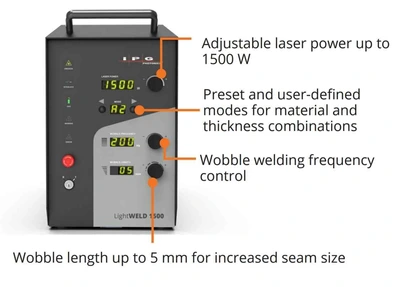

- CONTROL PANEL WITH 74 STORED PRESET AND USER-
DEFINED PROCESS PARAMETERS

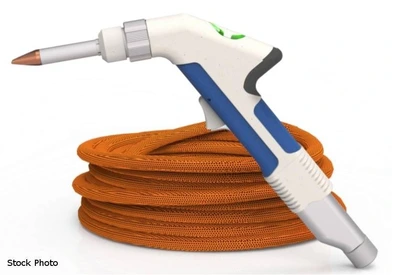

- HANDHELD GUN
COMPACT, LIGHT-WEIGHT, ERGONOMIC, AND BALANCED
- CW, PULSED AND WOBBLE OPERATING MODES

CLASS IV SAFETY FEATURES
- KEY SWITCH CONTROL OF LASER SOURCE
- EMERGENCY STOP BUTTON
- FIBER LASER INTERLOCK
- 2-STEP TRIGGER (ENABLE FIRE)
- INTERLOCK TURNS OFF POWER IF WELDING HEAD IS
NOT IN CONTACT WITH WELDED PARTS
Power: 220 (Single)
