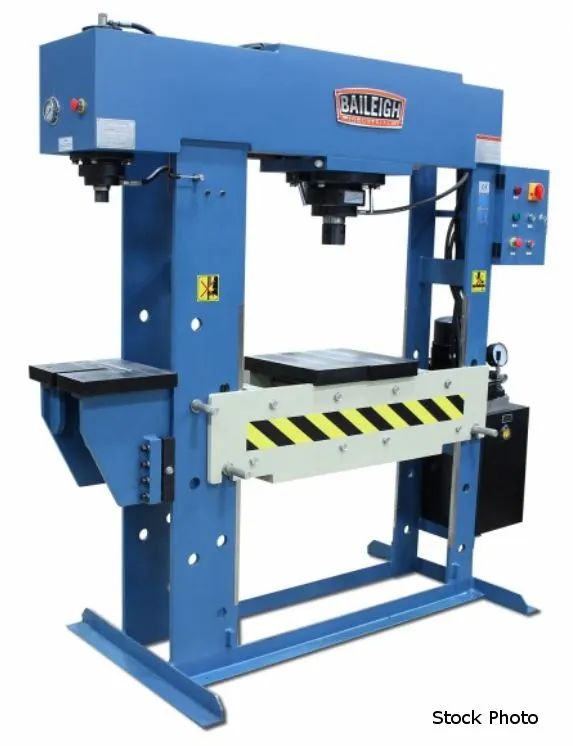

NEW BAILEIGH HSP-60M-C

BAILEIGH (NEW) MODEL HSP-60M-C 2-STATION
HYDRAULIC PRESS

2 STATIONS
- 60 TON CAPACITY MAIN PRESS
- 24 TON CAPACITY SIDE PRESS

WORKING SPEED
- 0.32"/SECOND MAIN PRESS
- 0.75"/SECOND SIDE PRESS
0.303"/SECOND RETURN SPEED
41.3" WORKING WIDTH - MAIN PRESS
PISTON HEAD DIAMETER
- 3.15" MAIN PRESS
- 1.77" SIDE PRESS
7.5" CYLINDER MOVES LEFT AND RIGHT WITHIN FRAME
CYLINDER STROKE
- 11.8" MAIN PRESS
- 11.75" SIDE PRESS
MAIN CYLINDER IS MOVABLE
CYLINDER DIAMETER
- 7.55" MAIN PRESS
- 3.95" SIDE PRESS
DISTANCE FROM TABLE TO RAM
- 8" TO 38" MAIN PRESS
- 9.84" TO 38.97" SIDE PRESS
13 GALLON OIL CAPACITY
1.85 GALLONS/MINUTE PUMP SPEED
5.25 HP, 220 VOLT, 3 PHASE

FEATURES
- CONTROLLED BY PISTON-STYLE HYDRAULIC PUMP
- CYLINDER CAN MOVE LEFT RIGHT FOR OFF-CENTER
PROJECTS
- PRESSURE GAUGE
- WELDED STEEL STRUCTURE
- 2-PIECE V-BLOCK SET
- 1 YEAR PARTS WARRANTY
- LIFETIME TECHNICAL PHONE SUPPORT
Power: 220 (3-Phase)
