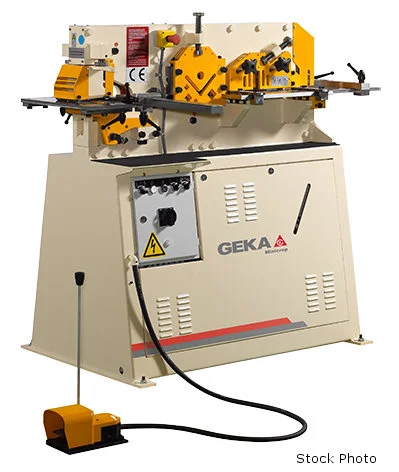

NEW GEKA USA MINICROP

GEKA (NEW) MINICROP SINGLE CYLINDER UNIVERSAL
IRONWORKER

PUNCHING STATION
- 50 TON CAPACITY
- 1-1/16" DIAMETER IN 1/2"
- 1-1/16" DIAMETER ROUND PUNCH
- 6-5/8" THROAT
- 39-13/16" WORKING HEIGHT
- SINGLE STAGE FOOT PEDAL
- STEEL GUARDS WITH SLOTS AND ROLLERS
- EMERGENCY STOP
- PUNCHES
5/27 FOR UP TO 1-1/16" DIAMETER
- WHEN PUNCHING LARGE U, I AND T PROFILES
CAN REMOVE GOOSE NECK DIE BLOCK WITH SUPPORTS
CAPACITY IS REDUCED TO 25 TONS
- GAUGING TABLE WITH INLAID INCH SCALES
- FRONT TO BACK MOVEMENT ON ROLLERS
- FULL STROKE OR JOG MODE FOR INCHING OF THE TOOL
- QUICK-CHANGE PUNCH HOLDER

FLAT SHEARING STATION
- 40-1/8" WORKING HEIGHT
- 12" BLADE
- 10" X 3/8" OR 8" X 1/2" CAPACITIES
- MITERING GRADUATIONS INSCRIBED IN THE TABLE
- 2 ADJUSTABLE GUIDE BARS
- MANUAL HOLD DOWN WITH ACCESS FOR SHEARING LEGS
OF ANGLES

ANGLE AND SECTIONS SHEARING STATION
- 60 TON CAPACITY
- 40" WORKING HEIGHT
- 3" X 3" X 5/16" CAPACITY
- 4" X 4" X 3/8" W/INCLUDED SPARE BLADE
W/SLIGHT DISTORTION
- OPENINGS FOR 1-1/8", 5/8" ROUND
- OPENING FOR 1-1/8", 7/8" , 5/8" SQUARE

NOTCHING STATION - RECTANGULAR
- 1-1/2" WIDE
- 2" DEEP
- 1/4" THICK
- 40-1/8" WORKING HEIGHT
- GAUGING TABLE WITH INLAID INCH SCALES
- FRONT TO BACK MOVEMENT ON ROLLERS
- SECTION IS PROTECTED WITH A GUARD

FEATURES
- 40" AUTOMATIC CUT-TO-LENGTH STOP
- 10 SETS(YOU CHOOSE)FROM 1/8" TO 1-1/16" ROUND
WITH 1/32" CLEARANCE
- TOOL KIT WITH OPEN-END WRENCH, SPANNER WRENCH,
HEX KEYS, GREASE GUN AND PUNCH HOLDERS
- MANUAL AND PARTS LIST

7.5 HP, 3 PHASE
200-208, 220-250, OR 440-500 VOLTS
220 VOLTS, SINGLE PHASE

OPTIONS AVAILABLE - PRICE ON REQUEST
- PUNCHING STATION
OPTIONAL ATTACHMENTS UP TO 4"
PRESS BRAKE ATTACHMENT
URETHANE HOLD DOWN ATTACHMENT
4" OVERSIZE PUNCH ATTACHMENT AND GAUGE TABLE
- ANGLE AND SECTION SHEARING STATION
OPTIONAL BLADES FOR U, T, AND I PROFILES
- NOTCHING STATION
TRIANGULAR NOTCHER W/OPTIONAL GAUGING TABLE
PIPE NOTCHER
SMALL PRESS BRAKE ATTACHMENT
Power: 208, 220, 440 (3-Phase)
