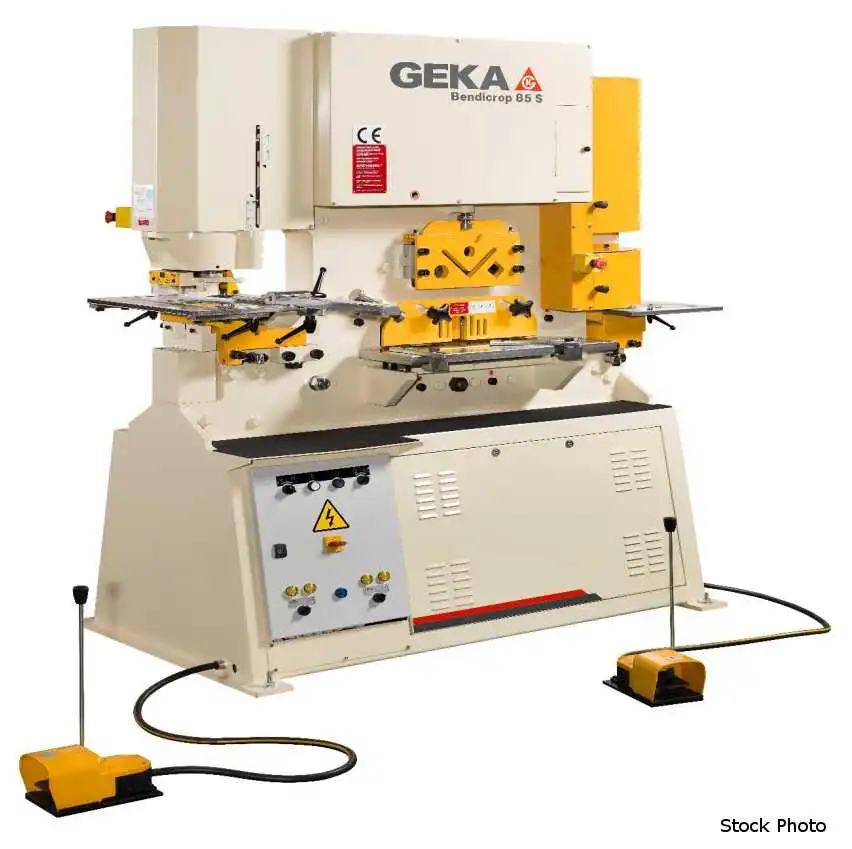

NEW GEKA USA 85S

GEKA (NEW) MODEL BENDICROP 85S UNIVERSAL
IRONWORKER WITH 5 WORK STATIONS

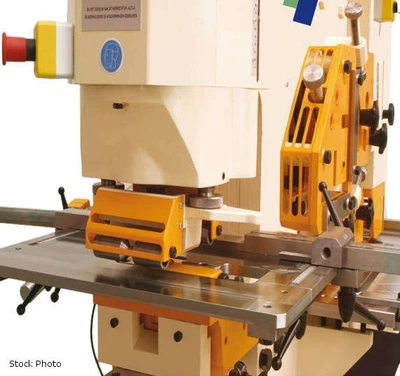

PUNCHING STATION
- 93 TON CAPACITY
- 1-1/2" DIAMETER IN 1/2"
- 1-9/16" DIAMETER ROUND PUNCH
- 12" THROAT
- 43" WORKING HEIGHT
- 2-STAGE FOOT PEDAL W/LOW PRESSURE ON 1ST STAGE
- STEEL GUARDS WITH SLOTS AND ROLLERS
- EMERGENCY STOP
- PUNCHES
8/31 FOR UP TO 1-3/16" DIAMETER
8/32 FOR UP TO 1-1/4" DIAMETER
8/40 FOR UP TO 1-9/16" DIAMETER
- DIES
NO 5 FOR UP TO 1-1/4" DIAMETER
NO 8 FOR UP TO 1-9/16" DIAMETER
- WHEN PUNCHING LARGE U, I AND T PROFILES
CAN REMOVE GOOSE NECK DIE BLOCK WITH SUPPORTS
CAPACITY IS REDUCED TO 30 TONS
- GAUGING TABLE WITH INLAID INCH SCALES
- FRONT TO BACK MOVEMENT ON ROLLERS
- PUNCH SLAG BUCKET
- FULL STROKE OR JOG MODE FOR INCHING OF THE TOOL
W/AUTO RETURN WHEN LOWER LIMIT SWITCH IS TRIGGERED
- GIBBED AND GUIDED PUNCHING CYLINDER
- QUICK-CHANGE PUNCH HOLDER

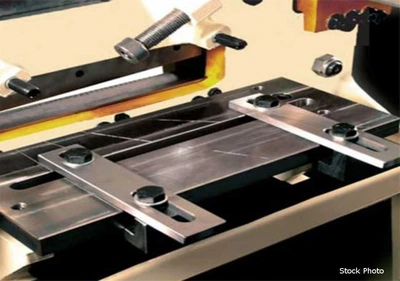

FLAT SHEARING STATION
- 36-3/16" WORKING HEIGHT
- 18-5/8" BLADE
- 18" X 9/16" AT 2.5 DEGREE RAKE ANGLE
- 18" X 5/8" AT 5 DEGREE RAKE ANGLE
- MITERING GRADUATIONS INSCRIBED IN THE TABLE
- 2 ADJUSTABLE GUIDE BARS
- MANUAL HOLD DOWN WITH ACCESS FOR SHEARING LEGS
OF ANGLES
- ANTI-TWIST DEVICE FOR FLATTER SHEARED PIECES

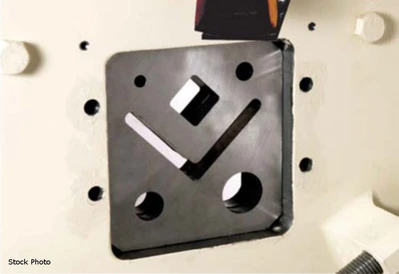

ANGLE AND SECTIONS SHEARING STATION
- 93 TON CAPACITY
- 44-15/16" WORKING HEIGHT
- 4" X 4" X 1/2" CAPACITY
- OPENINGS FOR 1-3/8" AND 1-3/4" ROUND
- OPENING FOR 1-1/2" SQUARE
- CAN SHEAR BOTH LEGS OF ANGLE AT THE SAME TIME
- "NON-DEFORM CUT" WITH NO MATERIAL LOSS

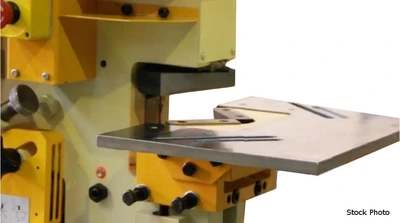

NOTCHING STATION - TRIANGULAR
- 5" WIDE PER SIDE
- 1/2" THICK
- 43-1/8" WORKING HEIGHT
- GAUGING TABLE WITH INLAY INCH SCALES
- SECTION IS PROTECTED WITH A HINGED GUARD
- EMERGENCY STOP

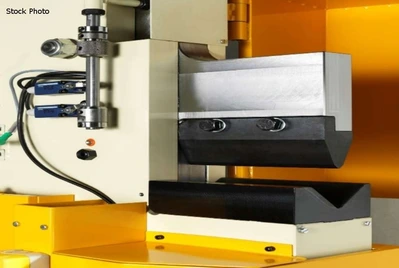

BENDING STATION
- 53-3/8" WORKING HEIGHT
- 1/2" THICKNESS CAPACITY
- 8" DEPTH
- 2" AND 3-1/2" VEE DIES
- EASY CHANGE OF LOWER DIE (WITH NO TOOLS)
- MICROMETER FINE ADJUSTMENT OF STROKE DEPTH
- FOOT PEDAL WITH SAFETY SYSTEM
- SECTION IS PROTECTED WITH A HINGED GUARD

FEATURES
- 2-CYLINDER OPERATION AND 2 REMOTE FOOT PEDALS
SIMULTANEOUS SHEARING AND PUNCHING
- 40" AUTOMATIC CUT-TO-LENGTH STOP
- 10 SETS (YOU CHOOSE) FROM 1/8" TO 1-1/4" ROUND
WITH 1/32" CLEARANCE
- TOOL KIT WITH OPEN-END WRENCH, SPANNER WRENCH,
HEX KEYS, GREASE GUN AND PUNCH HOLDERS
- MANUAL AND PARTS LIST ON USB

7.5 HP, 3 PHASE
220 VOLTS

OPTIONS INCLUDED
- B060U01B006U - 3" X 4.1 LB CHANNEL BLADE SET
- B060U01F006U - 4" X 5.4 LB CHANNEL BLADE SET
- P831D005X016 - TYPE 8/31 ROUND 5/16" PUNCH
- P831D003X008 - TYPE 8/31 ROUND 3/8" PUNCH
- P831D007X016 - TYPE 8/31 ROUND 7/16" PUNCH
- P831D001X002 - TYPE 8/31 ROUND 1/2" PUNCH
- P831D009X016 - TYPE 8/31 ROUND 9/16" PUNCH
- P831D011X016 - TYPE 8/31 ROUND 11/16" PUNCH
- P831D013X016 - TYPE 8/31 ROUND 13/16" PUNCH
- P831D015X016 - TYPE 8/31 ROUND 15/16" PUNCH
- P831D101X016 - TYPE 8/31 ROUND 1-1/16" PUNCH
- P83DD101X004 - TYPE 8/31 ROUND 1-1/4" PUNCH
Power: 200-208, 220-250, 440-500 (3-Phase)
