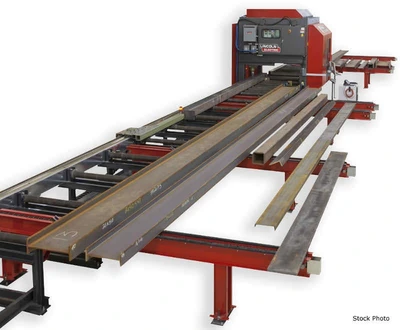

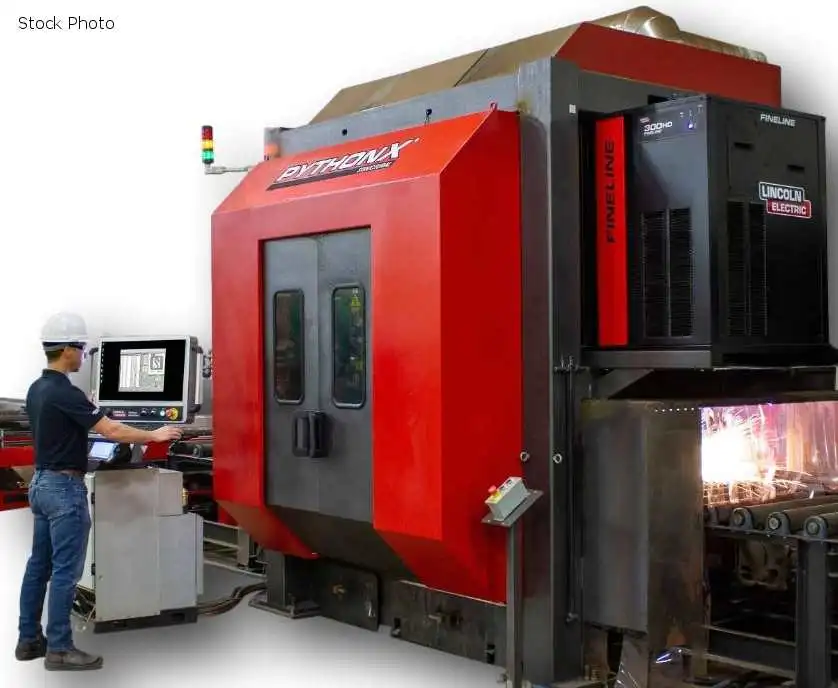

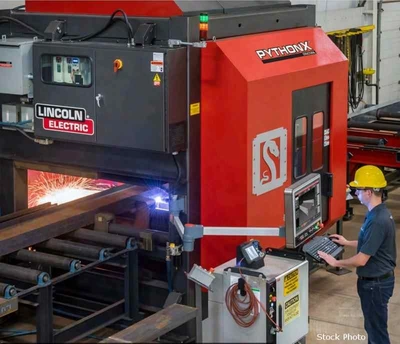

NEW PYTHONX STRUCTURAL

PYTHONX (NEW) MODEL STRUCTURAL ROBOTIC CNC PLASMA
CUTTING SYSTEM FOR STRUCTURAL STEEL FABRICATION

4" TO 48" BEAM WIDTH
18" MAXIMUM FLANGE HEIGHT
2" TO 16" HSS TUBE
3" TO 48" CHANNEL WIDTH
1-1/4" TO 4" CHANNEL HEIGHT
2" X 2" TO 8" X 8" ANGLE
4" TO 48" STRIP WIDTH
1/4" TO 1-3/4" STRIP THICKNESS

EQUIPPED WITH

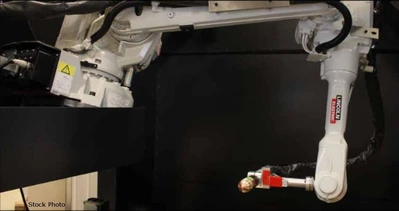

- MULTI-AXIS ROBOTIC ARM WITH COLLISION DETECTION
- MEASURING CART RELAYS THE EXACT POSITION OF THE
WORK PIECE TO THE ROBOT
- 40' INFEED CONVEYOR
- 40' OUTFEED CONVEYOR

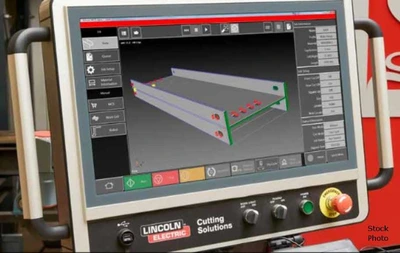

- CONTROL SYSTEM WITH 24" TOUCH SCREEN
- FINELINE 300HD HIGH DEFINITION PLASMA POWER
SOURCE, AUTO GAS CONSOLE, IGNITION AND CABLES
- 48" X 40' CAPACITY

FEATURES
- ALL-IN-ONE SYSTEM THAT AUTOMATES MULTIPLE
STRUCTURAL STEEL FABRICATION PROCESSES
- USES MINIMAL FLOOR SPACE
- AISC BOLT HOLE COMPLIANCE TESTING
- MINIMAL PROCESSING TIME
- SIMPLE TO USE WITH 1 OPERATOR AND 0 PROGRAMMING
- MINIMAL MATERIAL HANDLING
- 4-SIDED TUBE CUTTING WITH BEVEL/MITER
- 24/7 ACCESS TO SUPPORT SPECIALISTS
- REMOTE ACCESS CONTROL WITH ONLINE DIAGNOSTICS
