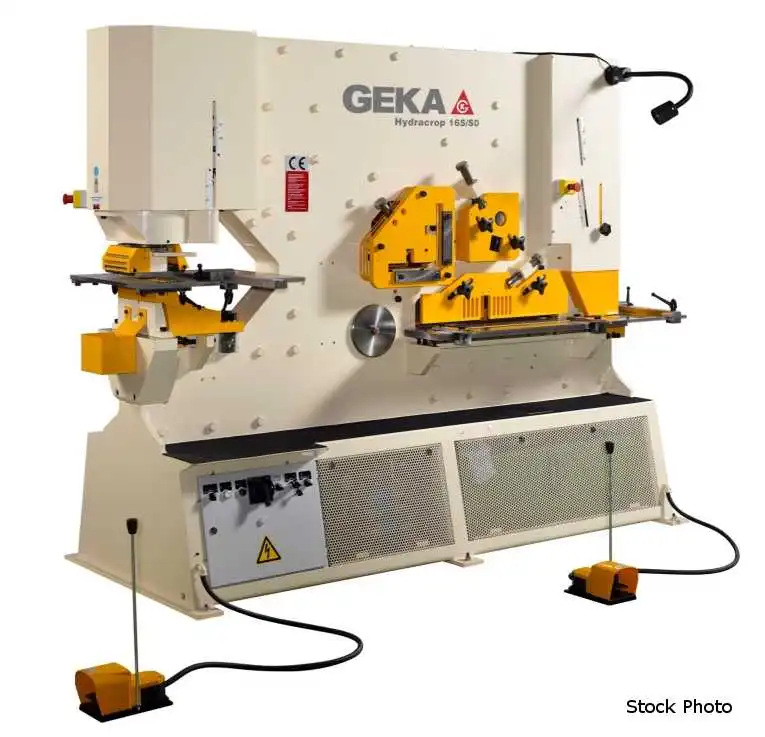

NEW GEKA USA HYDRACROP 165SD

GEKA (NEW) MODEL HYDRACROP 165SD UNIVERSAL
IRONWORKER WITH 5 WORK STATIONS

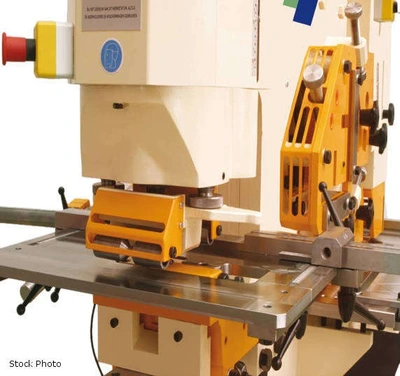

PUNCHING STATION
- 185 TON CAPACITY
- 1-1/2" DIAMETER IN 1-1/4"
- 1-9/16" DIAMETER ROUND PUNCH
- 24" THROAT
- 43-3/4" WORKING HEIGHT
- 2-STAGE FOOT PEDAL (LOW PRESSURE ON 1ST STAGE)
- STEEL GUARDS WITH SLOTS AND ROLLERS
- EMERGENCY STOP
- PUNCHES
10/26 FOR UP TO 1" DIAMETER
10/40 FOR UP TO 1-9/16" DIAMETER
- DIES
NO 5 FOR UP TO 1-1/4" DIAMETER
NO 10 FOR UP TO 1-9/16" DIAMETER
- WHEN PUNCHING LARGE U, I AND T PROFILES
CAN REMOVE GOOSE NECK DIE BLOCK WITH SUPPORTS
CAPACITY IS REDUCED TO 90 TONS
- GAUGING TABLE WITH INLAID INCH SCALES
- FRONT TO BACK MOVEMENT ON ROLLERS
- PUNCH SLAG BUCKET
- FULL STROKE OR JOG MODE FOR INCHING OF THE TOOL
W/AUTO RETURN WHEN LOWER LIMIT SWITCH IS TRIGGERED
- GIBBED AND GUIDED PUNCHING CYLINDER FOR TOOL
ALIGNMENT
- QUICK-CHANGE PUNCH HOLDER

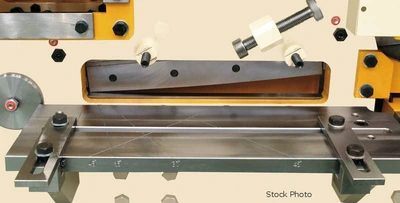

FLAT SHEARING STATION
- 34-1/4" WORKING HEIGHT
- 30-1/2" BLADE
- 30" X 3/4" OR 20" X 1" CAPACITY
- MITERING GRADUATIONS INSCRIBED IN THE TABLE
- 2 ADJUSTABLE GUIDE BARS
- MANUAL HOLD DOWN WITH ACCESS FOR SHEARING LEGS
OF ANGLES

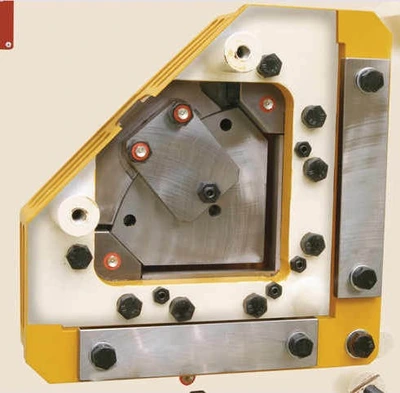

ANGLE SHEARING STATION
- 330 TON CAPACITY
- 44" WORKING HEIGHT
- 8" X 8" X 3/4"CAPACITY
- ANGLES AT 45 DEG MITER (LEG IN) 3" X 3" X 5/16"
- CAN SHEAR BOTH LEGS OF ANGLE AT THE SAME TIME
- "NON-DEFORM CUT" WITH NO MATERIAL LOSS
- VERTICAL AND HORIZONTAL GUIDES FOR SQUARE CUTS

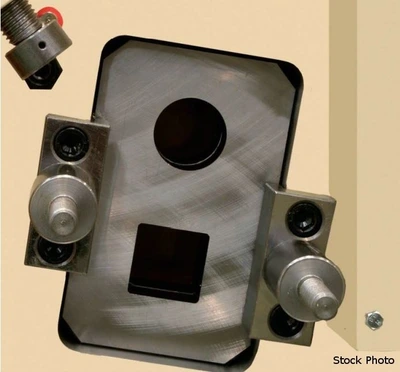

SECTION SHEARING STATION
- 213 TON CAPACITY
- BLADES FOR 3" X 4.1 LB 4" X 5.4 LB CHANNELS
- 9/16", 3/4", 1", 1-3/16" ROUND/SQ BAR OPENINGS
- 9/16", 1", 1-3/16" SQUARE OPENINGS

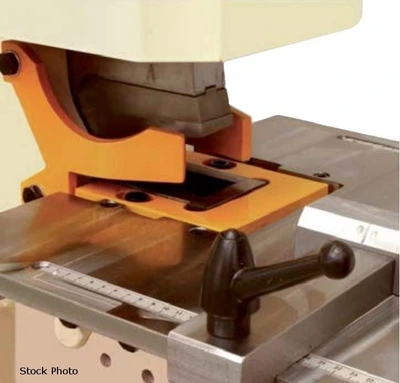

NOTCHING STATION
- 2-1/4" WIDE
- 4-5/16" DEEP
- 5/8" THICK
- 34-1/4" WORKING HEIGHT
- GAUGING TABLE WITH INLAID INCH SCALES
- FRONT TO BACK MOVEMENT ON ROLLERS
- SLIDING GUARD WITH KEYED LOCK OUT FOR SAFETY
- EMERGENCY STOP

FEATURES
- 2-CYLINDER OPERATION AND 2 REMOTE FOOT PEDALS
SIMULTANEOUS SHEARING AND PUNCHING
- MAGNETIC WORK LIGHT
- 40" AUTOMATIC CUT-TO-LENGTH STOP
- 10 SETS (YOU CHOOSE) FROM 1/8" TO 1-1/4" ROUND
WITH 1/32" CLEARANCE
- TOOL KIT WITH OPEN-END WRENCH, SPANNER WRENCH,
HEX KEYS, GREASE GUN, PUNCH HOLDERS, DIE REDUCER,
AND DIE RISER
- MANUAL AND PARTS LIST

20 HP, 3 PHASE
200-208, 220-250, OR 440-500 VOLTS

OPTIONS AVAILABLE - PRICE ON REQUEST
- PUNCHING
4" AND 6" PUNCH ATTACHMENTS
PUNCHES AND DIES
- OFF-SET PUNCH AND DIE HOLDER
OFFSET 1/2" FROM CENTER LINE
13/16" DIAMETER ROUND HOLE
25 TON MAXIMUM
REQUIRES # P9 PUNCHES AND # 1 DIES
- ANGLE SHEARING
8" X 8" X 1" BLADE
- SECTION SHEARING
7" X 12.2 LB CHANNEL
ROUNDS AND SQUARES UP TO 2-3/8"
CUSTOM PROFILES
- NOTCHING
TRIANGULAR NOTCHER WITH GAUGING TABLE
PIPE NOTCHER
PUNCHING ATTACHMENT WITH GAUGING TABLE
Power: 208/220/440 (3-Phase)
